0.96'' IPS TFT WF0096ATYAA3DNN0# (sku WF096-80160FD#0P0-FC)

WF096-80160FD#0P0-FC is a 0.96 inch IPS TFT-LCD display module, resolution 80 x 160 pixels. This 0.96” TFT module is built-in with ST7735S controller IC, it supports 4-wire SPI interface, supply voltage (VCC) range is from 3.0V to 3.6V, with brightness 500 nits (typical value), contrast ratio 800.   This 0.96 inch TFT LCD module is portrait mode with IPS (In-Plane Switching) Panel which having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and having 2:1 aspect ratio. It is ideal for wearable devices, medical devices, etc. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

Go to the Product page

Item- WF096-80160FD#0P0-FC Dimension
Dot Matrix 80xRGBx160(TFT)
Module dimension 13.5x27.95x1.40 mm
Active Area 10.8x21.69 mm
Dot pitch 0.135x0.135 mm
LCD type TFT, normally black, transmissive
Viewing Angle 80/80/80/80
Aspect Ratio 1:2
IC ST7735S
Backlight Type LED, normally white
With /Without TP Without TP
Surface Glare



3.5'' TFT WF35RTIACDNNB# (sku WF35-320240RD#B00-FC)

WF35-320240RD#B00-FC is a diagonal size 3.5 inch TFT-LCD module with resolution QVGA 320x240 pixels. This module is built in with SSD2119 IC; it includes the controller and driver IC functions, supports RGB, SPI, MCU interface, supply voltage (VCI) range from 2.5V to 3.6V. This module is having Anti-Glare surface panel, View Direction 12 o'clock, Gray scale inversion 6 o'clock, and aspect ratio 4:3. WF35R TFT-LCD module is landscape mode with brightness 400 nits (typical value). The module also is available for Resistive Touch Screen and Projected Capacitive Touch Screen optional. WF35R can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

Go to the Product page

Item-WF35-320240RD#B00-FC Dimension
Dot Matrix 320xRGBx240(TFT)
Module dimension 76.84x63.84x3.227 mm
Active Area 70.08x52.56 mm
Dot pitch 0.073x0.219 mm
LCD type TFT, normally white, transmissive
Viewing Angle 12 o'clock
Aspect Ratio 4:3
IC SSD2119
Backlight Type LED, normally white
With /Without TP Without TP/RTP-CTP option
Surface Anti-Glare



3.9'' TFT WF39QTIBSDBG0# (sku WF39-480128QD#007-FC)

WF39-480128QD#007-FC is an extended model of 3.9" WF39B Bar TFT-LCD display built in with SSD1963 controller board plus a 36 pin-out connector which we called Winstar Q series Family. WF39QTIBSDBG0 model is featured with resolution 480x128 pixels and having projected capacitive touch screen (PCAP) on module, it supports digital 8080 family MPU 8bit/16bit interface (MCU interface). The capacitive touch panel IC is CYTMA568 or equivalent. Also, we already defined pin no. 33 ~ 36 as backlight supply on this SSD1963 controller board; therefore, there is no need to design extra backlight circuit. WF39Q model is a color TFT module with PCAP; its luminance is 400 nits; contrast ratio of 500:1. It is an ideal upgrade solution for monochrome STN WH1602L1 to color TFT display with touch screen since both two items have a similar outline dimension of 122.0 x 44.0 mm (PCB outline).

Go to the Product page

Item-WF39-480128QD#007-FC Dimension
Dot Matrix 480xRGBx128(TFT)
Module dimension 122.0x44.0x9.8 mm
Active Area 95.04x25.34 mm
Dot pitch 0.066x0.198 mm
LCD type TFT, normally white, transmissive
Viewing Angle 12 o'clock
Aspect Ratio Bar Type
IC SSD1963 (Digital 8080 MPU 8/16bit)
Backlight Type LED, normally white
With /Without TP With CTP
Surface Glare

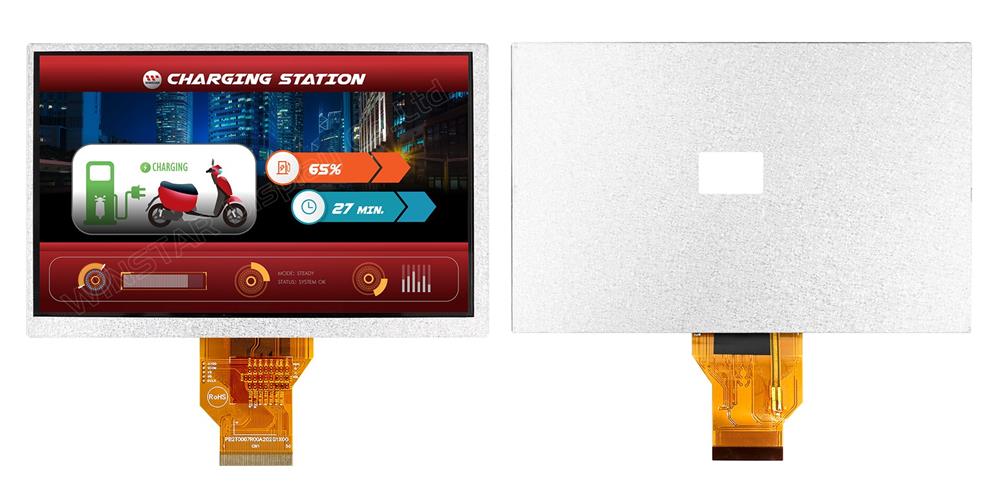

7'' TFT WF70A2TIAGDNN0# (sku WF70-800480A2D#000-FC)

WF70-800480A2D#000-FC is a color TFT LCD with WVGA 800x480 resolution, diagonal size 7 inch. This TFT model is built in with ST-5623 source driver IC and ST-5091 gate driver IC. WF70A2TIAGDNN0 supports RGB interface; it's available for Resistive Touch Screen and Projected Capacitive Touch Screen optional, as well as high brightness options for this model. The supply voltage for logic (VCC) of WF70-800480A2D#000-FC0 is from 3.0V to 3.6V, typical value 3.3V, Anti-Glare surface panel, View Direction 12 o'clock, Gray scale inversion 6 o'clock, and aspect ratio 16:9. It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.

Go to the Product page

ItemWF70-800480A2D#000-FC Dimension
Dot Matrix 800xRGBx480(TFT)
Module dimension 165.0x100.0x5.7 mm
Active Area 154.08x85.92 mm
Dot pitch 0.1926x0.1792 mm
LCD type TFT, normally white, transmissive
Viewing Angle 12 o'clock
Aspect Ratio 16:9
Interface RGB
Backlight Type LED, normally white
With /Without TP Without TP/RTP-CTP option
Surface Anti-Glare

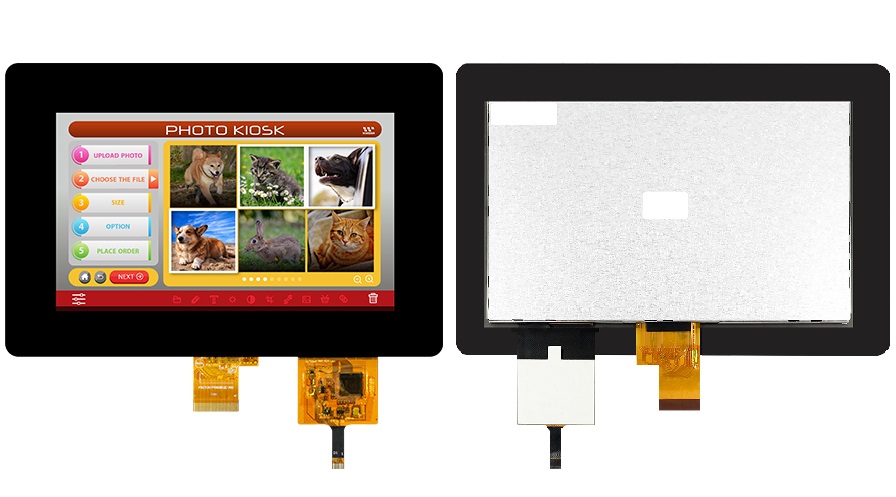

7'' TFT WF70BTIAHLNB0# (sku WF70-1024600BL#008-FC)

WF70-1024600BL#008-FC is a 7 inch TFT LCD display, made of resolution 1024x600 pixels with USB interface Capacitive Touch Screen on module. This TFT module supports LVDS interface, and the capacitive touch panel is built in with ILI2511 driver IC which supports USB and I2C interface. The outline dimension of TFT is 164.802x99.5 mm, as to the dimension of capacitive touch screen is 202x135.50 mm. In order to fit into product application market trend, we design the outline dimension of the cover lens are bigger than TFT modules. This TFT model is having the typical brightness 450 cd/m2, supply voltage (DVDD) range from 3V to 3.6V. This module is having Glare surface panel, view direction 12 o'clock, gray scale inversion 6 o'clock, and aspect ratio 16:9, the operating temperature ranges from -20℃ to +70℃ and storage from -30℃ to +80℃.

Go to the Product page

ItemWF70-1024600BL#008-FC Dimension
Dot Matrix 1024xRGBx600(TFT)
Module dimension 202.0x135.5x8.73 mm
Active Area 154.21x85.92 mm
Dot pitch 0.1506x0.1432 mm
LCD type TFT, normally white, transmissive
Viewing Angle 12 o'clock
Aspect Ratio 16:9
Interface LVDS
Backlight Type LED, normally white
PCAP CTP (USB ILI2511)
Surface Glare

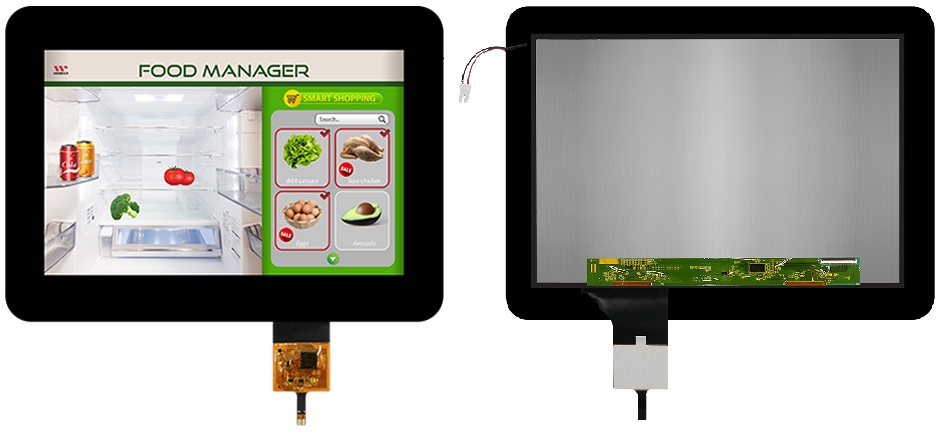

10.1'' TFT WF101FSYAPLNB0# (sku WF101-1280800FL#0SP8B-FC)

WF101-1280800FL#0SP8B-FC is a 10.1 inch High Brightness TFT LCD with USB Capacitive Touch Screen on module. This TFT model is featured with luminance 900 nits (typical value), made of HD resolution 1280x800 pixels. WF101FSYAPLNB0 supports LVDS interface, and the capacitive touch panel is built in with ILI2511 driver IC which supports USB and I2C interface. The outline dimension of TFT is 164.802x99.5 mm, as to the dimension of capacitive touch screen is 202x135.50 mm. In order to fit into the product application market trend, we design the outline dimension of the cover lens are bigger than TFT modules. The power supply voltage (VDD) for WF101FSYAPLNB0 is from 2.3V to 2.7V, typical value 2.5V. This IPS TFT LCD module is featured with High Brightness 800 ~ 900 cd/m2 and wider view angle range of Left:85 / Right:85 / Up:85 / Down:85 degree (typical). It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -20℃ to +70℃.

Go to the Product page

Item-WF101-1280800FL#0SP8B-FC Dimension
Dot Matrix 1280xRGBx800(TFT)
Module dimension 274.5x198.0x9.48 mm
Active Area 216.96x198.0 mm
Dot pitch 0.1695x0.1695 mm
LCD type TFT, normally white, transmissive
Viewing Angle 85/85/85/85
Aspect Ratio 16:9
Interface LVDS
Backlight Type LED, normally white
PCAP CTP (USB ILI2511)
Surface Glare



;
