TST0005R0B4111XXXX03

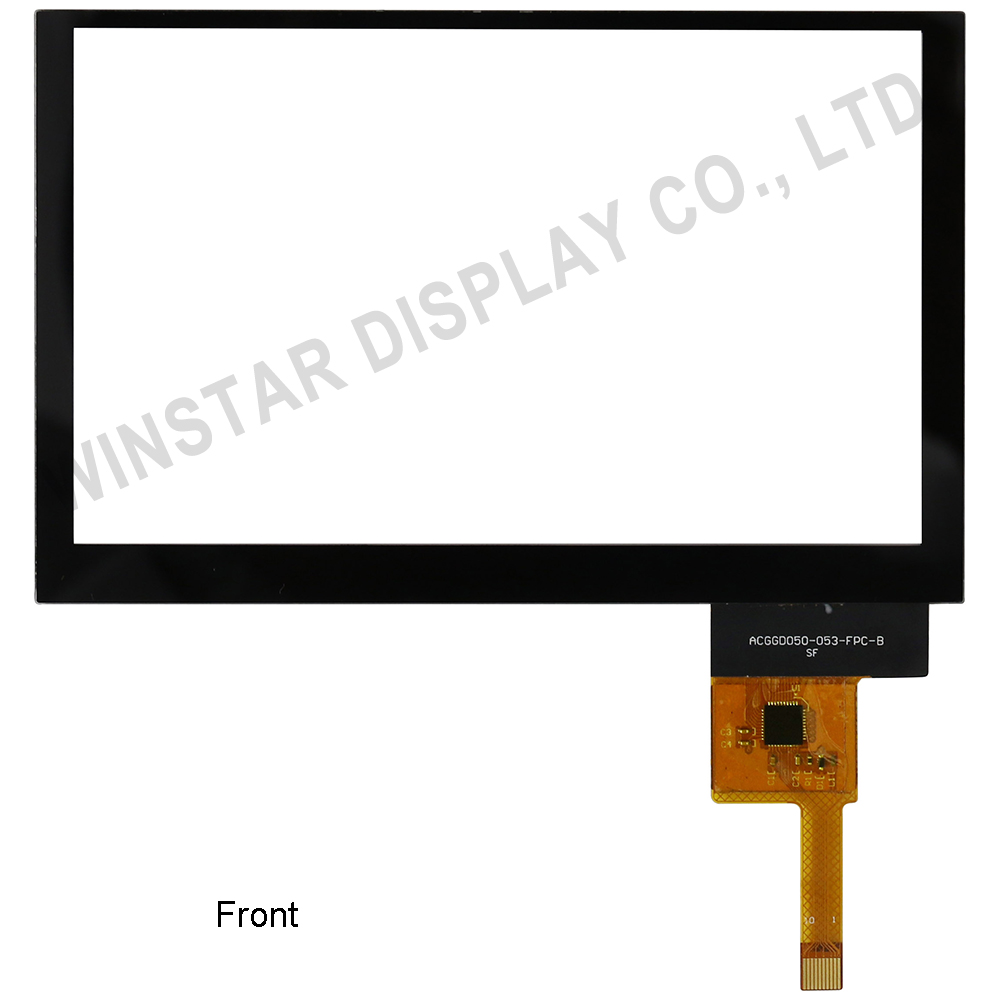

Capacitive (GG) Touch panel 5'', O.D. 119.70x75.20mm, I2C interface (IC FT5426DQ8)

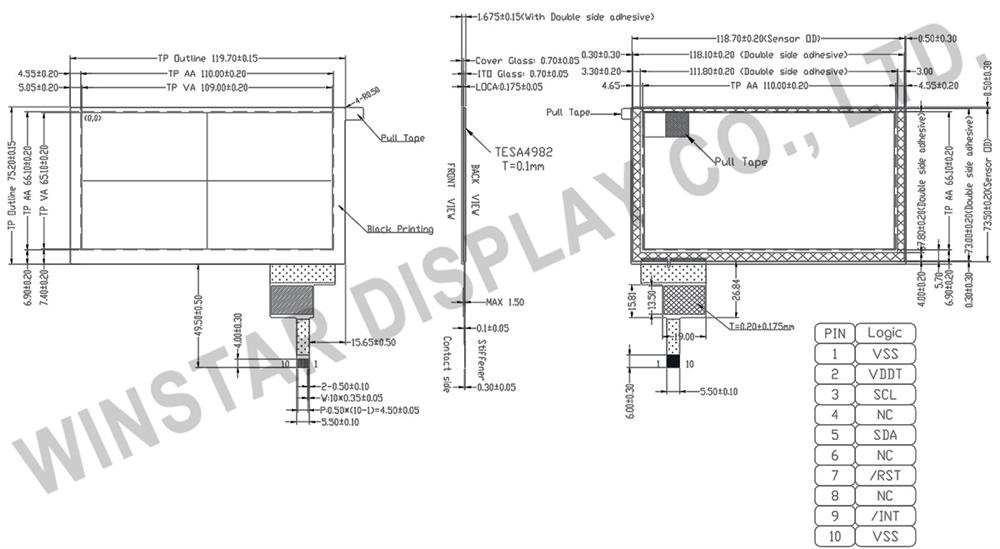

DRAWING

5 inch Touch Screen, 5 inch Touch Panel - Winstar Display

SPECIFICATIONS

Construction:

ConstructionMaterialsComment
Cover lens glass Thickness: 0.7mm
LOCA Adhesive Thickness: 0.175mm
ITO Glass ITO glass Thickness: 0.70mm



Mechanical characteristics:

ItemDescriptionUnit
Outside Dimension 119.7±0.15×75.2±0.15 mm
View Area 109±0.2×65.1±0.2 mm
Active Area 110±0.2×66.1±0.2 mm
Thickness 1.675±0.15(With AD) mm
Input Method Finger
Hardness Of Surface Hard Surface : ≥7H
Accuracy +/-1mm@10mm mm
Support Operation Finger 5 Finger
Channel 10 × 16
Interface I2C
Supported Operating Systems Android2.0-4.2Windows
Controller IC FT5426DQ8



Interface Pin Function

NO.Pin Name
1 VSS
2 VDDT
3 SCL
4 NC
5 SDA
6 NC
7 RST
8 NC
9 INT
10 VSS
SKU: TST0005R0B4111XXXX03
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€19.50
€15.60
€15.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€19.50 excl tax

DRAWING

5 inch Touch Screen, 5 inch Touch Panel - Winstar Display

SPECIFICATIONS

Construction:

ConstructionMaterialsComment
Cover lens glass Thickness: 0.7mm
LOCA Adhesive Thickness: 0.175mm
ITO Glass ITO glass Thickness: 0.70mm



Mechanical characteristics:

ItemDescriptionUnit
Outside Dimension 119.7±0.15×75.2±0.15 mm
View Area 109±0.2×65.1±0.2 mm
Active Area 110±0.2×66.1±0.2 mm
Thickness 1.675±0.15(With AD) mm
Input Method Finger
Hardness Of Surface Hard Surface : ≥7H
Accuracy +/-1mm@10mm mm
Support Operation Finger 5 Finger
Channel 10 × 16
Interface I2C
Supported Operating Systems Android2.0-4.2Windows
Controller IC FT5426DQ8



Interface Pin Function

NO.Pin Name
1 VSS
2 VDDT
3 SCL
4 NC
5 SDA
6 NC
7 RST
8 NC
9 INT
10 VSS
Products specifications
Brand Winstar
Size 5"
Active Area (mm) 110.00x66.10
Interface I2C
Built-in Controller FT5426DQ8
Display Connection FPC per ZIF Connector
Pin Nr. 10
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
