WEA128128W#A05-FC

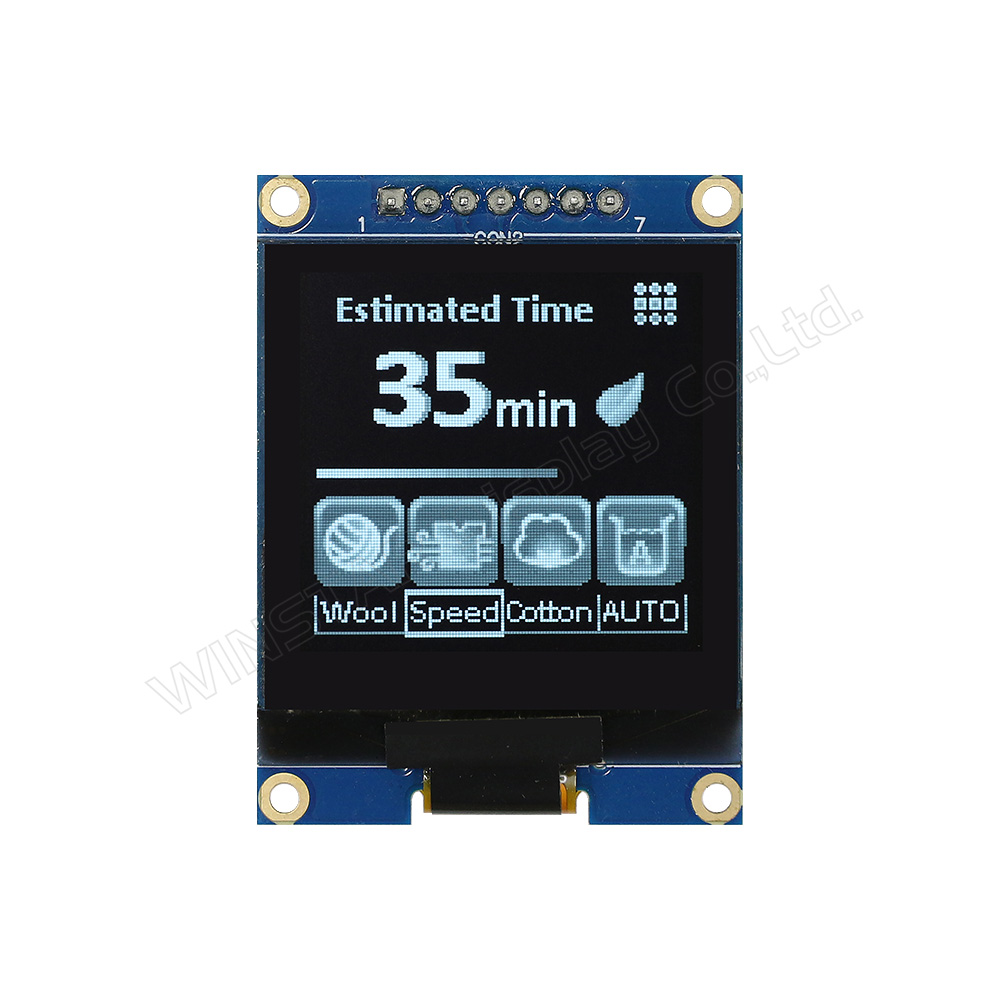

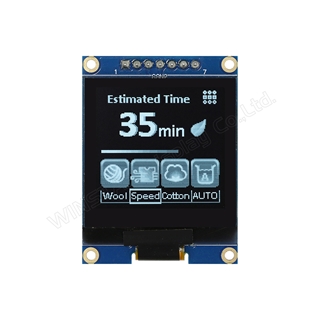

PMOLED 1.5'' Graphic 128x128, White, COG + PCB, 3V, Interface I2C (Pin)

DESCRIPTION

It is the extension item of WEO128128x#A05-FC which is having a PCB board on module; it’s diagonal size 1.5 inch, made of 128x128 pixels. This PCB board with four mounting holes is an easy method for customers to fix modules on their applications. This OLED module is built in with SSD1327 IC; it supports I2C interface, 16 (4bits) gray scale, driving duty 1/128, supply voltage for logic is from 3.3V ~5V, the display with 50% Check board current is 160 mA @3.3VDD (typical value). Operating temperature from -40℃ to +80℃; storage temperature range from -40℃ to +85℃.

This OLED module is suitable for smart home application, medical device, smart control, meter, etc.

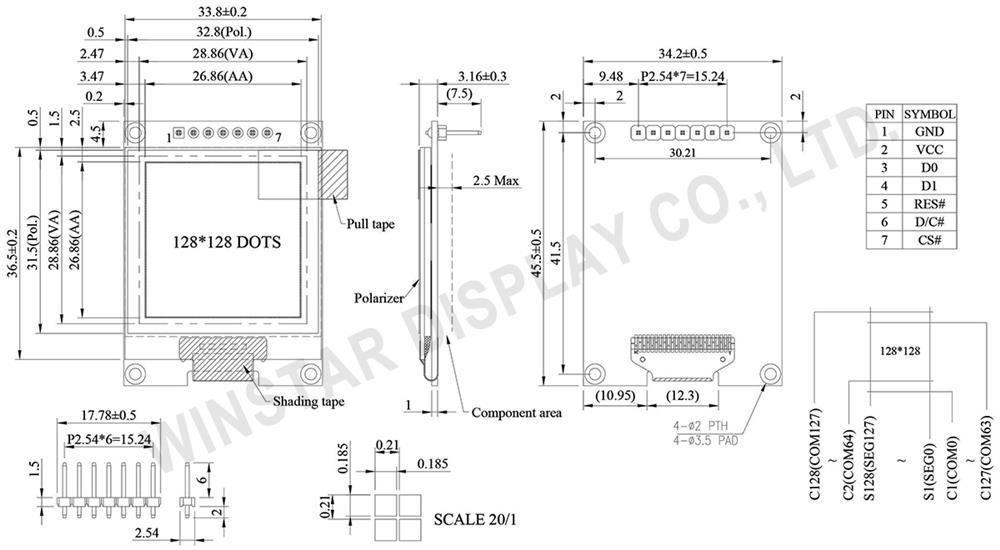

DRAWING

OLED 1.5 inch,1.5 OLED Display, 1.5 inch OLED Display, 1.5 inch OLED Module - WEA128128A



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 GND This is a ground pin.
2 VCC Power supply input
3 SCL The serial clock
4 SDA The serial data
5 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
6 SA0 Slave address selection
7 CS# This pin is the chip select input.
The chip is enabled for MCU communication only when CS# is pulled LOW



General Specification

ItemDimensionUnit
Dot Matrix 128 x 128 Dots
Module dimension 34.2 x 45.5 x 3.16 mm
Active Area 26.86 x 26.86 mm
Pixel Size 0.185 x 0.185 mm
Pixel Pitch 0.210 x 0.210 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/128 Duty
Gray Scale 4 bits
IC SSD1327
Interface I2C
Size 1.5 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VCC 1.65 5.5 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic(3V/5V) VCC 2.8 3.3 5.2 V
Input High Volt. VIH 0.8×VCC VCC V
Input Low Volt. VIL 0 0.2×VCC V
Output High Volt. VOH 0.9×VCC VCC V
Output Low Volt. VOL 0 0.1×VCC V
50% Check Board operating Current ICC VCC=3.3V 160 320 mA


SKU: WEA128128W#A05-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€14.30
€10.50
€10.30
€10.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€14.30 excl tax

DESCRIPTION

It is the extension item of WEO128128x#A05-FC which is having a PCB board on module; it’s diagonal size 1.5 inch, made of 128x128 pixels. This PCB board with four mounting holes is an easy method for customers to fix modules on their applications. This OLED module is built in with SSD1327 IC; it supports I2C interface, 16 (4bits) gray scale, driving duty 1/128, supply voltage for logic is from 3.3V ~5V, the display with 50% Check board current is 160 mA @3.3VDD (typical value). Operating temperature from -40℃ to +80℃; storage temperature range from -40℃ to +85℃.

This OLED module is suitable for smart home application, medical device, smart control, meter, etc.



DRAWING

OLED 1.5 inch,1.5 OLED Display, 1.5 inch OLED Display, 1.5 inch OLED Module - WEA128128A



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 GND This is a ground pin.
2 VCC Power supply input
3 SCL The serial clock
4 SDA The serial data
5 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
6 SA0 Slave address selection
7 CS# This pin is the chip select input.
The chip is enabled for MCU communication only when CS# is pulled LOW



General Specification

ItemDimensionUnit
Dot Matrix 128 x 128 Dots
Module dimension 34.2 x 45.5 x 3.16 mm
Active Area 26.86 x 26.86 mm
Pixel Size 0.185 x 0.185 mm
Pixel Pitch 0.210 x 0.210 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/128 Duty
Gray Scale 4 bits
IC SSD1327
Interface I2C
Size 1.5 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VCC 1.65 5.5 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic(3V/5V) VCC 2.8 3.3 5.2 V
Input High Volt. VIH 0.8×VCC VCC V
Input Low Volt. VIL 0 0.2×VCC V
Output High Volt. VOH 0.9×VCC VCC V
Output Low Volt. VOL 0 0.1×VCC V
50% Check Board operating Current ICC VCC=3.3V 160 320 mA


Products specifications
Brand Winstar
Size 1.5"
Resolution 128x128
Active Area (mm) 26.86x26.86
Dot Size 0.18x0.18
Polarizer Anti-glare
Color White
Power supply 3V
Display Interface I2C
Display IC Controller SSD1327
Structure COG + PCB
Frame Yes
Touch Panel No touch
Display Connection Pin
Pin Nr. 7
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
