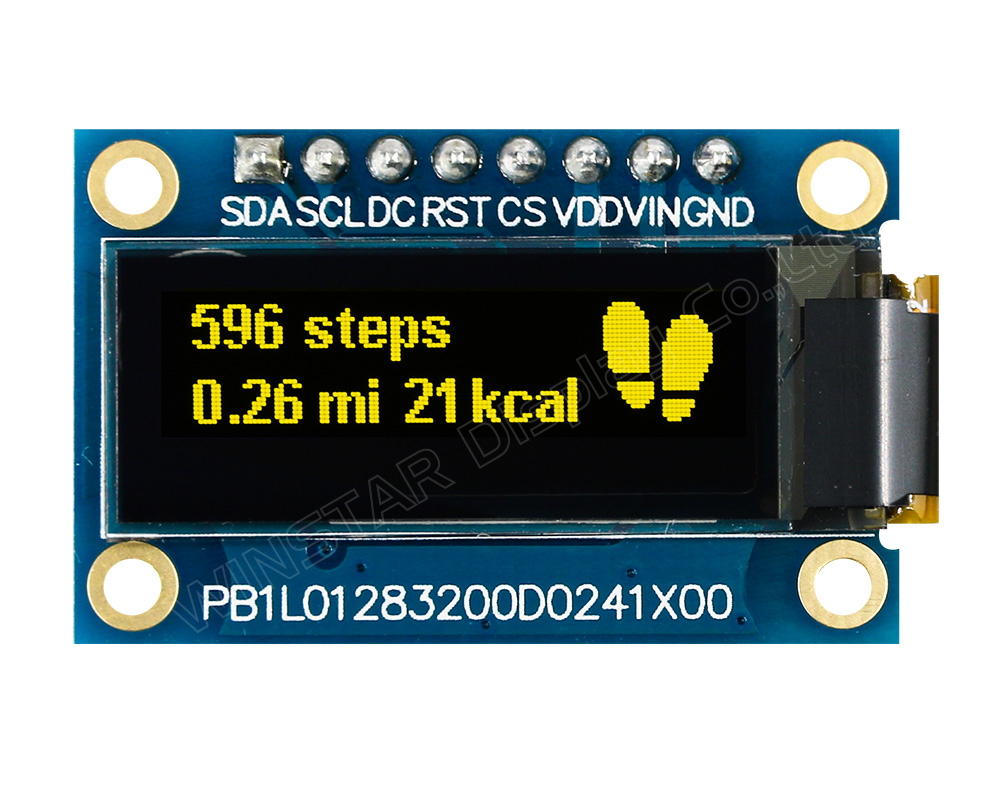

WEA12832L#D00-FC

PMOLED 0.91'' Graphic 128x32, Yellow color, COG + PCB, 3V, Interface SPI (Pin)

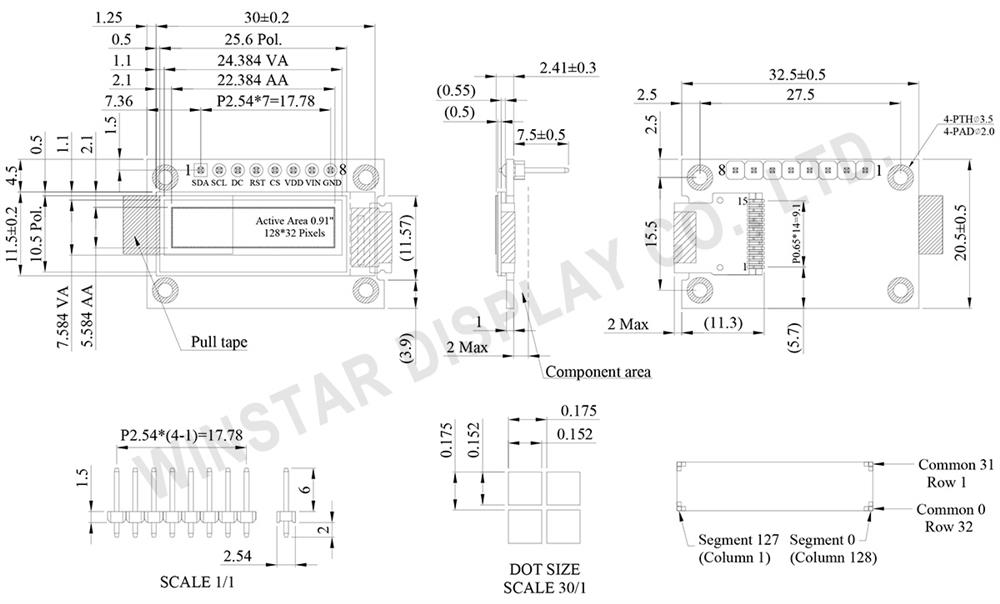

DRAWING

12832 OLED, 0.91 inch SPI, SSD1306 OLED Display (COG PCB) - WEA012832D - Winstar



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 SDA When serial mode is selected, D1 will be the serial data input SDIN and D0 will be the serial clock input SCLK.
2 SCL
3 DC Data/Command Control
This pin is Data/Command control pin..
When the pin is pulled high and serial interface mode is selected, the data at SDIN is treated as data. When it is pulled low, the data at SDIN will be transferred to the command register.
4 RST This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin HIGH (i.e. connect to VDD) during normal operation.
5 CS This pin is the chip select input. (active LOW).
6 VDD 2.8 ~ 3.3V Power supply pin for core logic operation.
7 VIN 4.8 ~ 5.2V Power supply pin for core logic operation.
8 GND This is a ground pin.



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 x 32 Dots
Module dimension 32.5 × 20.5 × 2.41 mm
Active Area 22.384 × 5.584 mm
Pixel Size 0.152 × 0.152 mm
Pixel Pitch 0.175 × 0.175 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/32 Duty
IC SSD1306BZ
Interface SPI
Size 0.91 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD 1.65 3.3 V
Supply Voltage for Logic VIN 4.0 6.0 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic (3V) VDD 2.8 3.0 3.3 V
Supply Voltage for Logic (5V) VIN 4.8 5.0 5.2 V
Input High Volt. VIH 0.8×VDD VDD V
Input Low Volt. VIL 0 0.2×VDD V
Output High Volt. VOH 0.9×VDD VDD V
Output Low Volt. VOL 0 0.1×VDD V
50% Check Board operating Current ICC VDD=3V 13.0 26.0 mA


SKU: WEA12832L#D00-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€4.70
€3.50
€3.40
€3.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€4.70 excl tax

DRAWING

12832 OLED, 0.91 inch SPI, SSD1306 OLED Display (COG PCB) - WEA012832D - Winstar



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 SDA When serial mode is selected, D1 will be the serial data input SDIN and D0 will be the serial clock input SCLK.
2 SCL
3 DC Data/Command Control
This pin is Data/Command control pin..
When the pin is pulled high and serial interface mode is selected, the data at SDIN is treated as data. When it is pulled low, the data at SDIN will be transferred to the command register.
4 RST This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin HIGH (i.e. connect to VDD) during normal operation.
5 CS This pin is the chip select input. (active LOW).
6 VDD 2.8 ~ 3.3V Power supply pin for core logic operation.
7 VIN 4.8 ~ 5.2V Power supply pin for core logic operation.
8 GND This is a ground pin.



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 x 32 Dots
Module dimension 32.5 × 20.5 × 2.41 mm
Active Area 22.384 × 5.584 mm
Pixel Size 0.152 × 0.152 mm
Pixel Pitch 0.175 × 0.175 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/32 Duty
IC SSD1306BZ
Interface SPI
Size 0.91 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD 1.65 3.3 V
Supply Voltage for Logic VIN 4.0 6.0 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic (3V) VDD 2.8 3.0 3.3 V
Supply Voltage for Logic (5V) VIN 4.8 5.0 5.2 V
Input High Volt. VIH 0.8×VDD VDD V
Input Low Volt. VIL 0 0.2×VDD V
Output High Volt. VOH 0.9×VDD VDD V
Output Low Volt. VOL 0 0.1×VDD V
50% Check Board operating Current ICC VDD=3V 13.0 26.0 mA


Products specifications
Brand Winstar
Size 0.91"
Resolution 128x32
Active Area (mm) 22.38x5.58
Dot Size 0.15x0.15
Polarizer Glare
Color Yellow
Power supply 3V
Interface SPI
Built-in Controller SSD1306BZ
Structure COG + PCB
Frame Yes
Touch Panel No touch
Display Connection Pin
Pin Nr. 8
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 0.91"
Resolution 128x32
Active Area (mm) 22.38x5.58
Dot Size 0.15x0.15
Polarizer Glare
Color Yellow
Power supply 3V
Interface SPI
Built-in Controller SSD1306BZ
Structure COG + PCB
Frame Yes
Touch Panel No touch
Display Connection Pin
Pin Nr. 8
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
