WEA12864B#D00-FC

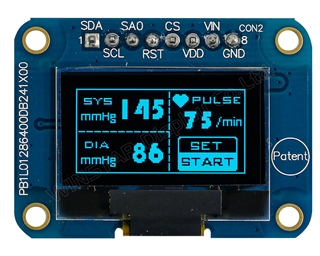

Picture of WEA12864B#D00-FC Picture of WEA12864B#D00-FC Picture of WEA12864B#D00-FC
PMOLED 0.96'' Graphic 128x64, Blue, COG + PCB, 3V, Interface I2C (8 Pin)

DESCRIPTION



Winstar OLED 12864, SSD1306 OLED Display

OLED display module made of 128x64 pixels, diagonal size 0.96 inch. This module is built in with SSD1306 IC, it supports I2C (default), SPI interface optional, VCC 3V /5V, I/O level 5V to 3V, with conversion circuit, 1/64 duty cycle. PCB outline size 38.0x28.5x2.37 mm with mounting holes on board and 8 metal pins on module.

This 128x64 SSD1306 OLED display module is suitable for smart control, industrial control for heater, smart home application, medical device, etc. Operating temperatures from -40℃ to +80℃; torage temperatures range from -40℃ to +85℃.

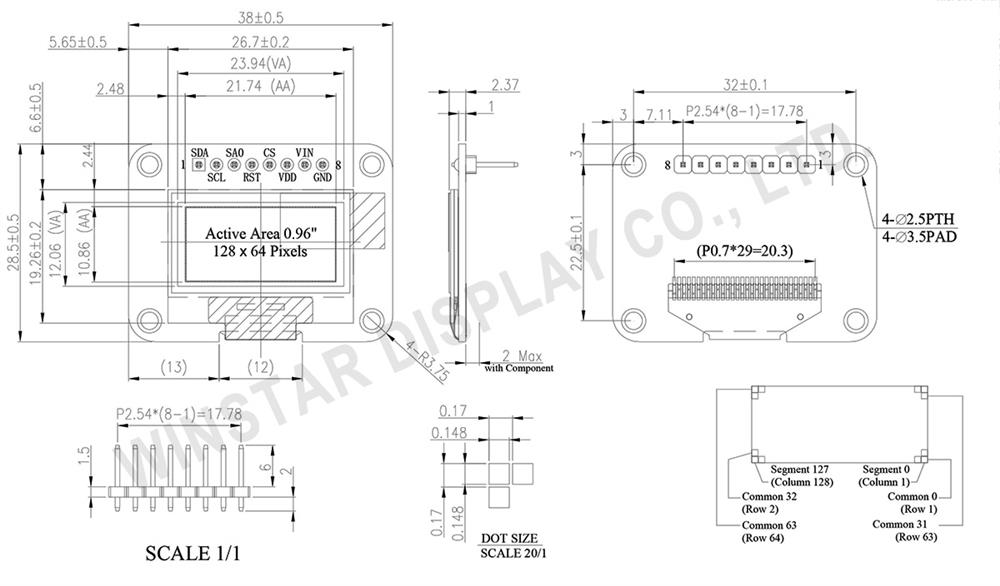

DRAWING

OLED 12864, 12864 OLED, OLED Display Module 12864, SSD1306 OLED, SSD1306 OLED Display, OLED 128x64 SSD1306



SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 SDA When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
2 SCL
3 SA0 In I2C mode, this pin acts as SA0 for slave address selection.
When 3-wire serial interface is selected, this pin must be connected to VSS.
4 RST This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin HIGH (i.e. connect to VDD) during normal operation.
5 CS This pin is the chip select input. (active LOW).
6 VDD 3.0V Power supply pin for core logic operation.
7 VIN 5.0V Power supply pin for core logic operation.
8 GND This is a ground pin.



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 × 64 Dots
Module dimension 38.00 × 28.50 × 2.37 mm
Active Area 21.74 × 10.86 mm
Pixel Size 0.148 × 0.148 mm
Pixel Pitch 0.17 × 0.17 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SSD1306
Interface I2C, SPI
Size 0.96 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD 1.65 3.3 V
Supply Voltage for Logic VIN 4.0 6.0 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic(3V) VDD － 2.8 3.0 3.2 V
Supply Voltage for Logic(5V) VIN － 4.8 5.0 5.2 V
Input High Volt. VIH － 0.8×VDD － VDDIO V
Input Low Volt. VIL － 0 － 0.2×VDD V
Output High Volt. VOH － 0.9×VDD － VDDIO V
Output Low Volt. VOL － 0 － 0.1×VDD V
50% Check Board operating Current ICC Vcc=7.5V － 12.0 22.0 mA
SKU: WEA12864B#D00-FC
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
Price
€6.30
€4.60
€4.50
€4.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€6.30 excl tax

DESCRIPTION



Winstar OLED 12864, SSD1306 OLED Display

OLED display module made of 128x64 pixels, diagonal size 0.96 inch. This module is built in with SSD1306 IC, it supports I2C (default), SPI interface optional, VCC 3V /5V, I/O level 5V to 3V, with conversion circuit, 1/64 duty cycle. PCB outline size 38.0x28.5x2.37 mm with mounting holes on board and 8 metal pins on module.

This 128x64 SSD1306 OLED display module is suitable for smart control, industrial control for heater, smart home application, medical device, etc. Operating temperatures from -40℃ to +80℃; torage temperatures range from -40℃ to +85℃.



DRAWING

OLED 12864, 12864 OLED, OLED Display Module 12864, SSD1306 OLED, SSD1306 OLED Display, OLED 128x64 SSD1306



SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 SDA When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
2 SCL
3 SA0 In I2C mode, this pin acts as SA0 for slave address selection.
When 3-wire serial interface is selected, this pin must be connected to VSS.
4 RST This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin HIGH (i.e. connect to VDD) during normal operation.
5 CS This pin is the chip select input. (active LOW).
6 VDD 3.0V Power supply pin for core logic operation.
7 VIN 5.0V Power supply pin for core logic operation.
8 GND This is a ground pin.



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 × 64 Dots
Module dimension 38.00 × 28.50 × 2.37 mm
Active Area 21.74 × 10.86 mm
Pixel Size 0.148 × 0.148 mm
Pixel Pitch 0.17 × 0.17 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SSD1306
Interface I2C, SPI
Size 0.96 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD 1.65 3.3 V
Supply Voltage for Logic VIN 4.0 6.0 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic(3V) VDD － 2.8 3.0 3.2 V
Supply Voltage for Logic(5V) VIN － 4.8 5.0 5.2 V
Input High Volt. VIH － 0.8×VDD － VDDIO V
Input Low Volt. VIL － 0 － 0.2×VDD V
Output High Volt. VOH － 0.9×VDD － VDDIO V
Output Low Volt. VOL － 0 － 0.1×VDD V
50% Check Board operating Current ICC Vcc=7.5V － 12.0 22.0 mA
Products specifications
Brand Winstar
Size 0.96"
Resolution 128x64
Active Area (mm) 21.74x10.86
Dot Size 0.14x0.14
Polarizer Glare
Color Blue
Power supply 3V
Display Interface I2C (option SPI)
Display IC Controller SSD1306BZ
Constructive Structure COG + PCB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Strip Connector
Pin Nr. 8
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 0.96"
Resolution 128x64
Active Area (mm) 21.74x10.86
Dot Size 0.14x0.14
Polarizer Glare
Color Blue
Power supply 3V
Display Interface I2C (option SPI)
Display IC Controller SSD1306BZ
Constructive Structure COG + PCB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Strip Connector
Pin Nr. 8
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Related products
Picture of WEO12864W#D08-FC

WEO12864W#D08-FC

PMOLED 0.96'' Graphic 128x64, White color, COG, 3V, Interface 6800,8080,SPI,I2C, Low thickness without Sponge (FPC per Soldering)
From €3.40 excl tax
Picture of WEO12864L#D08-FC

WEO12864L#D08-FC

PMOLED 0.96'' Graphic 128x64, Yellow color, COG, 3V, Interface 6800,8080,SPI,I2C, Low thickness without Sponge (FPC per Soldering)
From €3.30 excl tax

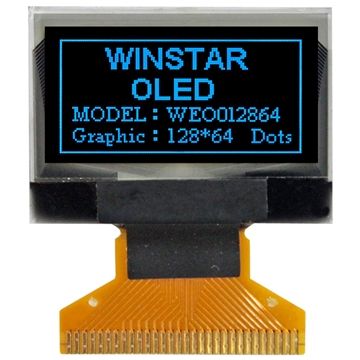

Picture of WEO12864B#D08-FC
