WEA12864X#M00-FC

PMOLED 0.96'' Graphic 128x64, Dual color (Yellow/Blue), COG + PCB, 3V, Interface I2C (Pin)

MOQ

After sample PO, MP MOQ 35K



DESCRIPTION

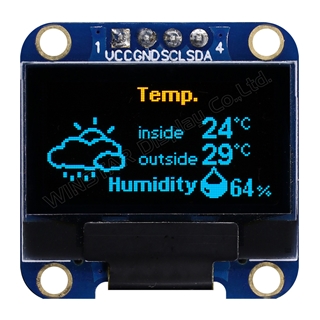

COG 0.96" Dual Color OLED with PCB board on module. The module is built in with SSD1306 IC; it supports I2C interface, 1/64 driving duty, supply voltage for Logic 5V, optional 3.3V, with conversion circuit. This model is having PCB outline size 27.3 × 27.3 mm with mounting holes on board and 4x1 metal pins on module. The standard color is yellow/sky blue only, without any other color options.

It is suitable for smart home application, medical device, smart control, meter, etc. This module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

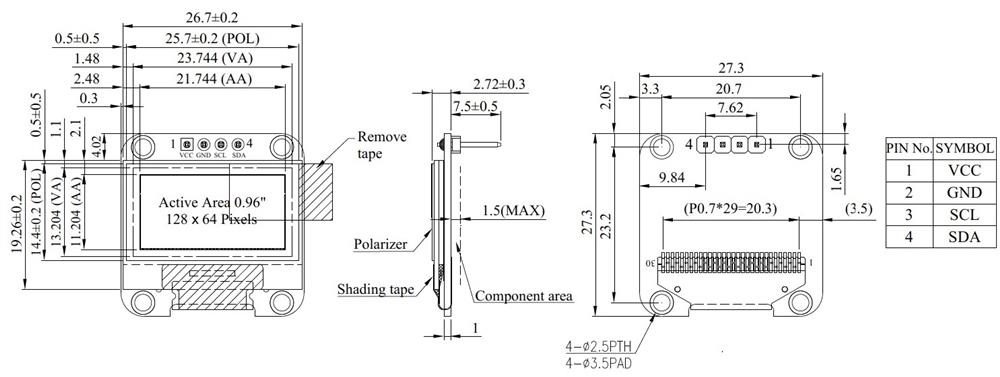

DRAWING

0.96" COG+PCB Dual Color OLED Display 128x64 - WEA012864MX



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 VCC Power supply input: 2.8 – 5.2V
2 GND Ground
3 SCL The serial clock input
4 SDA The serial data input



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 × 64 Dots
Module dimension 27.3× 27.3 × 2.72 mm
Active Area 21.744× 11.204 mm
Pixel Size 0.148 × 0.148 mm
Pixel Pitch 0.17 × 0.17 mm
Display Mode Passive Matrix
Display Color Dual Color (Yellow / Sky Blue)
Drive Duty 1/64 Duty
IC SSD1306
Interface I2C
Size 0.96 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VCC 2 5.5 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VCC 2.8 3.3 5.2 V
Input High Volt. VIH 0.8×VCC VCC V
Input Low Volt. VIL 0 0.2×VCC V
Output High Volt. VOH 0.9×VCC VCC V
Output Low Volt. VOL 0 0.1×VCC V
50% Check Board operating Current ICC VCC=3.3V 14.0 22.0 mA
SKU: WEA12864X#M00-FC
Brand: Winstar

MOQ

After sample PO, MP MOQ 35K



DESCRIPTION



COG 0.96" Dual Color OLED with PCB board on module. The module is built in with SSD1306 IC; it supports I2C interface, 1/64 driving duty, supply voltage for Logic 5V, optional 3.3V, with conversion circuit. This model is having PCB outline size 27.3 × 27.3 mm with mounting holes on board and 4x1 metal pins on module. The standard color is yellow/sky blue only, without any other color options.

It is suitable for smart home application, medical device, smart control, meter, etc. This module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.



DRAWING

0.96" COG+PCB Dual Color OLED Display 128x64 - WEA012864MX



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 VCC Power supply input: 2.8 – 5.2V
2 GND Ground
3 SCL The serial clock input
4 SDA The serial data input



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 × 64 Dots
Module dimension 27.3× 27.3 × 2.72 mm
Active Area 21.744× 11.204 mm
Pixel Size 0.148 × 0.148 mm
Pixel Pitch 0.17 × 0.17 mm
Display Mode Passive Matrix
Display Color Dual Color (Yellow / Sky Blue)
Drive Duty 1/64 Duty
IC SSD1306
Interface I2C
Size 0.96 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VCC 2 5.5 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VCC 2.8 3.3 5.2 V
Input High Volt. VIH 0.8×VCC VCC V
Input Low Volt. VIL 0 0.2×VCC V
Output High Volt. VOH 0.9×VCC VCC V
Output Low Volt. VOL 0 0.1×VCC V
50% Check Board operating Current ICC VCC=3.3V 14.0 22.0 mA
Products specifications
Brand Winstar
Size 0.96"
Resolution 128x64
Active Area (mm) 21.74x11.20
Dot Size 0.14x0.14
Polarizer Glare
Color Yellow/Blue
Power supply 3V
Interface 12C
Built-in Controller SSD1306
Structure COG + PCB
Frame Yes
Touch Panel No touch
Display Connection Pin
Pin Nr. 4
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
