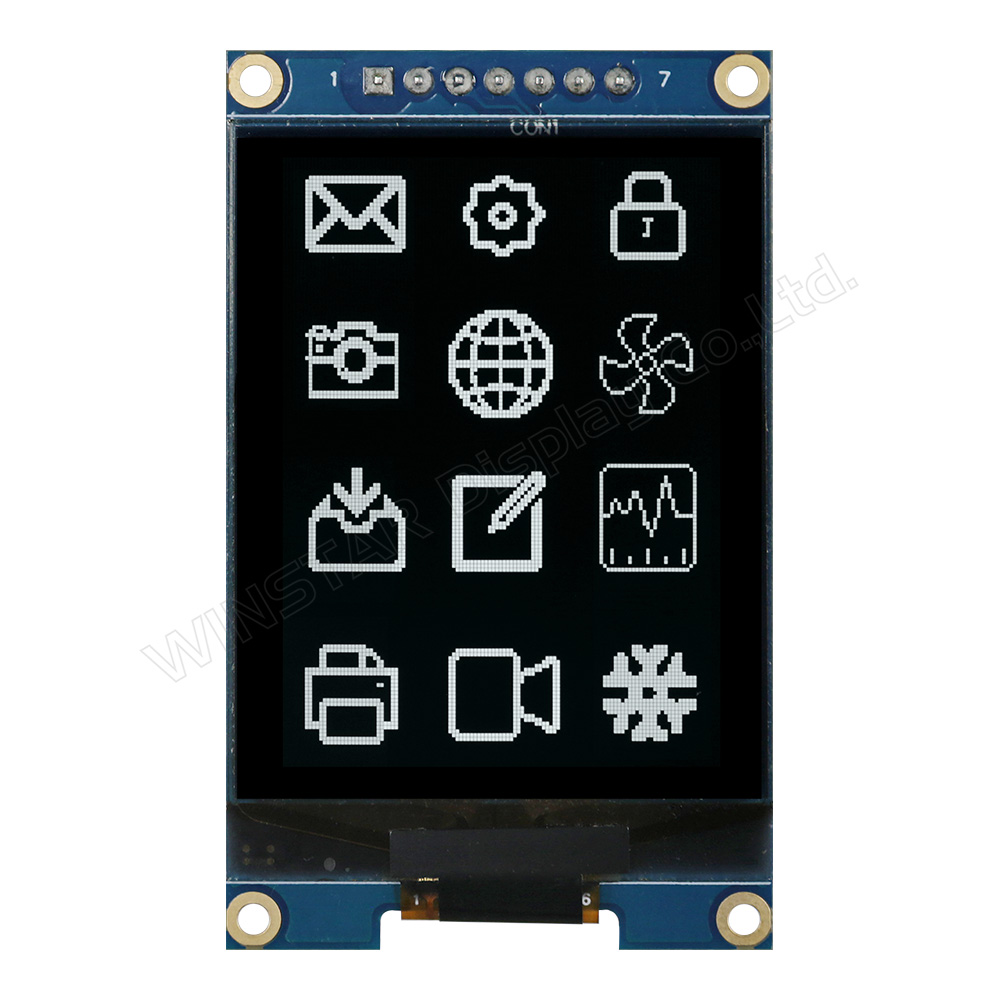

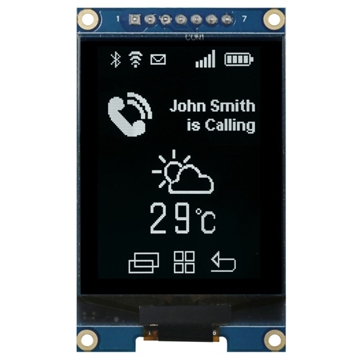

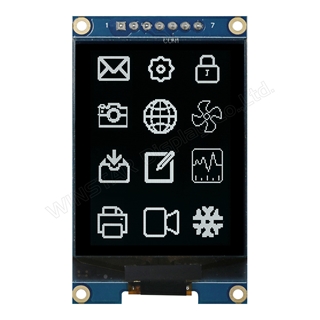

It’s diagonal size 1.92 inch, made of 160x128 pixels. This PCB board with four mounting holes is an easy method for customers to fix modules on their applications. This module is built in with SH1108 IC; it supports 4-wire SPI interface, 1/128 driving duty, supply voltage for logic is from 3V, the display current with 50% checkerboard is 100 mA @3.0 VDD (typical value). The module is having a PCB board on module which is suitable for customers to use wire connection; customers do not need to develop extra PCB for their applications. The module provides a standard metal PIN (2.54mm pin hole) for customer to connect to the product. The PCB has been designed with a boost circuit, and customers only need to provide a set of VDD voltage to use.
This OLED module is suitable for smart home application, medical device, smart control, meter, etc. WEA160128A module can be operating at temperatures from -40°C to +80°C; its storage temperatures range from -40°C to +85°C.
For quantities above 25 pcs pls send your enquiry to firstname.lastname@example.org or call +39 0332 1888005
