WEA6432S#A00-FC

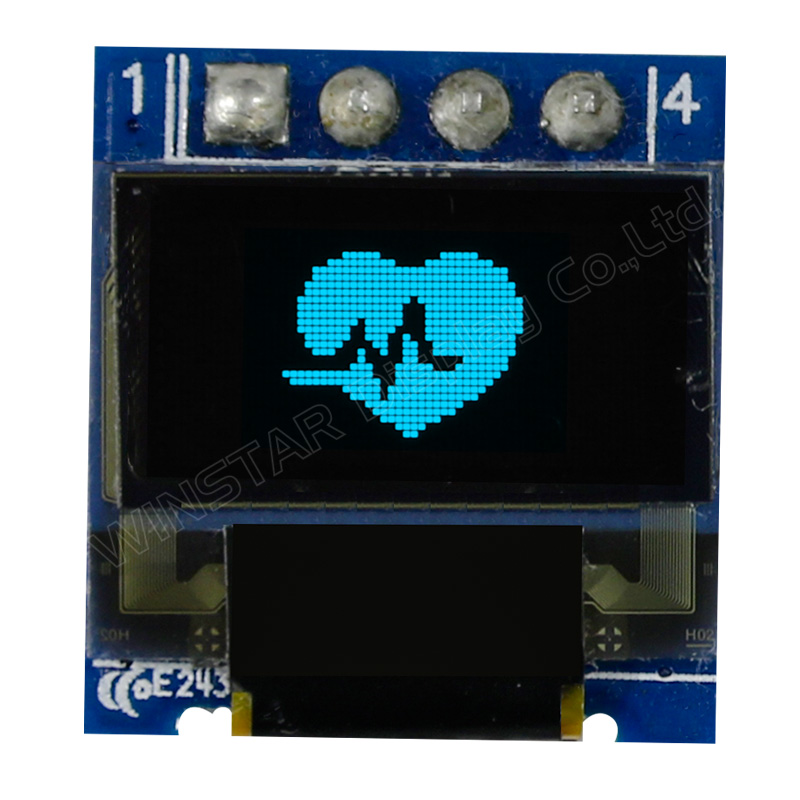

PMOLED 0.49'' Graphic 64x32, Sky Blue color, COG + PCB, 3V, Interface I2C (Pin)

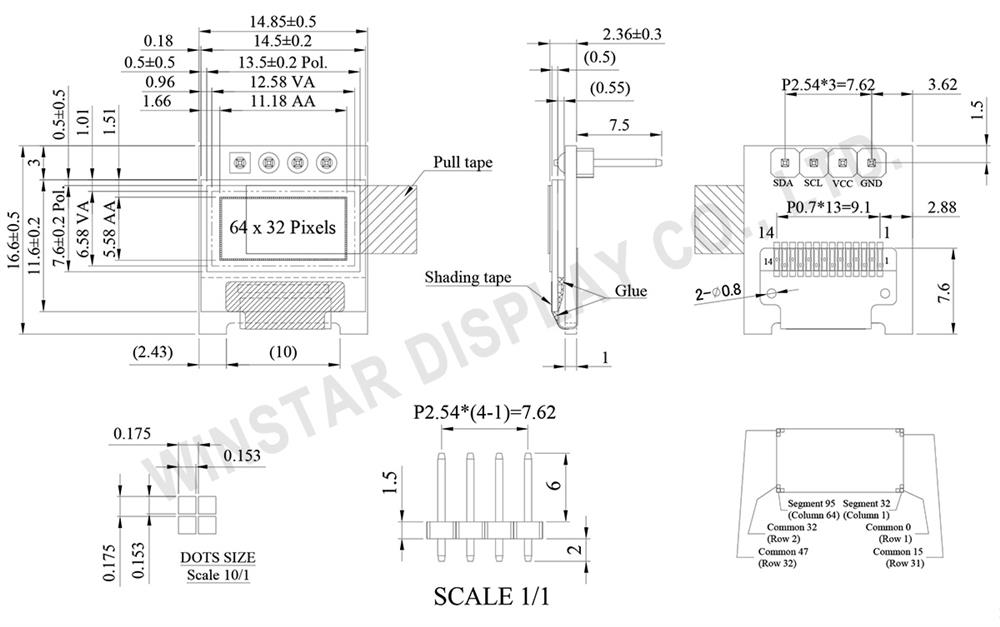

DRAWING

0.49" OLED Mini Display 64x32 - WEA006432A - Winstar



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 GND Ground
2 VCC Power supply input.
3 SCL When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI).
4 SDA



Mechanical Data

ItemDimensionUnit
Dot Matrix 64 x 32 Dots
Module dimension 14.85 × 16.6 × 2.36 mm
Active Area 11.18 × 5.58 mm
Pixel Size 0.153 × 0.153 mm
Pixel Pitch 0.175 × 0.175 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/32 Duty
IC SSD1306
Interface I2C
Size 0.49 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VCC 0 4.0 V
Supply Voltage for Display VCC1 0 16.0 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VCC 2.8 3.0 3.2 V
Input High Volt. VIH 0.8×VDD VDDIO V
Input Low Volt. VIL 0 0.2×VDD V
Output High Volt. VOH 0.9×VDD VDDIO V
Output Low Volt. VOL 0 0.1×VDD V
50% check Board operating Current ICC VCC1=7.5V 13.0 26.0 mA


SKU: WEA6432S#A00-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
50+
100+
Price
€3.20
€2.40
€2.30
€2.10
€2.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€3.20 excl tax

DRAWING

0.49" OLED Mini Display 64x32 - WEA006432A - Winstar



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 GND Ground
2 VCC Power supply input.
3 SCL When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI).
4 SDA



Mechanical Data

ItemDimensionUnit
Dot Matrix 64 x 32 Dots
Module dimension 14.85 × 16.6 × 2.36 mm
Active Area 11.18 × 5.58 mm
Pixel Size 0.153 × 0.153 mm
Pixel Pitch 0.175 × 0.175 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/32 Duty
IC SSD1306
Interface I2C
Size 0.49 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VCC 0 4.0 V
Supply Voltage for Display VCC1 0 16.0 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VCC 2.8 3.0 3.2 V
Input High Volt. VIH 0.8×VDD VDDIO V
Input Low Volt. VIL 0 0.2×VDD V
Output High Volt. VOH 0.9×VDD VDDIO V
Output Low Volt. VOL 0 0.1×VDD V
50% check Board operating Current ICC VCC1=7.5V 13.0 26.0 mA


Products specifications
Brand Winstar
Size 0.49"
Resolution 64x32
Active Area (mm) 11.18x5.58
Dot Size 0.15x0.15
Polarizer Glare
Color Sky Blue
Power supply 3V
Interface I2C
Built-in Controller SSD1306BZ
Structure COG + PCB
Frame No
Touch Panel No touch
Display Connection Pin
Pin Nr. 4
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 0.49"
Resolution 64x32
Active Area (mm) 11.18x5.58
Dot Size 0.15x0.15
Polarizer Glare
Color Sky Blue
Power supply 3V
Interface I2C
Built-in Controller SSD1306BZ
Structure COG + PCB
Frame No
Touch Panel No touch
Display Connection Pin
Pin Nr. 4
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
