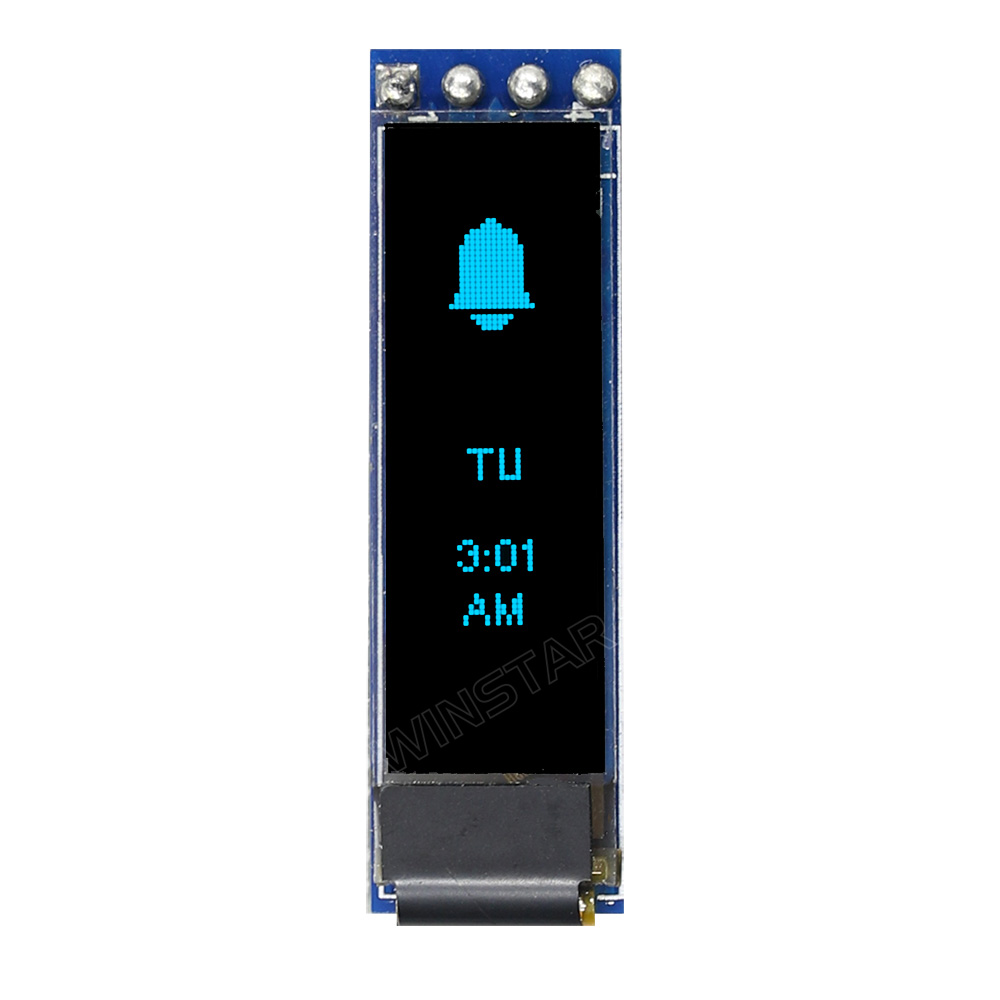

WEA9616S#A00-FC

PMOLED 0.84'' Graphic 96x16, Sky Blue color, COG + PCB, 3V, Interface I2C (Pin)

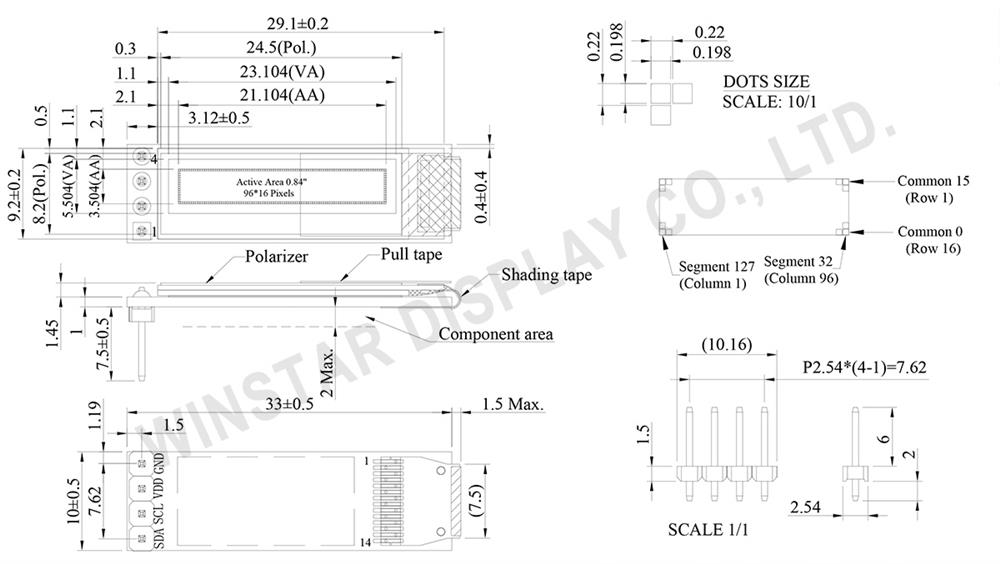

DRAWING

0.84 OLED Display (COG PCB) - WEA009616A - Winstar



SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 GND Ground
2 VDD Power supply input.
3 SCL When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI).
4 SDA



Mechanical Data

ItemDimensionUnit
Dot Matrix 96 x 16 Dots
Module dimension 33 × 10 × 2.45 mm
Active Area 21.104 × 3.504 mm
Pixel Size 0.198 × 0.198 mm
Pixel Pitch 0.220 × 0.220 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/16Duty
IC SSD1306
Interface I2C
Size 0.84 inch



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD 2.8 3.0 3.2 V
Input High Volt. VIH 0.8×VDD VDDIO V
Input Low Volt. VIL 0 0.2×VDD V
Output High Volt. VOH 0.9×VDD VDDIO V
Output Low Volt. VOL 0 0.1×VDD V
50% check Board operating Current ICC VCC=7.5V 13.0 26.0 mA



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD 0 4.0 V
Supply Voltage for Display VCC 0 16.0 V
Operating Temperature TOP -40 80 °C
Storage Temperature TSTG -40 85 °C


SKU: WEA9616S#A00-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€3.70
€2.70
€2.70
€2.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€3.70 excl tax

DRAWING

0.84 OLED Display (COG PCB) - WEA009616A - Winstar



SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 GND Ground
2 VDD Power supply input.
3 SCL When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI).
4 SDA



Mechanical Data

ItemDimensionUnit
Dot Matrix 96 x 16 Dots
Module dimension 33 × 10 × 2.45 mm
Active Area 21.104 × 3.504 mm
Pixel Size 0.198 × 0.198 mm
Pixel Pitch 0.220 × 0.220 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/16Duty
IC SSD1306
Interface I2C
Size 0.84 inch



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD 2.8 3.0 3.2 V
Input High Volt. VIH 0.8×VDD VDDIO V
Input Low Volt. VIL 0 0.2×VDD V
Output High Volt. VOH 0.9×VDD VDDIO V
Output Low Volt. VOL 0 0.1×VDD V
50% check Board operating Current ICC VCC=7.5V 13.0 26.0 mA



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD 0 4.0 V
Supply Voltage for Display VCC 0 16.0 V
Operating Temperature TOP -40 80 °C
Storage Temperature TSTG -40 85 °C


Products specifications
Brand Winstar
Size 0.84"
Resolution 96x16
Active Area (mm) 21.10x3.50
Dot Size 0.19x0.19
Polarizer Glare
Color Sky Blue
Power supply 3V
Interface I2C
Built-in Controller SSD1306BZ
Structure COG + PCB
Frame No
Touch Panel No touch
Display Connection Pin
Pin Nr. 4
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 0.84"
Resolution 96x16
Active Area (mm) 21.10x3.50
Dot Size 0.19x0.19
Polarizer Glare
Color Sky Blue
Power supply 3V
Interface I2C
Built-in Controller SSD1306BZ
Structure COG + PCB
Frame No
Touch Panel No touch
Display Connection Pin
Pin Nr. 4
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
