WEA9664L#B00-FC

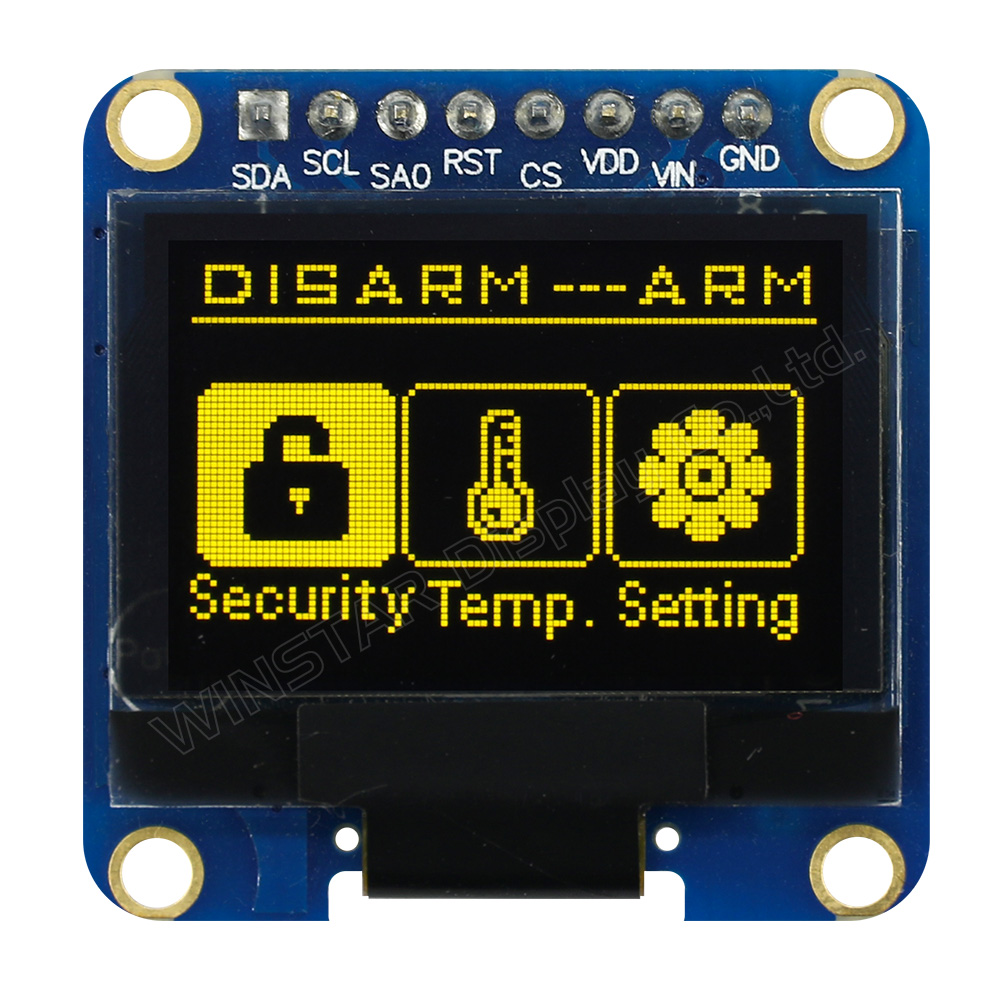

PMOLED 1.1" Graphic 96x64, Yellow color, COG + PCB, 3V, Interface SPI (option I2C) , Anti-glare

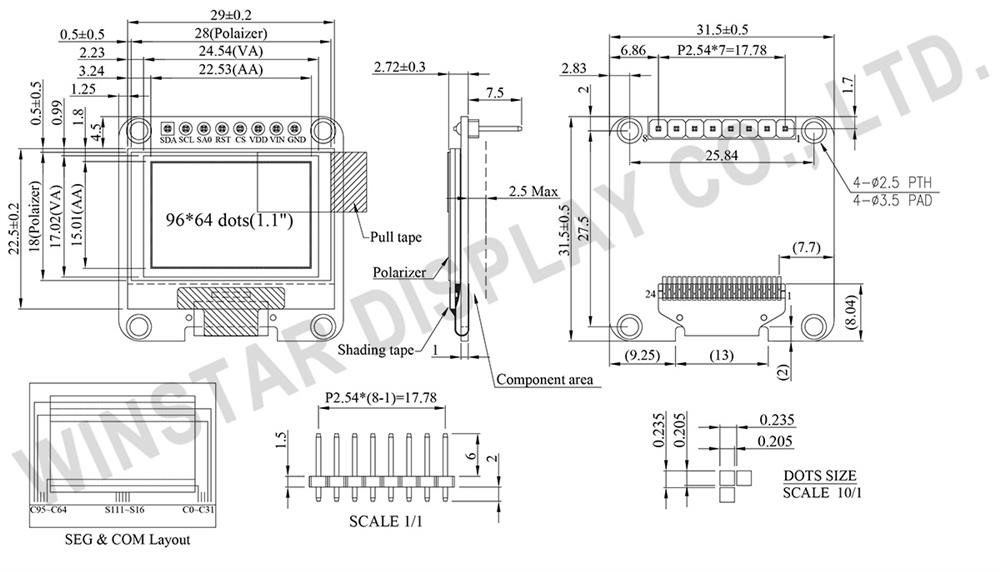

DRAWING

No.	Symbol	Function
1	SDA	When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
2	SCL
3	SA0	In I2C mode, this pin acts as SA0 for slave address selection. When 3-wire serial interface is selected, this pin must be connected to VSS.
4	RST	This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin HIGH (i.e. connect to VDD) during normal operation.
5	CS	This pin is the chip select input. (active LOW).
6	VDD	3.0V Power supply pin for core logic operation.
7	VIN	5.0V Power supply pin for core logic operation.
8	GND	This is a ground pin.

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	－	2.8	3.0	3.2	V
Supply Voltage for Logic	VIN	－	4.8	5.0	5.2	V
Supply Voltage for Display	VCC	－	7.5	8.0	8.5	V
Input High Volt.	VIH	－	0.8×VDD	－	VDDIO	V
Input Low Volt.	VIL	－	0	－	0.2×VDD	V
Output High Volt.	VOH	－	0.9×VDD	－	VDDIO	V
Output Low Volt.	VOL	－	0	－	0.1×VDD	V
50% Check Board operating Current	IDD	VDD=3.0V	－	55	100	mA

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Logic	VDD	1.65	3.30	V
Supply Voltage for Logic	VIN	4.0	6.0	V
Supply Voltage for Display	VCC	0	16.0	V
Operating Temperature	TOP	-40	80	°C
Storage Temperature	TSTG	-40	85	°C

SKU: WEA9664L#B00-FC

Brand: Winstar

Available: Yes

Price Breaks

Quantity

10+

25+

Price

€11.50

€8.50

€8.20

€7.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€11.50 excl tax

No.	Symbol	Function
1	SDA	When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
2	SCL
3	SA0	In I2C mode, this pin acts as SA0 for slave address selection. When 3-wire serial interface is selected, this pin must be connected to VSS.
4	RST	This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin HIGH (i.e. connect to VDD) during normal operation.
5	CS	This pin is the chip select input. (active LOW).
6	VDD	3.0V Power supply pin for core logic operation.
7	VIN	5.0V Power supply pin for core logic operation.
8	GND	This is a ground pin.

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	－	2.8	3.0	3.2	V
Supply Voltage for Logic	VIN	－	4.8	5.0	5.2	V
Supply Voltage for Display	VCC	－	7.5	8.0	8.5	V
Input High Volt.	VIH	－	0.8×VDD	－	VDDIO	V
Input Low Volt.	VIL	－	0	－	0.2×VDD	V
Output High Volt.	VOH	－	0.9×VDD	－	VDDIO	V
Output Low Volt.	VOL	－	0	－	0.1×VDD	V
50% Check Board operating Current	IDD	VDD=3.0V	－	55	100	mA

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Logic	VDD	1.65	3.30	V
Supply Voltage for Logic	VIN	4.0	6.0	V
Supply Voltage for Display	VCC	0	16.0	V
Operating Temperature	TOP	-40	80	°C
Storage Temperature	TSTG	-40	85	°C
