WEA9664L#B08-FC

PMOLED 1.1'' Graphic 96x64, Yellow color, COG + PCB, 3V, Interface I2C (Pin), Anti-glare

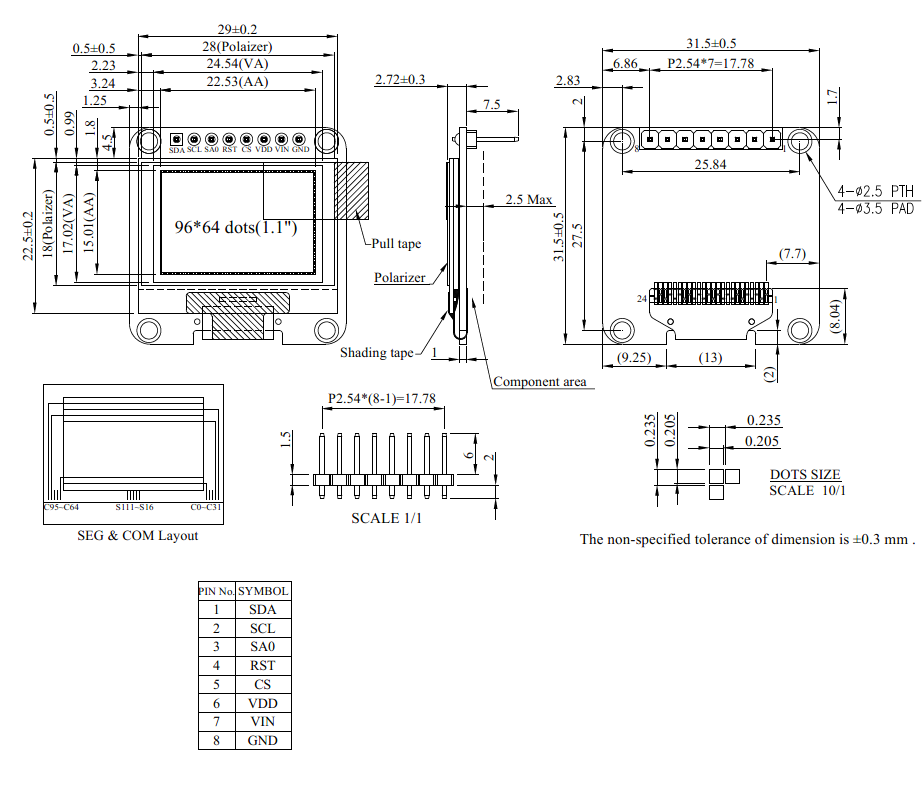

DRAWING



SPECIFICATIONS

Mechanical Data

ItemDimensionUnit
Dot Matrix 96 × 64 Dots
Module dimension 31.5 × 31.5 × 2.72 mm
Active Area 22.53 × 15.01 mm
Pixel Size 0.205 × 0.205 mm
Pixel Pitch 0.235 × 0.235 mm
Display Mode Passive Matrix
Display Color Monochrome
Gray scale 4 bits
Drive Duty 1/64 Duty
IC SSD1327
Interface I2C ,Optional SPI
Size 1.1 inch



SKU: WEA9664L#B08-FC
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
50+
100+
Price
€10.50
€7.70
€7.60
€7.00
€6.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€10.50 excl tax

DRAWING



SPECIFICATIONS

Mechanical Data

ItemDimensionUnit
Dot Matrix 96 × 64 Dots
Module dimension 31.5 × 31.5 × 2.72 mm
Active Area 22.53 × 15.01 mm
Pixel Size 0.205 × 0.205 mm
Pixel Pitch 0.235 × 0.235 mm
Display Mode Passive Matrix
Display Color Monochrome
Gray scale 4 bits
Drive Duty 1/64 Duty
IC SSD1327
Interface I2C ,Optional SPI
Size 1.1 inch



Products specifications
Brand Winstar
Size 1.1"
Resolution 96x64
Active Area (mm) 22.53x15.01
Dot Size 0.20x0.20
Polarizer Anti-glare
Color Yellow
Power supply 3V
Interface I2C
Built-in Controller SSD1327
Structure COG + PCB
Frame Yes
Touch Panel No touch
Display Connection Pin
Pin Nr. 8
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 1.1"
Resolution 96x64
Active Area (mm) 22.53x15.01
Dot Size 0.20x0.20
Polarizer Anti-glare
Color Yellow
Power supply 3V
Interface I2C
Built-in Controller SSD1327
Structure COG + PCB
Frame Yes
Touch Panel No touch
Display Connection Pin
Pin Nr. 8
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
