WEG10016B#DP5N00100-FC

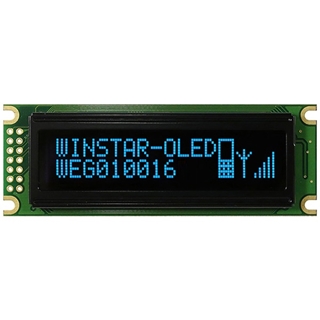

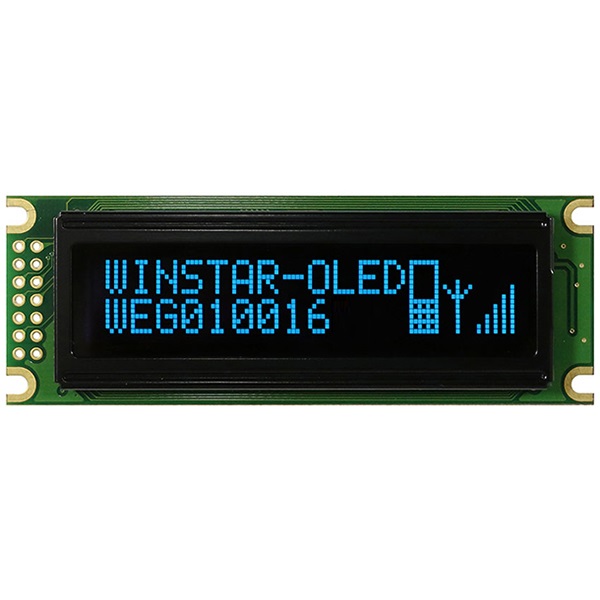

PMOLED 2.4'' Graphic 100x16, Blue color, COB, 5V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 P/N WEG10016B#D00-FC

Winstar graphic monochrome OLED display module has a very high contrast ratio with an extremely dark background versus the lit-up pixels on the display. This monochrome OLED display 100x16 pixels display module features a very wide viewing angle up to 175° and is able to communicate using either an 8 bit or 4 bit parallel microcontroller interface. Operating temperature and storage temperature ranges are -40 ℃ ~ 80 ℃”.

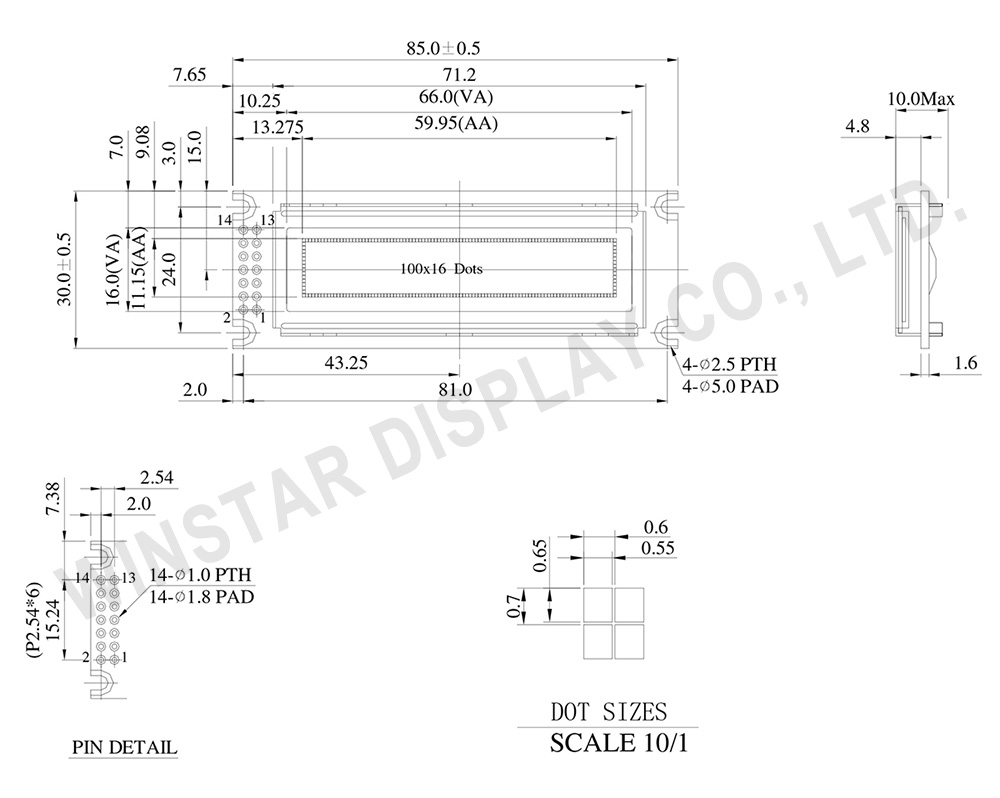

DRAWING

Monochrome OLED Display 100x16 - WEG010016D

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VDD Supply Voltage for logic
2 VSS Ground
3 NC No Connection
4 RS Register Select
5 R/W Read/Write Control
6 E Chip Enable Signal
7~14 DB0~DB7 Data Bus



Mechanical Data

ItemDimensionUnit
Module dimension 85.0 × 30.0 mm
Viewing area 66.0 × 16.0 mm
Active area 59.95 × 11.15 mm
Dot pitch 0.60 × 0.70 mm
Dot size 0.55 × 0.65 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD --- 4.8 5.0 5.3 V




SKU: WEG10016B#DP5N00100-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€16.10
€11.80
€11.30
€11.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€16.10 excl tax

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 P/N WEG10016B#D00-FC

Winstar graphic monochrome OLED display module has a very high contrast ratio with an extremely dark background versus the lit-up pixels on the display. This monochrome OLED display 100x16 pixels display module features a very wide viewing angle up to 175° and is able to communicate using either an 8 bit or 4 bit parallel microcontroller interface. Operating temperature and storage temperature ranges are -40 ℃ ~ 80 ℃”.



DRAWING

Monochrome OLED Display 100x16 - WEG010016D

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VDD Supply Voltage for logic
2 VSS Ground
3 NC No Connection
4 RS Register Select
5 R/W Read/Write Control
6 E Chip Enable Signal
7~14 DB0~DB7 Data Bus



Mechanical Data

ItemDimensionUnit
Module dimension 85.0 × 30.0 mm
Viewing area 66.0 × 16.0 mm
Active area 59.95 × 11.15 mm
Dot pitch 0.60 × 0.70 mm
Dot size 0.55 × 0.65 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD --- 4.8 5.0 5.3 V




Products specifications
Brand Winstar
Size 2.4"
Resolution 100x16
Active Area (mm) 59.95x11.15
Dot Size 0.55x0.65
Polarizer Glare
Color Blue
Power supply 5V
Display Interface 6800 (option 8080)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 14
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
