WEG10016G#DP5N00100-FC

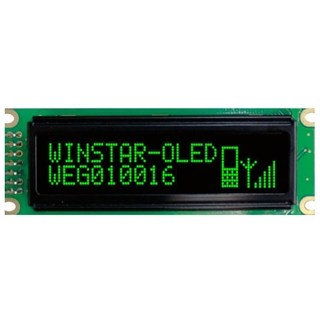

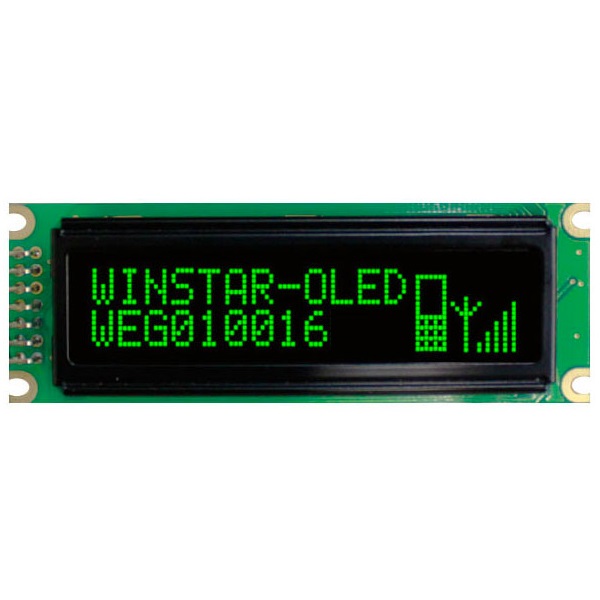

PMOLED 2.4'' Graphic 100x16, Green color, COB, 5V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEG10016G#D00-FC in 'Related Product' section on the bottom page

Winstar graphic monochrome OLED display module has a very high contrast ratio with an extremely dark background versus the lit-up pixels on the display. This monochrome OLED display 100x16 pixels display module features a very wide viewing angle up to 175° and is able to communicate using either an 8 bit or 4 bit parallel microcontroller interface. Operating temperature and storage temperature ranges are -40 ℃ ~ 80 ℃”.

DRAWING

Monochrome OLED Display 100x16 - WEG010016D

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	VDD	Supply Voltage for logic
2	VSS	Ground
3	NC	No Connection
4	RS	Register Select
5	R/W	Read/Write Control
6	E	Chip Enable Signal
7~14	DB0~DB7	Data Bus

Mechanical Data

Item	Dimension	Unit
Module dimension	85.0 × 30.0	mm
Viewing area	66.0 × 16.0	mm
Active area	59.95 × 11.15	mm
Dot pitch	0.60 × 0.70	mm
Dot size	0.55 × 0.65	mm

Electronical Characteristics

Item	Symbol	Condition	Standard Value			Unit
Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	4.8	5.0	5.3	V

SKU: WEG10016G#DP5N00100-FC

Brand: Winstar

Available: No

Be the first to review this product

Price Breaks

Quantity

10+

25+

Price

€16.10

€11.80

€11.60

€11.20

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€16.10 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEG10016G#D00-FC in 'Related Product' section on the bottom page

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	VDD	Supply Voltage for logic
2	VSS	Ground
3	NC	No Connection
4	RS	Register Select
5	R/W	Read/Write Control
6	E	Chip Enable Signal
7~14	DB0~DB7	Data Bus

Mechanical Data

Item	Dimension	Unit
Module dimension	85.0 × 30.0	mm
Viewing area	66.0 × 16.0	mm
Active area	59.95 × 11.15	mm
Dot pitch	0.60 × 0.70	mm
Dot size	0.55 × 0.65	mm

Electronical Characteristics

Item	Symbol	Condition	Standard Value			Unit
Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	4.8	5.0	5.3	V

Products specifications

Brand	Winstar
Size	2.4"
Resolution	100x16
Active Area (mm)	59.95x11.15
Dot Size	0.55x0.65
Polarizer	Glare
Color	Green
Power supply	5V
Display Interface	6800 (option 8080)
Display IC Controller	WS0010-TX
Constructive Structure	COB
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	Soldering PAD
Pin Nr.	14
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
