WEG10016G#FP5N00100-FC

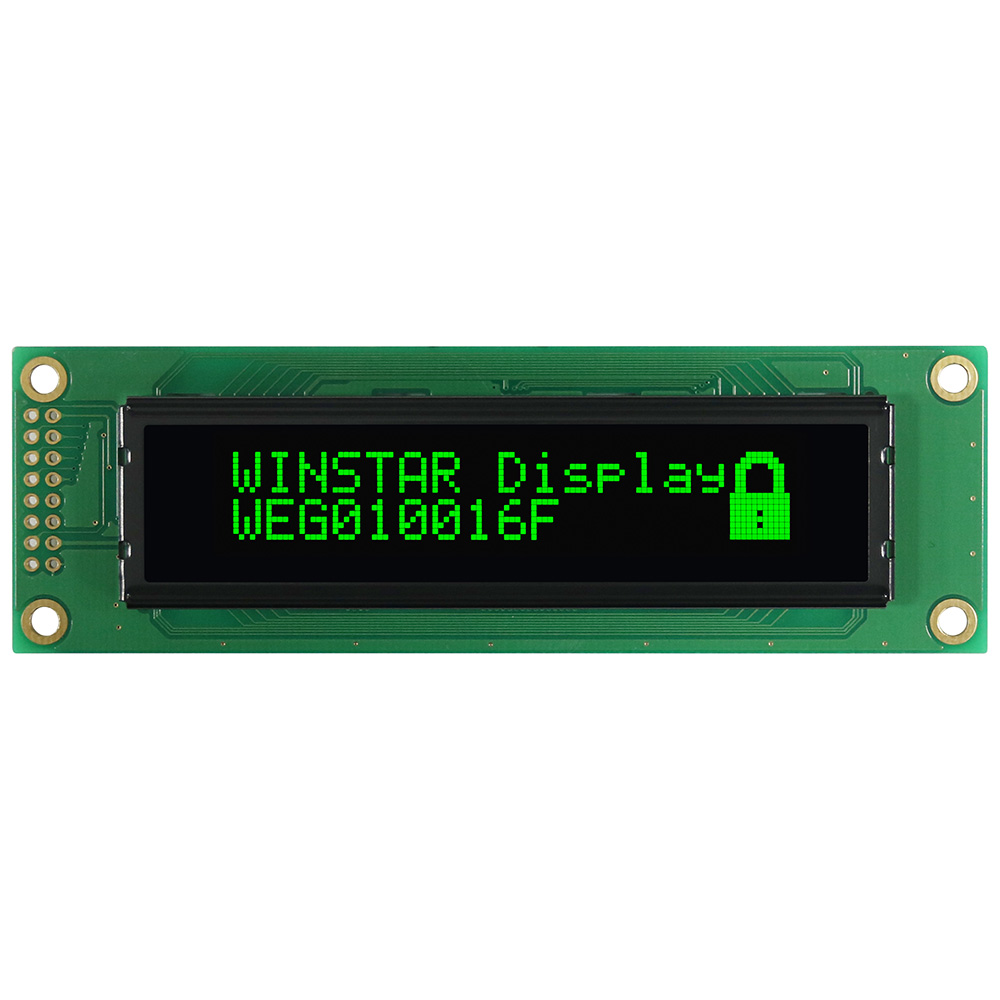

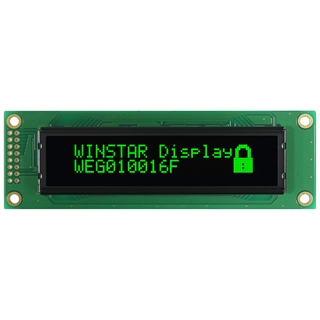

PMOLED 2.59'' Graphic 100x16, Green color, COB, 5V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 P/N WEG10016G#F00-FC

Graphic OLED display module has a very high contrast ratio (2000:1) with an extremely dark background versus the lit-up pixels on the display. This mono OLED display features a very wide viewing angle up to 175° and is able to communicate using either an 8 bit or 4 bit parallel microcontroller interface.

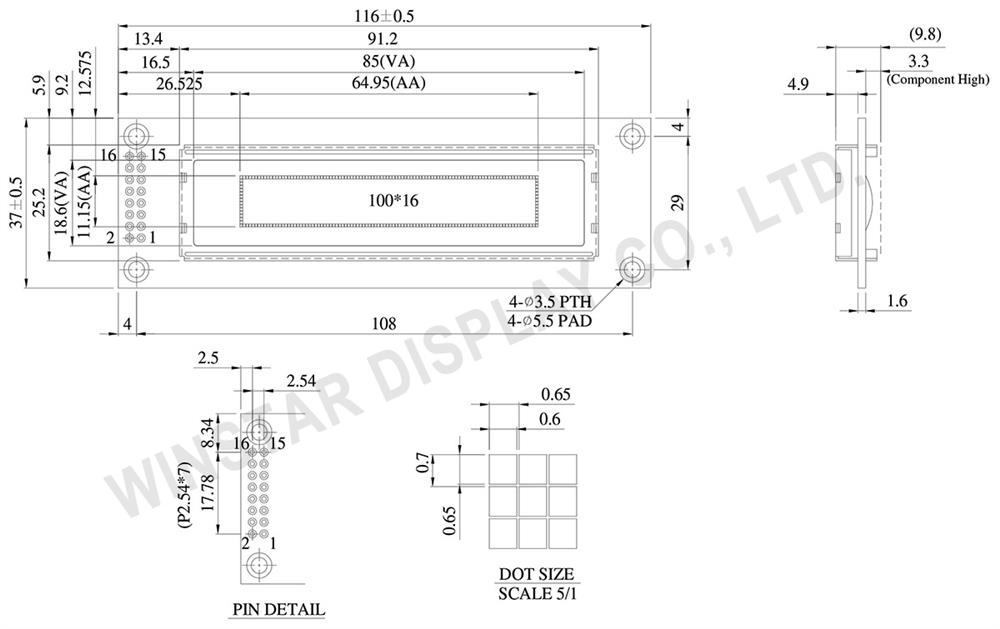

DRAWING

WEG010016F - 1100x16 OLED Display Module 2.59"



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC No connect
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC No connect
16 NC No connect



Mechanical Data

ItemDimensionUnit
Dot Matrix 100 x 16 Dots
Module dimension 116.0 x 37.0 x 9.8 mm
View area 85.0 x 18.6 mm
Active area 64.95 x 11.15 mm
Dot size 0.6 x 0.65 mm
Dot pitch 0.65 x 0.70 mm
Panel Type OLED, Monochrome
Duty 1/16



Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C
Supply Voltage For Logic VDD-VSS -0.3 5.3 V



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS 4.8 5.0 5.3 V
Input High Volt. VIH 0.8 VDD VDD V
Input Low Volt. VIL GND 0.2 VDD V
Output High Volt. VOH IOH=-0.5mA 0.8 VDD VDD V
Output Low Volt. VOL IOL=0.5mA GND 0.2 VDD V
50% Check Board
Operating Current
IDD VDD=5V 28 35 40 mA


SKU: WEG10016G#FP5N00100-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
Price
€20.90
€16.70
€16.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€20.90 excl tax

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 P/N WEG10016G#F00-FC

Graphic OLED display module has a very high contrast ratio (2000:1) with an extremely dark background versus the lit-up pixels on the display. This mono OLED display features a very wide viewing angle up to 175° and is able to communicate using either an 8 bit or 4 bit parallel microcontroller interface.



DRAWING

WEG010016F - 1100x16 OLED Display Module 2.59"



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC No connect
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC No connect
16 NC No connect



Mechanical Data

ItemDimensionUnit
Dot Matrix 100 x 16 Dots
Module dimension 116.0 x 37.0 x 9.8 mm
View area 85.0 x 18.6 mm
Active area 64.95 x 11.15 mm
Dot size 0.6 x 0.65 mm
Dot pitch 0.65 x 0.70 mm
Panel Type OLED, Monochrome
Duty 1/16



Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C
Supply Voltage For Logic VDD-VSS -0.3 5.3 V



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS 4.8 5.0 5.3 V
Input High Volt. VIH 0.8 VDD VDD V
Input Low Volt. VIL GND 0.2 VDD V
Output High Volt. VOH IOH=-0.5mA 0.8 VDD VDD V
Output Low Volt. VOL IOL=0.5mA GND 0.2 VDD V
50% Check Board
Operating Current
IDD VDD=5V 28 35 40 mA


Products specifications
Brand Winstar
Size 2.59"
Resolution 100x16
Active Area (mm) 64.95x11.15
Dot Size 0.60x0.65
Polarizer Glare
Color Green
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
