WEG10016W#FP5N00100-FC

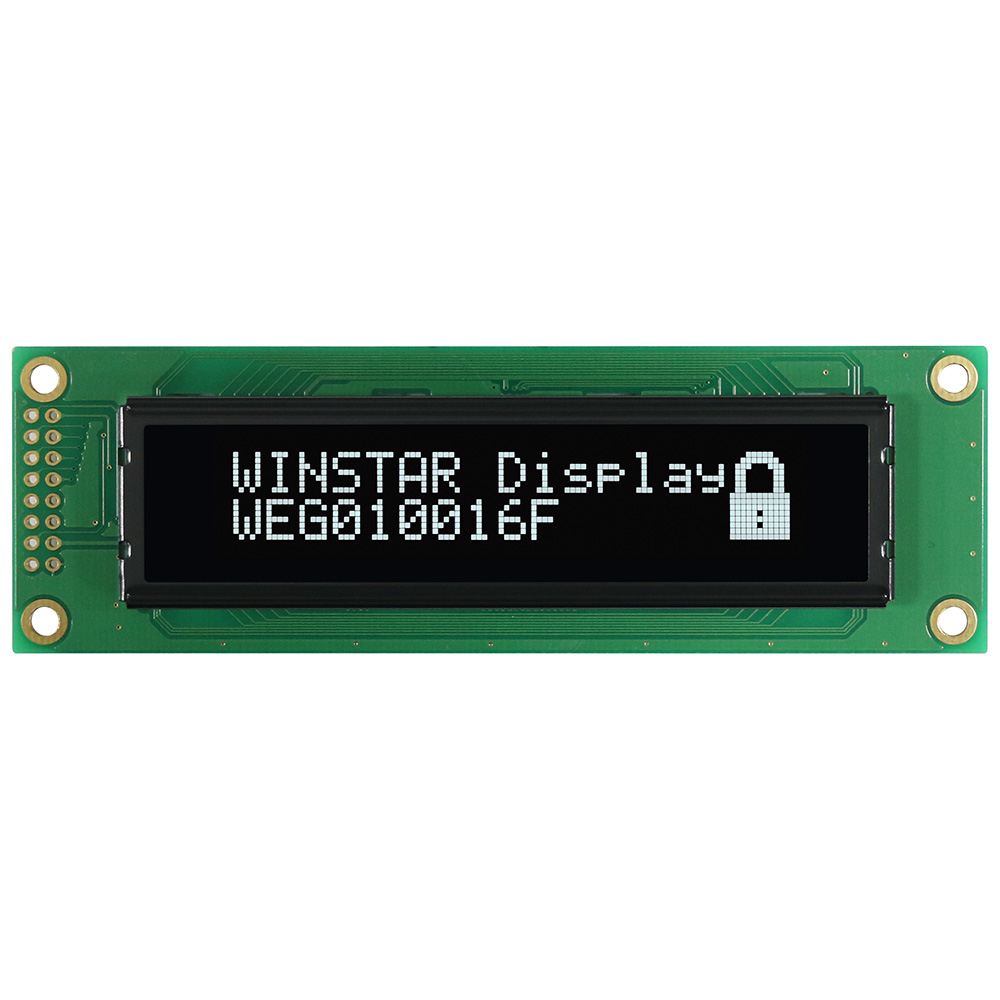

PMOLED 2.59'' Graphic 100x16, White color, COB, 5V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEG10016W#F08-FC in 'Related Product' section on the bottom page

Graphic OLED display module has a very high contrast ratio (2000:1) with an extremely dark background versus the lit-up pixels on the display. This mono OLED display features a very wide viewing angle up to 175° and is able to communicate using either an 8 bit or 4 bit parallel microcontroller interface.

DRAWING

WEG010016F - 1100x16 OLED Display Module 2.59"

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	Ground
2	VDD	5.0V	Supply Voltage for logic
3	NC	－	No connect
4	RS	H/L	H: DATA, L: Instruction code
5	R/W	H/L	H: Read(Module→MPU) L: Write(MPU→Module)
6	E	H,H→L	Chip enable signal
7	DB0	H/L	Data bit 0
8	DB1	H/L	Data bit 1
9	DB2	H/L	Data bit 2
10	DB3	H/L	Data bit 3
11	DB4	H/L	Data bit 4
12	DB5	H/L	Data bit 5
13	DB6	H/L	Data bit 6
14	DB7	H/L	Data bit 7
15	NC	－	No connect
16	NC	－	No connect

Mechanical Data

Item	Dimension	Unit
Dot Matrix	100 x 16	Dots
Module dimension	116.0 x 37.0 x 9.8	mm
View area	85.0 x 18.6	mm
Active area	64.95 x 11.15	mm
Dot size	0.6 x 0.65	mm
Dot pitch	0.65 x 0.70	mm
Panel Type	OLED, Monochrome
Duty	1/16

Absolute Maximum Ratings

Item	Symbol	Min	Max	Unit
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TST	-40	+85	°C
Supply Voltage For Logic	VDD-VSS	-0.3	5.3	V

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.8	5.0	5.3	V
Input High Volt.	VIH	－	0.8 VDD	－	VDD	V
Input Low Volt.	VIL	－	GND	－	0.2 VDD	V
Output High Volt.	VOH	IOH=-0.5mA	0.8 VDD	－	VDD	V
Output Low Volt.	VOL	IOL=0.5mA	GND	－	0.2 VDD	V
50% Check Board Operating Current	IDD	VDD=5V	28	35	40	mA

SKU: WEG10016W#FP5N00100-FC

Brand: Winstar

Available: No

Be the first to review this product

Price Breaks

Quantity

10+

Price

€21.10

€16.90

€16.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€21.10 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEG10016W#F08-FC in 'Related Product' section on the bottom page

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	Ground
2	VDD	5.0V	Supply Voltage for logic
3	NC	－	No connect
4	RS	H/L	H: DATA, L: Instruction code
5	R/W	H/L	H: Read(Module→MPU) L: Write(MPU→Module)
6	E	H,H→L	Chip enable signal
7	DB0	H/L	Data bit 0
8	DB1	H/L	Data bit 1
9	DB2	H/L	Data bit 2
10	DB3	H/L	Data bit 3
11	DB4	H/L	Data bit 4
12	DB5	H/L	Data bit 5
13	DB6	H/L	Data bit 6
14	DB7	H/L	Data bit 7
15	NC	－	No connect
16	NC	－	No connect

Mechanical Data

Item	Dimension	Unit
Dot Matrix	100 x 16	Dots
Module dimension	116.0 x 37.0 x 9.8	mm
View area	85.0 x 18.6	mm
Active area	64.95 x 11.15	mm
Dot size	0.6 x 0.65	mm
Dot pitch	0.65 x 0.70	mm
Panel Type	OLED, Monochrome
Duty	1/16

Absolute Maximum Ratings

Item	Symbol	Min	Max	Unit
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TST	-40	+85	°C
Supply Voltage For Logic	VDD-VSS	-0.3	5.3	V

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.8	5.0	5.3	V
Input High Volt.	VIH	－	0.8 VDD	－	VDD	V
Input Low Volt.	VIL	－	GND	－	0.2 VDD	V
Output High Volt.	VOH	IOH=-0.5mA	0.8 VDD	－	VDD	V
Output Low Volt.	VOL	IOL=0.5mA	GND	－	0.2 VDD	V
50% Check Board Operating Current	IDD	VDD=5V	28	35	40	mA

Products specifications

Brand	Winstar
Size	2.59"
Resolution	100x16
Active Area (mm)	64.95x11.15
Dot Size	0.60x0.65
Polarizer	Glare
Color	White
Power supply	5V
Display Interface	6800 (option 8080/SPI)
Display IC Controller	WS0010-TX
Constructive Structure	COB
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	Soldering PAD
Pin Nr.	16
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
