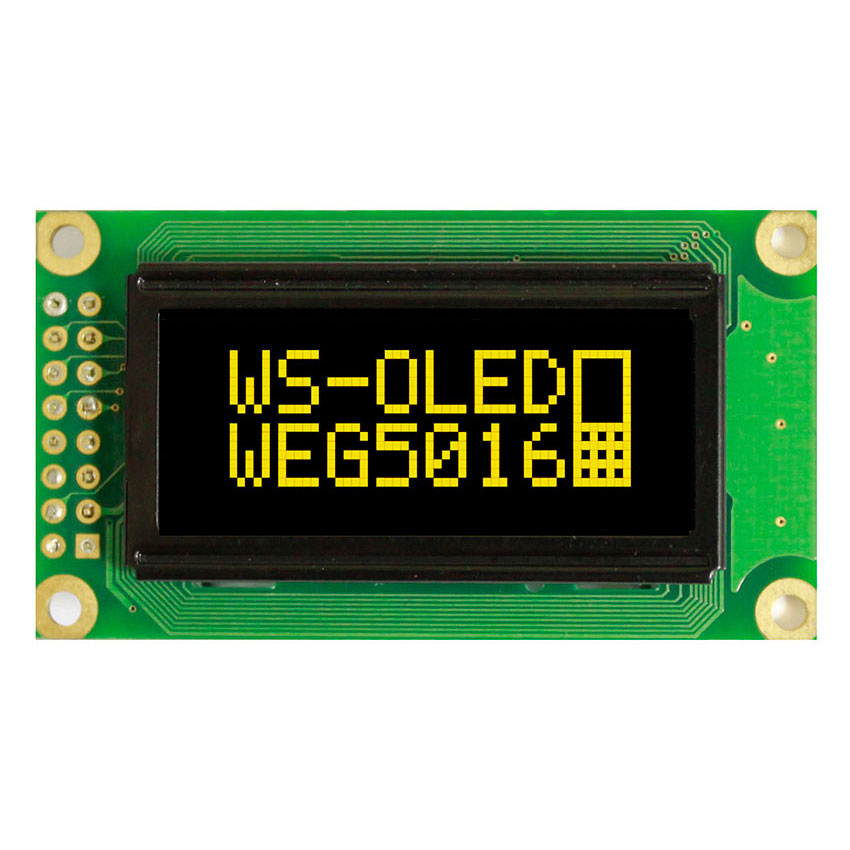

WEG5016L#AP3N00100-FC

PMOLED 1.26'' Graphic 50×16, Yellow color, COB, 3.3V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previus version with IC WS0010 EOL

Winstar monochrome 50x16 pixel OLED graphic display has the same outline size of 58.00 x 32.00 mm, VA size of 38.00 x 16.00 mm and pin out as Winstar STN LCD standard item no. WH0802A. If you are planning a new design and you are currently using similar Winstar WH0802A LCD modules, you can choose this display OLED. You will need a very small modification to your PCB layout to your design without changing the mechanical part for your product!

This OLED module is lightweight, low power consumption since it only powers the pixels that are necessary.  It has different interfaces available, default 6800 or options 8080 and SPI. These COB OLEDs have the advantages of easily fixed modules on customers’ applications because of having PCB board on it.



DRAWING

WEG005016A - 50x16 OLED Graphic Display 1.26"

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground Pin
2 VDD Voltage for logic
3 NC No Connection
4 RS Register Select
5 R/W Read/Write Control
6 E Chip Enable Signal
7~14 DB0~DB7 Data Bus
15~16 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 58.0 × 32.0 mm
Viewing area 38.0 × 16.0 mm
Active area 29.96 × 11.16 mm
Dot pitch 0.60 × 0.70 mm
Dot size 0.56 × 0.66 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD ---   3.3   V



SKU: WEG5016L#AP3N00100-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€9.60
€7.00
€6.90
€6.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€9.60 excl tax

DESCRIPTION

New 2021 version with WS0010-TX IC // Previus version with IC WS0010 EOL

Winstar monochrome 50x16 pixel OLED graphic display has the same outline size of 58.00 x 32.00 mm, VA size of 38.00 x 16.00 mm and pin out as Winstar STN LCD standard item no. WH0802A. If you are planning a new design and you are currently using similar Winstar WH0802A LCD modules, you can choose this display OLED. You will need a very small modification to your PCB layout to your design without changing the mechanical part for your product!

This OLED module is lightweight, low power consumption since it only powers the pixels that are necessary.  It has different interfaces available, default 6800 or options 8080 and SPI. These COB OLEDs have the advantages of easily fixed modules on customers’ applications because of having PCB board on it.



DRAWING

WEG005016A - 50x16 OLED Graphic Display 1.26"

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground Pin
2 VDD Voltage for logic
3 NC No Connection
4 RS Register Select
5 R/W Read/Write Control
6 E Chip Enable Signal
7~14 DB0~DB7 Data Bus
15~16 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 58.0 × 32.0 mm
Viewing area 38.0 × 16.0 mm
Active area 29.96 × 11.16 mm
Dot pitch 0.60 × 0.70 mm
Dot size 0.56 × 0.66 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD ---   3.3   V



Products specifications
Brand Winstar
Size 1.26"
Resolution 50x16
Active Area (mm) 29.96x11.16
Dot Size 0.56x0.66
Polarizer Glare
Color Yellow
Power supply 3.3V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
