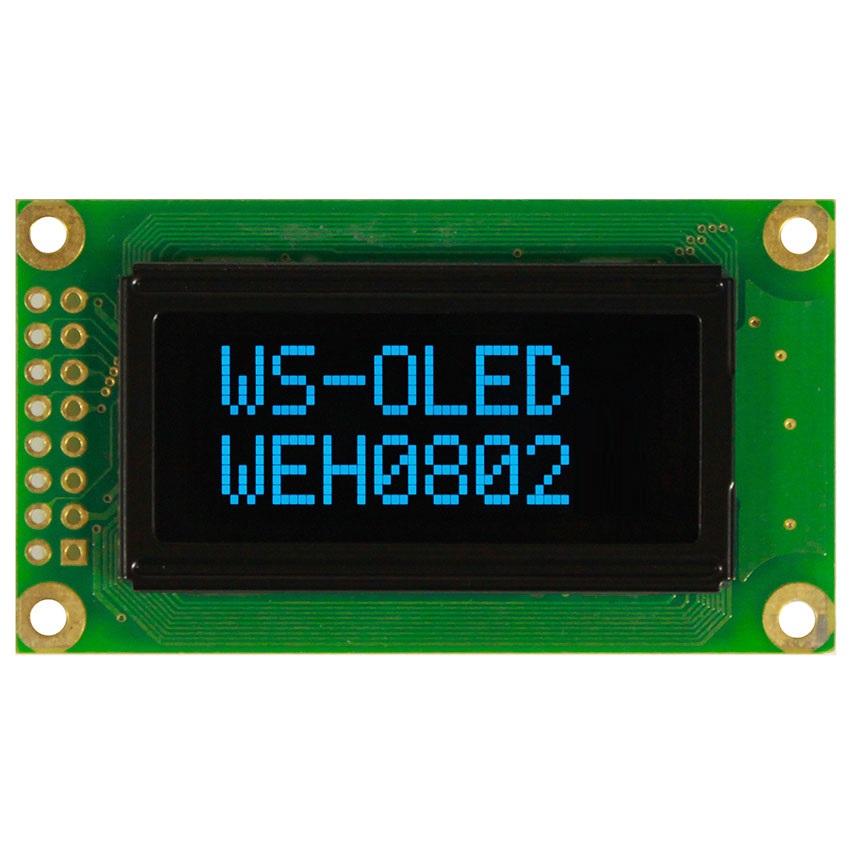

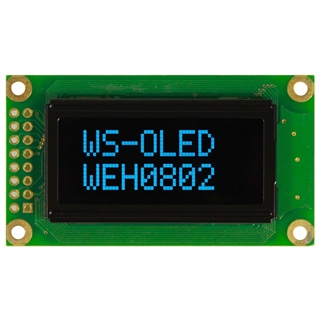

WEH0802B#AP5N00100-FC

PMOLED 1.2'' 8x2, Blue color, COB, 5V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 P/N WEH0802L#A00-FC in 'Related Product' section on the bottom page

8x2 OLED which has the same outline size, VA size and pin out as Winstar STN LCD item no. WH0802A. This OLED is Winstar 8x2 type (8 Characters x 2 lines). There are different interfaces optional; it is default 6800, available options 8080 and SPI. All Winstar standard OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).



DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground Pin
2 VDD Voltage for logic
3 NC No Connection
4 RS Register Select
5 R/W Read/Write Control
6 E Chip Enable Signal
7~14 DB0~DB7 Data Bus
15~16 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 58.0 × 32.0 mm
View area 38.0 × 16.0 mm
Active area 28.16 × 11.86 mm
Dot pitch 0.60 × 0.70 mm
Dot size 0.56 × 0.66 mm



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VDD --- 4.8 5.0 5.3 V



SKU: WEH0802B#AP5N00100-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€11.00
€8.10
€7.80
€7.50

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€11.00 excl tax

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 P/N WEH0802L#A00-FC in 'Related Product' section on the bottom page

8x2 OLED which has the same outline size, VA size and pin out as Winstar STN LCD item no. WH0802A. This OLED is Winstar 8x2 type (8 Characters x 2 lines). There are different interfaces optional; it is default 6800, available options 8080 and SPI. All Winstar standard OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).



DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground Pin
2 VDD Voltage for logic
3 NC No Connection
4 RS Register Select
5 R/W Read/Write Control
6 E Chip Enable Signal
7~14 DB0~DB7 Data Bus
15~16 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 58.0 × 32.0 mm
View area 38.0 × 16.0 mm
Active area 28.16 × 11.86 mm
Dot pitch 0.60 × 0.70 mm
Dot size 0.56 × 0.66 mm



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VDD --- 4.8 5.0 5.3 V



Products specifications
Brand Winstar
Size 1.2"
Resolution 8x2
Active Area (mm) 28.16x11.86
Dot Size 0.56x0.66
Polarizer Glare
Color Blue
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
