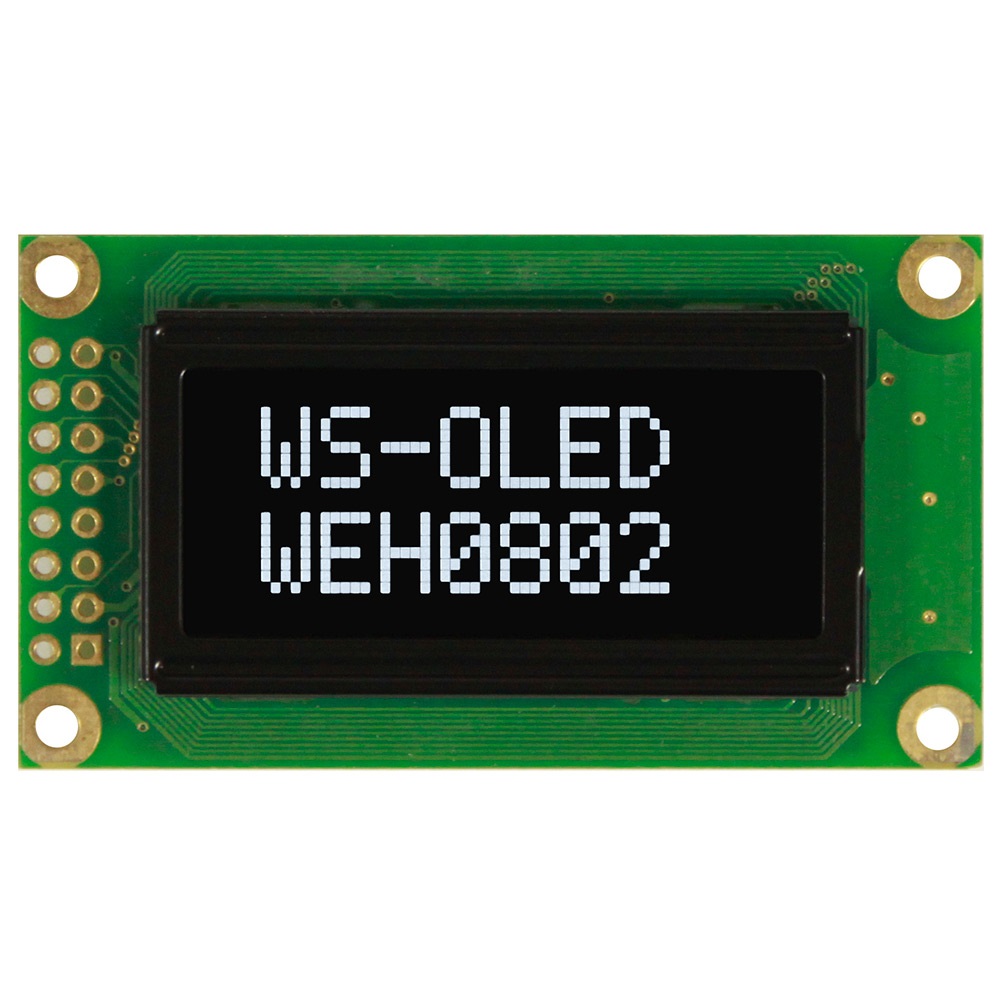

WEH0802W#AP5N00100-FC

PMOLED 1.2'' 8x2, White color, COB, 5V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEH0802W#A00-FC in 'Related Product' section on the bottom page

8x2 OLED which has the same outline size, VA size and pin out as Winstar STN LCD item no. WH0802A. This OLED is Winstar 8x2 type (8 Characters x 2 lines). There are different interfaces optional; it is default 6800, available options 8080 and SPI. All Winstar standard OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).

DRAWING

8x2 OLED Character Display - WEH000802A - Winstar Display

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	VSS	Ground Pin
2	VDD	Voltage for logic
3	NC	No Connection
4	RS	Register Select
5	R/W	Read/Write Control
6	E	Chip Enable Signal
7~14	DB0~DB7	Data Bus
15~16	NC	No Connection

Mechanical Data

Item	Dimension	Unit
Module dimension	58.0 × 32.0	mm
View area	38.0 × 16.0	mm
Active area	28.16 × 11.86	mm
Dot pitch	0.60 × 0.70	mm
Dot size	0.56 × 0.66	mm

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	4.8	5.0	5.3	V

SKU: WEH0802W#AP5N00100-FC

Brand: Winstar

Available: No

Be the first to review this product

Price Breaks

Quantity

10+

25+

Price

€9.70

€7.10

€6.90

€6.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€9.70 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEH0802W#A00-FC in 'Related Product' section on the bottom page

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	VSS	Ground Pin
2	VDD	Voltage for logic
3	NC	No Connection
4	RS	Register Select
5	R/W	Read/Write Control
6	E	Chip Enable Signal
7~14	DB0~DB7	Data Bus
15~16	NC	No Connection

Mechanical Data

Item	Dimension	Unit
Module dimension	58.0 × 32.0	mm
View area	38.0 × 16.0	mm
Active area	28.16 × 11.86	mm
Dot pitch	0.60 × 0.70	mm
Dot size	0.56 × 0.66	mm

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	4.8	5.0	5.3	V

Products specifications

Brand	Winstar
Size	1.2"
Resolution	8x2
Active Area (mm)	28.16x11.86
Dot Size	0.56x0.66
Polarizer	Glare
Color	White
Power supply	5V
Display Interface	6800 (option 8080/SPI)
Display IC Controller	WS0010-TX
Constructive Structure	COB
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	Soldering PAD
Pin Nr.	16
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
