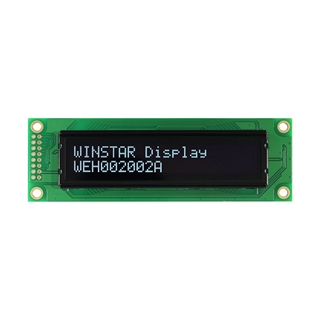

WEH2002W#AP3N00100-FC

PMOLED 3.08'' 20x2, White color, COB, 3.3V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010

The OLED 20x2 has the same outline size, VA size and pin out as Winstar LCD item no. WH2002A. We suggest customers to consider using this low power 20x2 character OLED display to replace your existing STN character display. There are different interfaces optional; it is default 6800, available options 8080 and SPI. All Winstar standard OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).

  • Faster response time "At +25 ℃ 10 μsec."
  • Unlimited viewing angle "Up to 175 degree"
  • Thin – No need of backlight, self emitting
  • High Brightness
  • High contrast ratio "Up to 2000:1"
  • Wide Operation Temperature "-40 ℃ ~ 80 ℃"
  • Lower power consumption - reduce CO2 emissions



DRAWING

WEH002002A - Character OLED Display, OLED 20x2

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC No connect
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC No connect
16 NC No connect

General Specification

ItemDimensionUnit
Number of Characters 20 characters × 2 Lines
Module dimension 116.0 × 37.0 × 9.8 mm
View area 85.0 × 18.6 mm
Active area 77.3 × 11.85 mm
Dot size 0.6 × 0.65 mm
Dot pitch 0.65× 0.70 mm
Character size 3.2 × 5.55 mm
Character pitch 3.9 × 6.3 mm
Panel type OLED , Monochrome
Duty 1/16

Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C

Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS   3.3   V



SKU: WEH2002W#AP3N00100-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
Price
€19.90
€15.90
€15.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€19.90 excl tax

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010

The OLED 20x2 has the same outline size, VA size and pin out as Winstar LCD item no. WH2002A. We suggest customers to consider using this low power 20x2 character OLED display to replace your existing STN character display. There are different interfaces optional; it is default 6800, available options 8080 and SPI. All Winstar standard OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).

  • Faster response time "At +25 ℃ 10 μsec."
  • Unlimited viewing angle "Up to 175 degree"
  • Thin – No need of backlight, self emitting
  • High Brightness
  • High contrast ratio "Up to 2000:1"
  • Wide Operation Temperature "-40 ℃ ~ 80 ℃"
  • Lower power consumption - reduce CO2 emissions



DRAWING

WEH002002A - Character OLED Display, OLED 20x2

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC No connect
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC No connect
16 NC No connect

General Specification

ItemDimensionUnit
Number of Characters 20 characters × 2 Lines
Module dimension 116.0 × 37.0 × 9.8 mm
View area 85.0 × 18.6 mm
Active area 77.3 × 11.85 mm
Dot size 0.6 × 0.65 mm
Dot pitch 0.65× 0.70 mm
Character size 3.2 × 5.55 mm
Character pitch 3.9 × 6.3 mm
Panel type OLED , Monochrome
Duty 1/16

Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C

Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS   3.3   V



Products specifications
Brand Winstar
Size 3.08"
Resolution 20x2
Active Area (mm) 77.30x11.85
Dot Size 0.60x0.65
Polarizer Glare
Color White
Power supply 3.3V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
