WEN25664G#DP3D00000-FC

PMOLED 5.5" Graphic 256x64, Green color, COF + PCB, 3V, Interface 6800,8080,SPI, Glare, Capacitive touch panel I2C (IC GT911)

DESCRIPTION

Industrial grade 5.5-inch COF Graphic OLED with frame bezel and Capacitive Touchscreen, made of resolution 256x64 dots. This OLED module is built-in with SSD1322 COF IC; it supports 6800/8080 8-bit parallel, and 3-wire/4-wire SPI interface, supports 16 (4-bit) gray scale, supply voltage for logic 3V, the display current with 50% checkerboard is 240mA @3.0V VDD (typical value), 1/64 driving duty. This model is having Capacitive Touchscreen on module; it is built-in with GT911 IC which supports I2C interface, one detect point for CTP, normal glare surface glass. The module is having PCB on module which is suitable for customers to use wire connection; customers do not need to develop extra PCB for their applications. Also, we integrated VCC circuit on PCB to make it easier for customers to use. This module is also supporting many wiring methods like PIN, FFC, CN, FPC.

There are four mounting holes on PCB board which is an easy method for customers to fix modules on their applications. This OLED module is suitable for smart home application, medical device, industrial control, etc. This model can be operating at temperatures from -20°C to +70°C; its storage temperatures range from -30°C to +80°C.

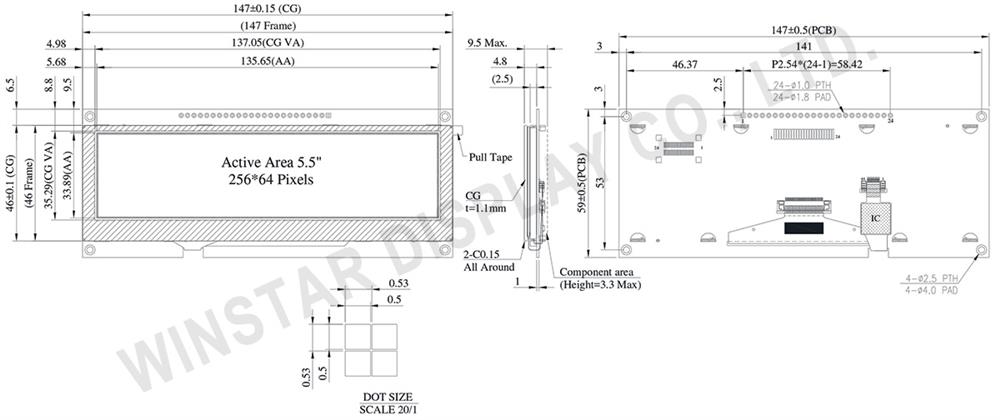

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin Number

Symbol

I/O

Function

VSS

Ground.

VDD

Power Supply for Core Logic Circuit
Power supply pin for core logic operation. A capacitor is required to connect between this pin and VSS

N.C.

Reserved Pin
The N.C. pin between function pins are reserved for compatible and flexible design.

D/C#

Data/Command Control
This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the content at D[7:0] will be interpreted as data.
When the pin is pulled LOW, the content at D[7:0] will be interpreted as command.

R/W#
(WR#)

Read/Write Select or Write
This pin is MCU interface input. When interfacing to a 68XX-series microprocessor, this pin will be used as Read/Write (R/W#) selection input. Pull this pin to “High” for read mode and pull it to “Low” for write mode.
When 80XX interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled low and the CS# is pulled low.
When serial mode is selected, this pin must be connected to VSS.

E/RD#

Read/Write Enable or Read
This pin is MCU interface input. When interfacing to a 68XX-series microprocessor, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled high and the CS# is pulled low.
When connecting to an 80XX-microprocessor, this pin receives the Read (RD#) signal. Data read operation is initiated when this pin is pulled low and CS# is pulled low.
When serial mode is selected, this pin must be connected to VSS.

7~14

DB0

I/O

Host Data Input/Output Bus
These pins are 8-bit bi-directional data bus to be connected to the microprocessor’s data bus.
When serial mode is selected, D1 will be the serial data input SDIN and D0 will be the serial clock input SCLK.

DB1

DB2

DB3

DB4

DB5

DB6

DB7

Reserved Pin
The N.C. pin between function pins are reserved for compatible and flexible design.

RES#

This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.

CS#

Data/Command Control
This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW.

Reserved Pin
The N.C. pin between function pins are reserved for compatible and flexible design.

BS1

Communicating Protocol Select
These pins are MCU interface selection input. See the following table:

BS[1:0]	Bus Interface Selection
00	4 line SPI
01	3 line SPI
10	8-bit 8080 parallel
11	8-bit 6800 parallel

Note
(1) 0 is connected to VSS
(2) 1 is connected to VDD

BS0

TP_SCK

I2C clock input

TP_SDA

I2C data input and output

TP_INT

External interrupt to the host

TP_RST

External Reset, Low is active

General Specification

Item	Dimension	Unit
Dot Matrix	256 × 64 Dots	－
Module dimension	147.0 × 59 × 4.8	mm
Active Area	135.65 × 33.89	mm
Pixel Size	0.5 × 0.5	mm
Pixel Pitch	0.53 × 0.53	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/64 Duty
Gray Scale	4 bits
OLED IC	SSD1322
OLED Interface	6800, 8080, SPI
Size	5.5 inch

CTP IC	GT911
Detect Point	1
CTP Interface	I2C
Surface	Normal Glare

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Display	VDD	-0.3	4	V
Operating Temperature	TOP	-20	+70	°C
Storage Temperature	TSTG	-30	+80	°C

Electronical Characteristics

DC Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	－	2.8	3.0	3.3	V
High Level Input	VIH	－	0.8×VDD	－	VDD	V
Low Level Input	VIL	－	0	－	0.2×VDD	V
High Level Output	VOH	－	0.9×VDD	－	VDD	V
Low Level Output	VOL	－	0	－	0.1×VDD	V
50% Check Board operating Current	IDD	VDD =3V	－	240	400	mA

SKU: WEN25664G#DP3D00000-FC

Brand: Winstar

Available: No

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€82.70

€74.50

€70.50

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€82.70 excl tax
