WEO12832W#G00-FC

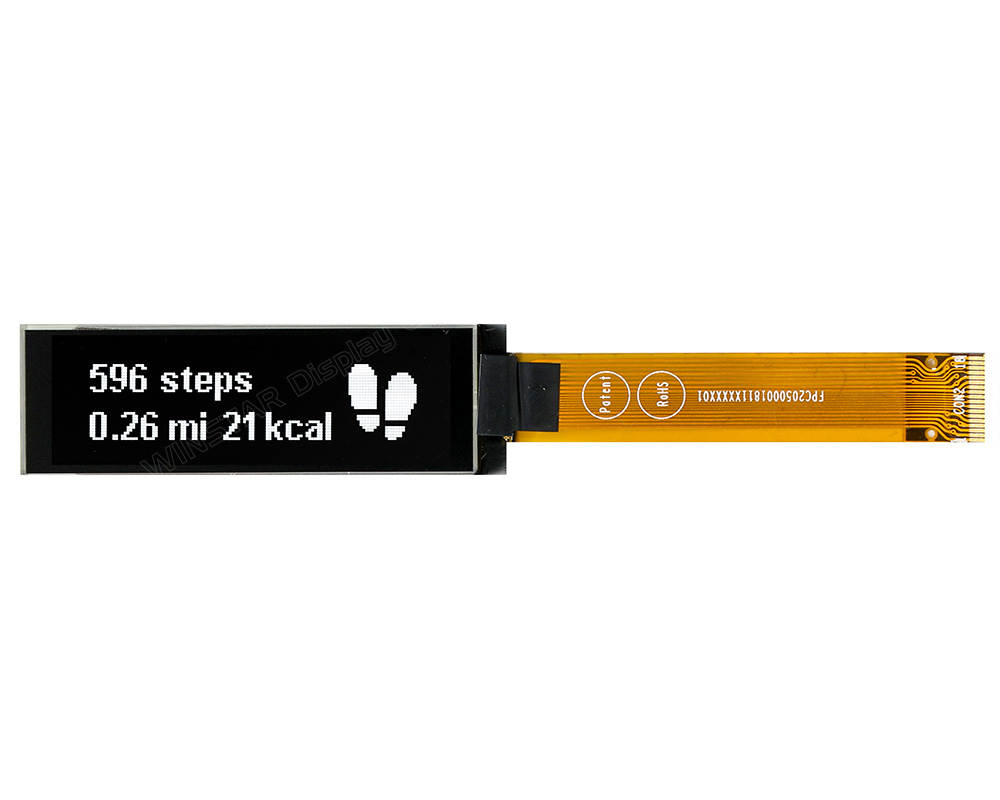

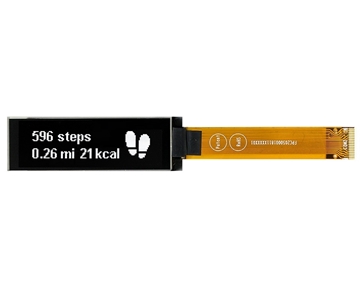

Picture of WEO12832W#G00-FC Picture of WEO12832W#G00-FC
PMOLED 1.71'' 128x32, White color, COG, 3V, Interface SPI, I2C, Anti-glare

DESCRIPTION



1.71 inch passive matrix OLED display module which is made of 128x32 dots. The module is built in with SSD1307 IC, it supports I2C and 4-Wire SPI interface, 3V power supply, 1/32 duty cycle.

COG structure OLED display which is ultra thin and no need of backlight; it’s lightweight and low power consumption. This 1.71 inch OLED module is suitable for smart home application, portable device, health device, testing equipment, etc.  Operating temperatures from -40℃ to +80℃;  storage temperatures range from -40℃ to +85℃.

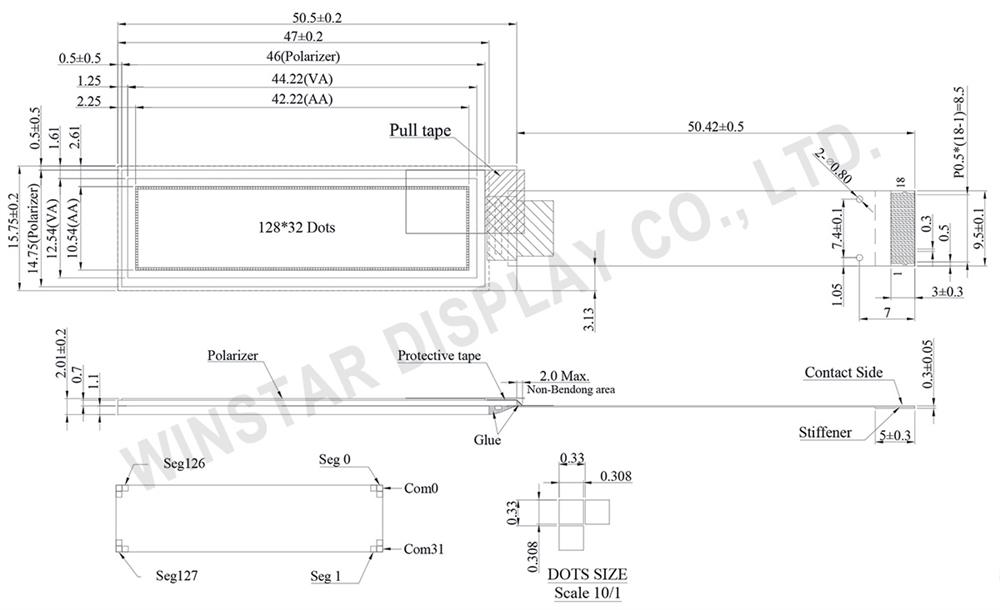

DRAWING



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 N.C. (GND) Reserved Pin (Supporting Pin)
The supporting pins can reduce the influences from stresses on the function pins. These pins must be connected to external ground.
2 VCC Power Supply for OEL Panel
This is the most positive voltage supply pin of the chip. A stabilization capacitor should be connected between this pin and VSS when the converter is used. It must be connected to external source when the converter is not used.
3 VLSS Ground of Analog Circuit
This is an analog ground pin. It should be connected to VSS externally.
4 VSS Ground of Logic Circuit
This is a ground pin. It acts as a reference for the logic pins. It must be connected to external ground.
5 VDD Power Supply for Logic
This is a voltage supply pin. It must be connected to external source.
6 CS# Chip Select
This pin is the chip select input. The chip is enabled for MCU communication only when CS# is pulled low.
7 RES# Power Reset for Controller and Driver
This pin is reset signal input. When the pin is low, initialization of the chip is executed.
8 D/C# Data/Command Control
When the pin is pulled high and serial interface mode is selected, the data at SDIN is treated as data. When it is pulled low, the data at SDIN will be transferred to the command register. In I2C mode, this pin acts as SA0 for slave address selection.
9~11 D0~D2 Host Data Input/Output Bus
When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
12 IREF Current Reference for Brightness Adjustment
This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current lower than 12.5μA.
13 VCOMH Voltage Output High Level for COM Signal
This pin is the input pin for the voltage output high level for COM signals.  A capacitor should be connected between this pin and VSS.
14 VCC Power Supply for OEL Panel
This is the most positive voltage supply pin of the chip. A stabilization capacitor should be connected between this pin and VSS when the converter is used. It must be connected to external source when the converter is not used.
15,16 BS0 Communicating Protocol Select
These pins are MCU interface selection input. See the following table:
 BS0BS1
I2C 0 1
3-wire SPI 1 0
4-wire SPI 0 0
BS1
17 VLSS Ground of Analog Circuit
This is an analog ground pin. It should be connected to VSS externally.
18 N.C. (GND) Reserved Pin (Supporting Pin)
The supporting pins can reduce the influences from stresses on the function pins. These pins must be connected to external ground.



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 × 32 Dots
Module dimension 50.50 × 15.75 × 2.01 mm
Active Area 42.22 × 10.54 mm
Pixel Size 0.308 × 0.308 mm
Pixel Pitch 0.33 × 0.33 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/32 Duty
IC SSD1307
Interface SPI, I2C
Size 1.71 inch



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD － 2.8 3.0 3.3 V
Supply Voltage for Display VCC － 11.5 12.0 12.5 V
High Level Input VIH － 0.8×VDD － － V
Low Level Input VIL － 0 － 0.2×VDD V
High Level Output VOH － 0.9×VDD － － V
Low Level Output VOL － － － 0.1×VDD V
Operating Current for VCC (Full ON) ICC VCC=12.0V － 14.5 19.0 mA



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 4.0 V
Supply Voltage for Display VCC 0 16.0 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



FPC options

DrawingFPC LengthPINPitchZIF FPC or HOTBAR FPCInterfaceFPC No.Create Date
FPC2050001811XXXXX01_WEO012832GLAP3N00000 51.5 18 0.5 ZIF  SPI,I2C FPC2050001811XXXXX01 20170607
FPC2050001811XXXXX05_WEO012832GWAP3N00F00 121.08 18 0.5 ZIF  SPI,I2C FPC2050001811XXXXX05 20181030


SKU: WEO12832W#G00-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
50+
100+
Price
€8.30
€6.10
€6.00
€5.80
€5.60
€5.20

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€8.30 excl tax

DESCRIPTION



1.71 inch passive matrix OLED display module which is made of 128x32 dots. The module is built in with SSD1307 IC, it supports I2C and 4-Wire SPI interface, 3V power supply, 1/32 duty cycle.

COG structure OLED display which is ultra thin and no need of backlight; it’s lightweight and low power consumption. This 1.71 inch OLED module is suitable for smart home application, portable device, health device, testing equipment, etc.  Operating temperatures from -40℃ to +80℃;  storage temperatures range from -40℃ to +85℃.



DRAWING



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 N.C. (GND) Reserved Pin (Supporting Pin)
The supporting pins can reduce the influences from stresses on the function pins. These pins must be connected to external ground.
2 VCC Power Supply for OEL Panel
This is the most positive voltage supply pin of the chip. A stabilization capacitor should be connected between this pin and VSS when the converter is used. It must be connected to external source when the converter is not used.
3 VLSS Ground of Analog Circuit
This is an analog ground pin. It should be connected to VSS externally.
4 VSS Ground of Logic Circuit
This is a ground pin. It acts as a reference for the logic pins. It must be connected to external ground.
5 VDD Power Supply for Logic
This is a voltage supply pin. It must be connected to external source.
6 CS# Chip Select
This pin is the chip select input. The chip is enabled for MCU communication only when CS# is pulled low.
7 RES# Power Reset for Controller and Driver
This pin is reset signal input. When the pin is low, initialization of the chip is executed.
8 D/C# Data/Command Control
When the pin is pulled high and serial interface mode is selected, the data at SDIN is treated as data. When it is pulled low, the data at SDIN will be transferred to the command register. In I2C mode, this pin acts as SA0 for slave address selection.
9~11 D0~D2 Host Data Input/Output Bus
When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
12 IREF Current Reference for Brightness Adjustment
This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current lower than 12.5μA.
13 VCOMH Voltage Output High Level for COM Signal
This pin is the input pin for the voltage output high level for COM signals.  A capacitor should be connected between this pin and VSS.
14 VCC Power Supply for OEL Panel
This is the most positive voltage supply pin of the chip. A stabilization capacitor should be connected between this pin and VSS when the converter is used. It must be connected to external source when the converter is not used.
15,16 BS0 Communicating Protocol Select
These pins are MCU interface selection input. See the following table:
 BS0BS1
I2C 0 1
3-wire SPI 1 0
4-wire SPI 0 0
BS1
17 VLSS Ground of Analog Circuit
This is an analog ground pin. It should be connected to VSS externally.
18 N.C. (GND) Reserved Pin (Supporting Pin)
The supporting pins can reduce the influences from stresses on the function pins. These pins must be connected to external ground.



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 × 32 Dots
Module dimension 50.50 × 15.75 × 2.01 mm
Active Area 42.22 × 10.54 mm
Pixel Size 0.308 × 0.308 mm
Pixel Pitch 0.33 × 0.33 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/32 Duty
IC SSD1307
Interface SPI, I2C
Size 1.71 inch



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD － 2.8 3.0 3.3 V
Supply Voltage for Display VCC － 11.5 12.0 12.5 V
High Level Input VIH － 0.8×VDD － － V
Low Level Input VIL － 0 － 0.2×VDD V
High Level Output VOH － 0.9×VDD － － V
Low Level Output VOL － － － 0.1×VDD V
Operating Current for VCC (Full ON) ICC VCC=12.0V － 14.5 19.0 mA



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 4.0 V
Supply Voltage for Display VCC 0 16.0 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



FPC options

DrawingFPC LengthPINPitchZIF FPC or HOTBAR FPCInterfaceFPC No.Create Date
FPC2050001811XXXXX01_WEO012832GLAP3N00000 51.5 18 0.5 ZIF  SPI,I2C FPC2050001811XXXXX01 20170607
FPC2050001811XXXXX05_WEO012832GWAP3N00F00 121.08 18 0.5 ZIF  SPI,I2C FPC2050001811XXXXX05 20181030


Products specifications
Brand Winstar
Size 1.71"
Resolution 128x32
Active Area (mm) 42.22x10.54
Dot Size 0.30x0.30
Polarizer Anti-glare
Color White
Power supply 3V
Interface SPI/I2C
Built-in Controller SSD1307ZD
Structure COG
Frame No
Touch Panel No touch
Display Connection FPC per ZIF Connector
Pin Nr. 18
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 1.71"
Resolution 128x32
Active Area (mm) 42.22x10.54
Dot Size 0.30x0.30
Polarizer Anti-glare
Color White
Power supply 3V
Interface SPI/I2C
Built-in Controller SSD1307ZD
Structure COG
Frame No
Touch Panel No touch
Display Connection FPC per ZIF Connector
Pin Nr. 18
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
