WEO12864L#A01-FC

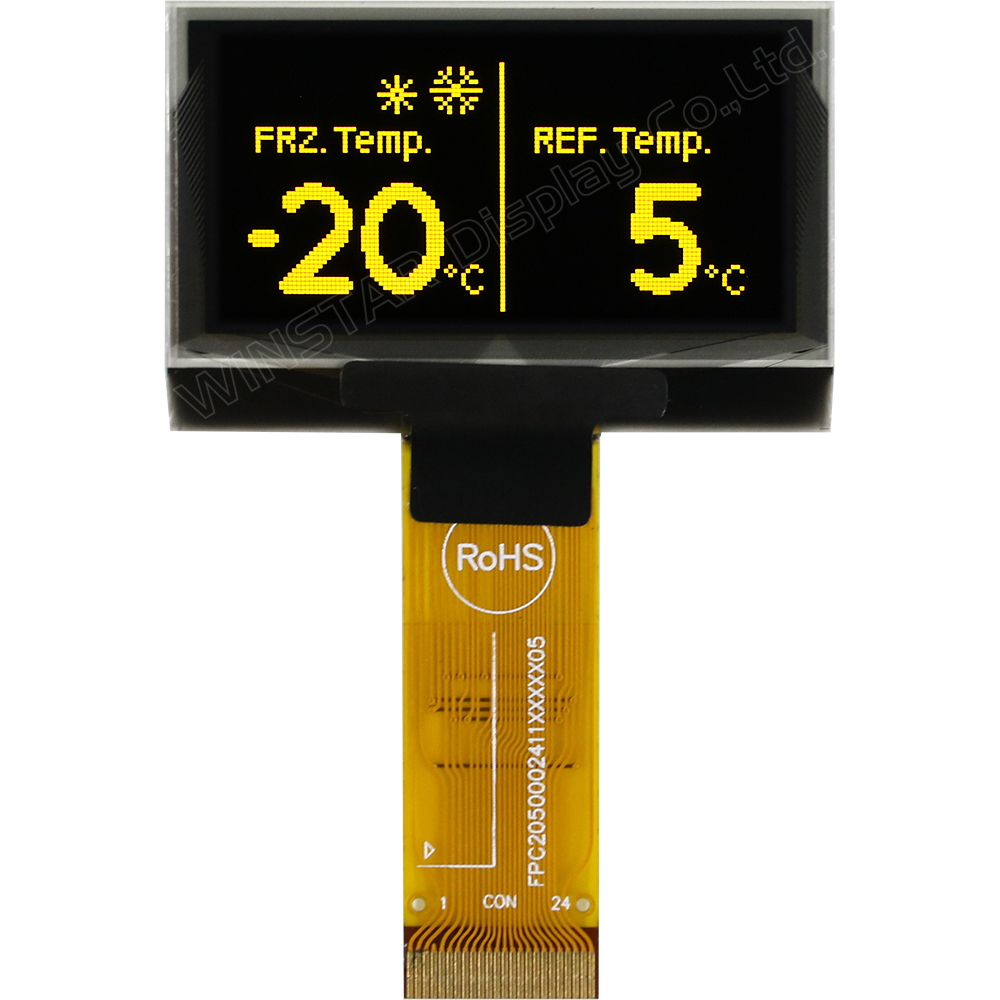

PMOLED 1.54'' 128x64, Yellow color, COG, 3V, Interface 6800,8080,SPI,I2C, Anti-glare

DESCRIPTION

Winstar 1.54 inch SPI OLED Display is made of 128x64 pixels, diagonal size 1.54 inch. This graphic display is having the module dimension of 42.04 x 27.22 mm and AA size of 35.05 x 17.51 mm; it is built in with SSD1309 controller IC and it communicates via 6800/8080 8-bit parallel, I2C and 4-wire serial SPI interface. This OLED display is based on a chip-on-glass technology and therefore it is very thin, only 1.45 mm in depth.

COG structure OLED display this OLED module is lightweight, low power and very thin, it is suitable for wall / meter devices, home applications, POS system, Cloud/IoT system, handheld instruments, intelligent technology devices, energy systems, automotive, communication systems, medical instrument, etc. Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +80℃.

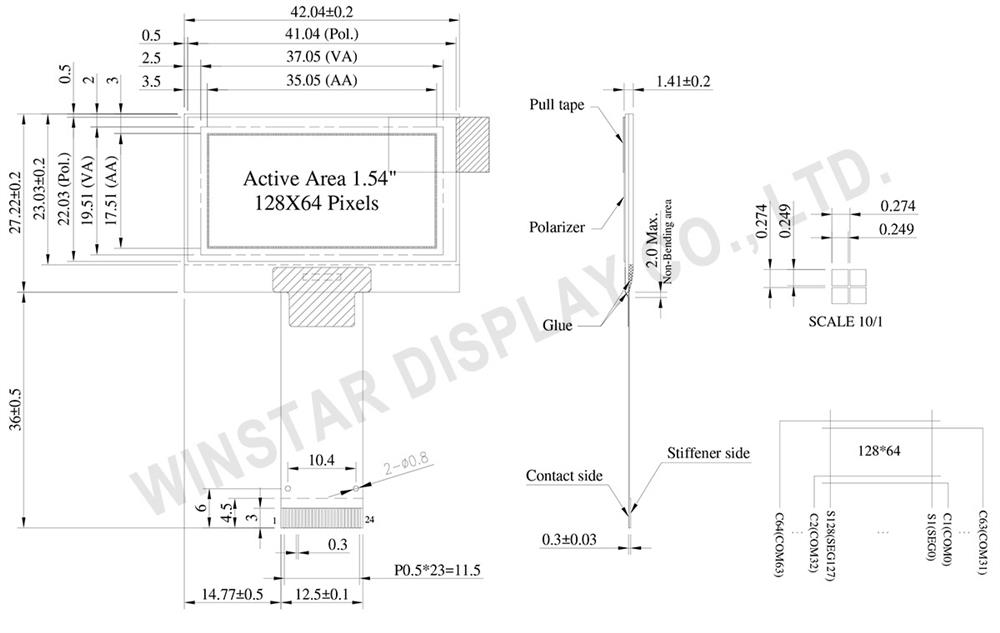

DRAWING

1.54 OLED, SPI OLED, SPI OLED Display, OLED 128x64 SPI, 128x64 OLED SPI - WEO012864A

SPECIFICATIONS

Interface Pin Function

No.	Symbol	Function
1	NC(GND)	No connection
2	VLSS	This is an analog ground pin
3	VSS	Ground.
4	NC	No connection
5	VDD	Power supply pin for core logic operation
6	BS1	MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2, BS1 and BS0 are pin select Note (1) 0 is connected to VSS (2) 1 is connected to VDD
7	BS2
8	CS#	This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).
9	RES#	This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation.
10	D/C#	This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data. When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register. In I2C mode, this pin acts as SA0 for slave address selection. When 3-wire serial interface is selected, this pin must be connected to VSS.
11	R/W#	This pin is read / write control input pin connecting to the MCU interface. When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW. When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS.
12	E/RD#	This pin is MCU interface input. When 6800 interface mode is selected, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH and the chip is selected. When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS.
13-20	D0~D7	These pins are bi-directional data bus connecting to the MCU data bus. Unused pins are recommended to tie LOW. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
21	IREF	This pin is the segment output current reference pin. IREF is supplied externally.
22	VCOMH	COM signal deselected voltage level. A capacitor should be connected between this pin and VSS.
23	VCC	Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
24	NC(GND)	No connection

Mechanical Data

Item	Dimension	Unit
Dot Matrix	128 × 64	dots
Module dimension	42.04 × 27.22 × 1.45	mm
Active Area	35.05 × 17.51	mm
Pixel Size	0.249 × 0.249	mm
Pixel Pitch	0.274 × 0.274	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/64 Duty

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	－	2.8	3	3.3	V
Supply Voltage for Display	VCC	－	12	12.5	13	V
High Level Input	VIH	－	0.8×VDD	－	－	V
Low Level Input	VIL	－	－	－	0.2×VDD	V
High Level Output	VOH	－	0.9×VDD	－	－	V
Low Level Output	VOL	－	－	－	0.1×VDD	V
50% Check Board operating Current		VCC =12.5V	－	16	45	mA

FPC options

Drawing	FPC Length	PIN	Pitch	ZIF FPC or HOTBAR FPC	Interface	FPC No.	Create Date
	37.19	24	0.5	ZIF	6800/8080/4-SPI/I2C	FPC2050002411XXXXX05	20160627
	51.05	30	0.5	ZIF	6800/8080/4-SPI/I2C	FPC2050003011XXXXX32	20190926

DRAWING

SPECIFICATIONS

Interface Pin Function

No.	Symbol	Function
1	NC(GND)	No connection
2	VLSS	This is an analog ground pin
3	VSS	Ground.
4	NC	No connection
5	VDD	Power supply pin for core logic operation
6	BS1	MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2, BS1 and BS0 are pin select Note (1) 0 is connected to VSS (2) 1 is connected to VDD
7	BS2
8	CS#	This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).
9	RES#	This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation.
10	D/C#	This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data. When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register. In I2C mode, this pin acts as SA0 for slave address selection. When 3-wire serial interface is selected, this pin must be connected to VSS.
11	R/W#	This pin is read / write control input pin connecting to the MCU interface. When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW. When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS.
12	E/RD#	This pin is MCU interface input. When 6800 interface mode is selected, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH and the chip is selected. When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS.
13-20	D0~D7	These pins are bi-directional data bus connecting to the MCU data bus. Unused pins are recommended to tie LOW. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
21	IREF	This pin is the segment output current reference pin. IREF is supplied externally.
22	VCOMH	COM signal deselected voltage level. A capacitor should be connected between this pin and VSS.
23	VCC	Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
24	NC(GND)	No connection

Mechanical Data

Item	Dimension	Unit
Dot Matrix	128 × 64	dots
Module dimension	42.04 × 27.22 × 1.45	mm
Active Area	35.05 × 17.51	mm
Pixel Size	0.249 × 0.249	mm
Pixel Pitch	0.274 × 0.274	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/64 Duty

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	－	2.8	3	3.3	V
Supply Voltage for Display	VCC	－	12	12.5	13	V
High Level Input	VIH	－	0.8×VDD	－	－	V
Low Level Input	VIL	－	－	－	0.2×VDD	V
High Level Output	VOH	－	0.9×VDD	－	－	V
Low Level Output	VOL	－	－	－	0.1×VDD	V
50% Check Board operating Current		VCC =12.5V	－	16	45	mA

FPC options

Drawing	FPC Length	PIN	Pitch	ZIF FPC or HOTBAR FPC	Interface	FPC No.	Create Date
	37.19	24	0.5	ZIF	6800/8080/4-SPI/I2C	FPC2050002411XXXXX05	20160627
	51.05	30	0.5	ZIF	6800/8080/4-SPI/I2C	FPC2050003011XXXXX32	20190926

SKU: WEO12864L#A01-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

25+

Price

€10.30

€7.60

€7.50

€7.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€10.30 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

No.	Symbol	Function
1	NC(GND)	No connection
2	VLSS	This is an analog ground pin
3	VSS	Ground.
4	NC	No connection
5	VDD	Power supply pin for core logic operation
6	BS1	MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2, BS1 and BS0 are pin select Note (1) 0 is connected to VSS (2) 1 is connected to VDD
7	BS2
8	CS#	This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).
9	RES#	This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation.
10	D/C#	This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data. When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register. In I2C mode, this pin acts as SA0 for slave address selection. When 3-wire serial interface is selected, this pin must be connected to VSS.
11	R/W#	This pin is read / write control input pin connecting to the MCU interface. When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW. When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS.
12	E/RD#	This pin is MCU interface input. When 6800 interface mode is selected, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH and the chip is selected. When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS.
13-20	D0~D7	These pins are bi-directional data bus connecting to the MCU data bus. Unused pins are recommended to tie LOW. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
21	IREF	This pin is the segment output current reference pin. IREF is supplied externally.
22	VCOMH	COM signal deselected voltage level. A capacitor should be connected between this pin and VSS.
23	VCC	Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
24	NC(GND)	No connection

Mechanical Data

Item	Dimension	Unit
Dot Matrix	128 × 64	dots
Module dimension	42.04 × 27.22 × 1.45	mm
Active Area	35.05 × 17.51	mm
Pixel Size	0.249 × 0.249	mm
Pixel Pitch	0.274 × 0.274	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/64 Duty

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	－	2.8	3	3.3	V
Supply Voltage for Display	VCC	－	12	12.5	13	V
High Level Input	VIH	－	0.8×VDD	－	－	V
Low Level Input	VIL	－	－	－	0.2×VDD	V
High Level Output	VOH	－	0.9×VDD	－	－	V
Low Level Output	VOL	－	－	－	0.1×VDD	V
50% Check Board operating Current		VCC =12.5V	－	16	45	mA

FPC options

Drawing	FPC Length	PIN	Pitch	ZIF FPC or HOTBAR FPC	Interface	FPC No.	Create Date
	37.19	24	0.5	ZIF	6800/8080/4-SPI/I2C	FPC2050002411XXXXX05	20160627
	51.05	30	0.5	ZIF	6800/8080/4-SPI/I2C	FPC2050003011XXXXX32	20190926

DRAWING

SPECIFICATIONS

Interface Pin Function

No.	Symbol	Function
1	NC(GND)	No connection
2	VLSS	This is an analog ground pin
3	VSS	Ground.
4	NC	No connection
5	VDD	Power supply pin for core logic operation
6	BS1	MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2, BS1 and BS0 are pin select Note (1) 0 is connected to VSS (2) 1 is connected to VDD
7	BS2
8	CS#	This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).
9	RES#	This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation.
10	D/C#	This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data. When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register. In I2C mode, this pin acts as SA0 for slave address selection. When 3-wire serial interface is selected, this pin must be connected to VSS.
11	R/W#	This pin is read / write control input pin connecting to the MCU interface. When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW. When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS.
12	E/RD#	This pin is MCU interface input. When 6800 interface mode is selected, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH and the chip is selected. When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be connected to VSS.
13-20	D0~D7	These pins are bi-directional data bus connecting to the MCU data bus. Unused pins are recommended to tie LOW. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
21	IREF	This pin is the segment output current reference pin. IREF is supplied externally.
22	VCOMH	COM signal deselected voltage level. A capacitor should be connected between this pin and VSS.
23	VCC	Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
24	NC(GND)	No connection

Mechanical Data

Item	Dimension	Unit
Dot Matrix	128 × 64	dots
Module dimension	42.04 × 27.22 × 1.45	mm
Active Area	35.05 × 17.51	mm
Pixel Size	0.249 × 0.249	mm
Pixel Pitch	0.274 × 0.274	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/64 Duty

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	－	2.8	3	3.3	V
Supply Voltage for Display	VCC	－	12	12.5	13	V
High Level Input	VIH	－	0.8×VDD	－	－	V
Low Level Input	VIL	－	－	－	0.2×VDD	V
High Level Output	VOH	－	0.9×VDD	－	－	V
Low Level Output	VOL	－	－	－	0.1×VDD	V
50% Check Board operating Current		VCC =12.5V	－	16	45	mA

FPC options

Drawing	FPC Length	PIN	Pitch	ZIF FPC or HOTBAR FPC	Interface	FPC No.	Create Date
	37.19	24	0.5	ZIF	6800/8080/4-SPI/I2C	FPC2050002411XXXXX05	20160627
	51.05	30	0.5	ZIF	6800/8080/4-SPI/I2C	FPC2050003011XXXXX32	20190926

Products specifications

Brand	Winstar
Size	1.54"
Resolution	128x64
Active Area (mm)	35.05x17.51
Dot Size	0.24x0.24
Polarizer	Anti-glare
Color	Yellow
Power supply	3V
Interface	6800/8080/SPI/I2C
Built-in Controller	SSD1309ZC
Structure	COG
Frame	No
Touch Panel	No touch
Display Connection	FPC per ZIF Connector
Pin Nr.	24
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred
