WEO12864L#ZP3N00000-FC

PMOLED 0.96'' Graphic 128x64, Rectangular + Circular Knob COG, Yellow color, 3V, Interface SPI,I2C, Glare

DESCRIPTION

It's a 0.96 inch 128x64 dots COG type OLED display. This OLED Encoder module is built in with SSD1306 IC; it supports 4-line SPI and I2C interface, supply voltage (VCI) minimum 1.65V, maximum 3.3V, 1/64 driving duty. This OLED features a rotary switch which is ideal for applications that require a control knob such as smart home applications, intelligent technology devices, audio system, etc. Operated temperature from -20℃ to +70℃; storage temperature ranges from -30℃ to +80℃.



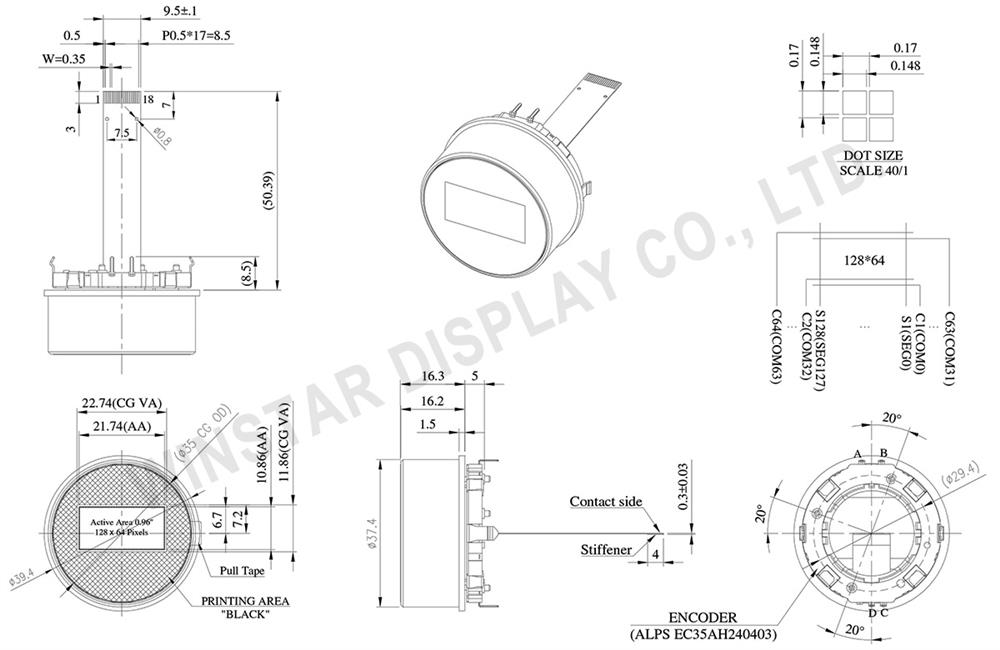

DRAWING

Ø 0.96" 128×64 OLED Knob - WEO012864Z





SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground pin.
2 VCC Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
3 VCOMH COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.
4 VCI Power supply pin for core logic operation
5 NC No connection
6 BS1 MCU bus interface selection pins.
Select appropriate logic setting as described in the following table.
 BS1
I2C 1
4-wire Serial 0
Note
(1) 0 is connected to VSS
(2) 1 is connected to VCI
7 IREF This is segment output current reference pin.
When external IREF is used, a resistor should be connected between this pin and VSS to maintain the IREF current at a maximum of 30uA.
8 CS# This pin is the chip select input. (active LOW).
9 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin HIGH during normal operation.
10 D/C# When 4-wire serial interface is selected, this pin is Data/Command control pin connecting to the MCU.
In I2C mode, this pin acts as SA0 for slave address selection.
11 D0 These pins are bi-directional data bus connecting to the MCU data bus.
When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
12 D1
13 D2
14 NC No connection
15 NC No connection
16 NC No connection
17 VCC Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
18 VSS Ground pin.



Encoder PIN Definition

No.SymbolFunction
1 FSW_A Encoder terminal signal-A
2 FSW_B Encoder terminal signal-B
3 FSW_C Encoder terminal signal-C
4 FSW_D Ground



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 x 64 Dots Dots
Module dimension Ø39.4 x 24.8 mm
Active Area 21.74 x 10.86 mm
Pixel Size 0.148 x 0.148 mm
Pixel Pitch 0.17 x 0.17 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64
IC SSD1326
Interface 4-wire SPI,I2C
Size 0.96 inch



Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Supply Voltage VCI -0.3 4.0 V
Supply Voltage for Display VCC 0 15 V
Operating Temperature TOP -20 +70 °C
Storage Temperature TST -30 +80 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VCI 1.65 3.0 3.3 V
Supply Voltage for Display VCC 6 10 10.5 V
Input High Volt. VIH 0.8xVCI V
Input Low Volt. VIL 0.2xVCI V
Output High Volt. VOH Iout = 100uA 0.9xVCI V
Output Low Volt. VOL Iout = 100uA 0.1xVCI V
Operating Current for VCC (VCC Supplied Externally) ICC VCC =10V 5 10 mA


SKU: WEO12864L#ZP3N00000-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€20.30
€14.90
€14.30
€13.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€20.30 excl tax

DESCRIPTION

It's a 0.96 inch 128x64 dots COG type OLED display. This OLED Encoder module is built in with SSD1306 IC; it supports 4-line SPI and I2C interface, supply voltage (VCI) minimum 1.65V, maximum 3.3V, 1/64 driving duty. This OLED features a rotary switch which is ideal for applications that require a control knob such as smart home applications, intelligent technology devices, audio system, etc. Operated temperature from -20℃ to +70℃; storage temperature ranges from -30℃ to +80℃.



DRAWING

Ø 0.96" 128×64 OLED Knob - WEO012864Z





SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground pin.
2 VCC Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
3 VCOMH COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.
4 VCI Power supply pin for core logic operation
5 NC No connection
6 BS1 MCU bus interface selection pins.
Select appropriate logic setting as described in the following table.
 BS1
I2C 1
4-wire Serial 0
Note
(1) 0 is connected to VSS
(2) 1 is connected to VCI
7 IREF This is segment output current reference pin.
When external IREF is used, a resistor should be connected between this pin and VSS to maintain the IREF current at a maximum of 30uA.
8 CS# This pin is the chip select input. (active LOW).
9 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin HIGH during normal operation.
10 D/C# When 4-wire serial interface is selected, this pin is Data/Command control pin connecting to the MCU.
In I2C mode, this pin acts as SA0 for slave address selection.
11 D0 These pins are bi-directional data bus connecting to the MCU data bus.
When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
12 D1
13 D2
14 NC No connection
15 NC No connection
16 NC No connection
17 VCC Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
18 VSS Ground pin.



Encoder PIN Definition

No.SymbolFunction
1 FSW_A Encoder terminal signal-A
2 FSW_B Encoder terminal signal-B
3 FSW_C Encoder terminal signal-C
4 FSW_D Ground



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 x 64 Dots Dots
Module dimension Ø39.4 x 24.8 mm
Active Area 21.74 x 10.86 mm
Pixel Size 0.148 x 0.148 mm
Pixel Pitch 0.17 x 0.17 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64
IC SSD1326
Interface 4-wire SPI,I2C
Size 0.96 inch



Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Supply Voltage VCI -0.3 4.0 V
Supply Voltage for Display VCC 0 15 V
Operating Temperature TOP -20 +70 °C
Storage Temperature TST -30 +80 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VCI 1.65 3.0 3.3 V
Supply Voltage for Display VCC 6 10 10.5 V
Input High Volt. VIH 0.8xVCI V
Input Low Volt. VIL 0.2xVCI V
Output High Volt. VOH Iout = 100uA 0.9xVCI V
Output Low Volt. VOL Iout = 100uA 0.1xVCI V
Operating Current for VCC (VCC Supplied Externally) ICC VCC =10V 5 10 mA


Products specifications
Brand Winstar
Size 0.96"
Resolution 128x64
Active Area (mm) 21.74x10.86
Dot Size 0.15x0.15
Polarizer Glare
Color Yellow
Power supply 3V
Display Interface SPI/I2C
Display IC SSD1326
Constructive Structure Circular Knob COG
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 18
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 0.96"
Resolution 128x64
Active Area (mm) 21.74x10.86
Dot Size 0.15x0.15
Polarizer Glare
Color Yellow
Power supply 3V
Display Interface SPI/I2C
Display IC SSD1326
Constructive Structure Circular Knob COG
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 18
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
;
