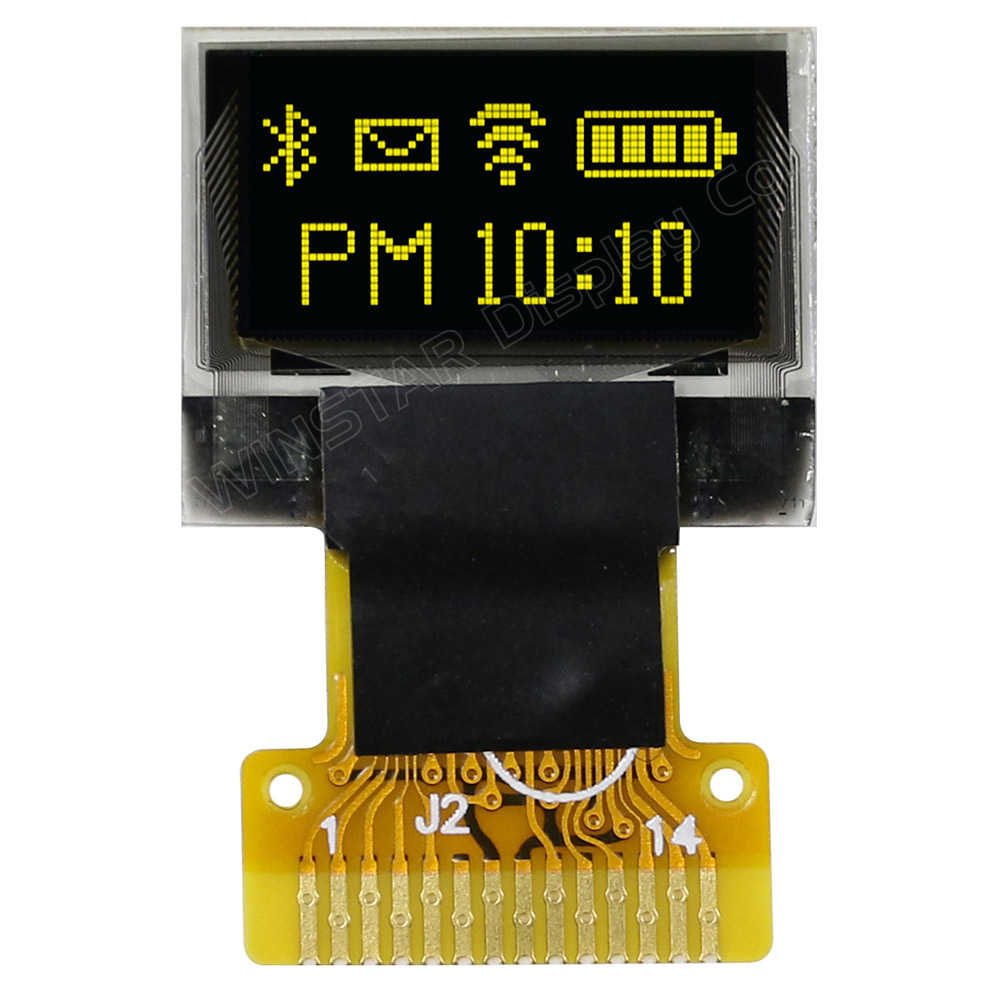

WEO6432L#A00-FC

PMOLED 0.49" Graphic 64x32, Yellow color, COG, 3V, Interface I2C, Glare (FPC per Soldering)

DESCRIPTION

0.49 inch passive matrix micro OLED display module which is made of 64x32 dots. It has module dimension of 14.5x 11.6 x 1.26 mm and Active Area size 11.18 × 5.58 mm. OLED micro display is built in with SSD1306 IC, it supports I2C interface, 3V power supply. COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.49 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc. Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +85℃.

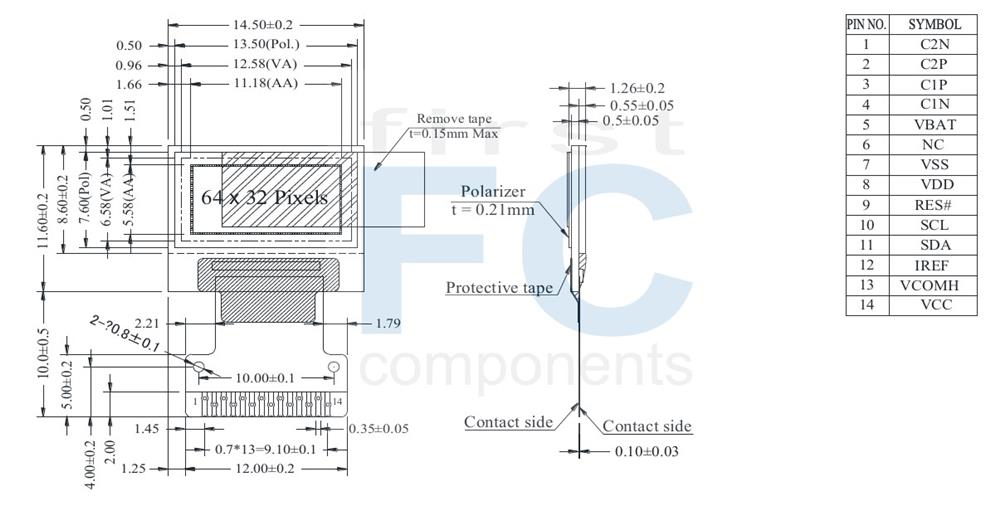

DRAWING

SPECIFICATIONS

Interface Pin Function

No.	Symbol	Function
1	C2N	Positive Terminal of the Flying Inverting Capacitor Negative Terminal of the Flying Boost Capacitor The charge-pump capacitors are required between the terminals. They must be floated when the converter is not used.
2	C2P
3	C1P
4	C1N
5	VBAT	Power Supply for DC/DC Converter Circuit This is the power supply pin for the internal buffer of the DC/DC voltage converter. It must be connected to external source when the converter is used. It should be connected to VDD when the converter is not used.
6	NC	No connection.
7	VSS	Ground of Logic Circuit This is a ground pin. It acts as a reference for the logic pins. It must be connected to external ground.
8	VDD	Power Supply for Logic This is a voltage supply pin. It must be connected to external source.
9	RES#	Power Reset for Controller and Driver This pin is reset signal input. When the pin is low, initialization of the chip is executed.
10	SCL	Host Data Input/Output Bus When serial mode is selected, D1 will be the serial data input SDIN and D0 will be the serial clock input SCLK. When I2C mode is selected, D2 & D1 should be tired together and serve as SDAout & SDAin in application and D0 is the serial clock input SCL.
11	SDA
12	IREF	Current Reference for Brightness Adjustment This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current lower than 12.5μA.
13	VCOMH	Voltage Output High Level for COM Signal This pin is the input pin for the voltage output high level for COM signals. A capacitor should be connected between this pin and VSS.
14	VCC	Power Supply for OEL Panel This is the most positive voltage supply pin of the chip. A stabilization capacitor should be connected between this pin and VSS when the converter is used. It must be connected to external source when the converter is not used.

Mechanical Data

Item	Dimension	Unit
Dot Matrix	64 × 32	Dots
Module dimension	14.5 × 11.6 × 1.26	mm
Active Area	11.18 × 5.58	mm
Pixel Size	0.153 × 0.153	mm
Pixel Pitch	0.175 × 0.175	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/32 Duty
IC	SSD1306

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Logic	VDD	0	4	V
Supply Voltage for Display	VCC	0	15	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+80	°C

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	－	2.8	3	3.3	V
Supply Voltage for Display	VCC	－	7	7.5	7.8	V
Input High Volt.	VIH	－	0.8×VDD	－	VDDIO	V
Input Low Volt.	VIL	－	0	－	0.2×VDD	V
Output High Volt.	VOH	－	0.9×VDD	－	VDDIO	V
Output Low Volt.	VOL	－	0	－	0.1×VDD	V
50% Check Board operating Current	ICC	VCC=7.5V	－	5	20	mA

SKU: WEO6432L#A00-FC

Brand: Winstar

Available: No

Be the first to review this product

Price Breaks

Quantity

10+

25+

Price

€2.80

€2.00

€1.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€2.80 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

No.	Symbol	Function
1	C2N	Positive Terminal of the Flying Inverting Capacitor Negative Terminal of the Flying Boost Capacitor The charge-pump capacitors are required between the terminals. They must be floated when the converter is not used.
2	C2P
3	C1P
4	C1N
5	VBAT	Power Supply for DC/DC Converter Circuit This is the power supply pin for the internal buffer of the DC/DC voltage converter. It must be connected to external source when the converter is used. It should be connected to VDD when the converter is not used.
6	NC	No connection.
7	VSS	Ground of Logic Circuit This is a ground pin. It acts as a reference for the logic pins. It must be connected to external ground.
8	VDD	Power Supply for Logic This is a voltage supply pin. It must be connected to external source.
9	RES#	Power Reset for Controller and Driver This pin is reset signal input. When the pin is low, initialization of the chip is executed.
10	SCL	Host Data Input/Output Bus When serial mode is selected, D1 will be the serial data input SDIN and D0 will be the serial clock input SCLK. When I2C mode is selected, D2 & D1 should be tired together and serve as SDAout & SDAin in application and D0 is the serial clock input SCL.
11	SDA
12	IREF	Current Reference for Brightness Adjustment This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current lower than 12.5μA.
13	VCOMH	Voltage Output High Level for COM Signal This pin is the input pin for the voltage output high level for COM signals. A capacitor should be connected between this pin and VSS.
14	VCC	Power Supply for OEL Panel This is the most positive voltage supply pin of the chip. A stabilization capacitor should be connected between this pin and VSS when the converter is used. It must be connected to external source when the converter is not used.

Mechanical Data

Item	Dimension	Unit
Dot Matrix	64 × 32	Dots
Module dimension	14.5 × 11.6 × 1.26	mm
Active Area	11.18 × 5.58	mm
Pixel Size	0.153 × 0.153	mm
Pixel Pitch	0.175 × 0.175	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/32 Duty
IC	SSD1306

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Logic	VDD	0	4	V
Supply Voltage for Display	VCC	0	15	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+80	°C

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	－	2.8	3	3.3	V
Supply Voltage for Display	VCC	－	7	7.5	7.8	V
Input High Volt.	VIH	－	0.8×VDD	－	VDDIO	V
Input Low Volt.	VIL	－	0	－	0.2×VDD	V
Output High Volt.	VOH	－	0.9×VDD	－	VDDIO	V
Output Low Volt.	VOL	－	0	－	0.1×VDD	V
50% Check Board operating Current	ICC	VCC=7.5V	－	5	20	mA

Products specifications

Brand	Winstar
Size	0.49"
Resolution	64x32
Active Area (mm)	11.18x5.58
Dot Size	0.15x0.15
Polarizer	Glare
Color	Yellow
Power supply	3V
Display Interface	I2C
Display IC	SSD1306BZ
Constructive Structure	COG
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	FPC for Soldering
Pin Nr.	14
Pin Pitch	0.7mm
Preferred - Not Preferred	Not Preferred
