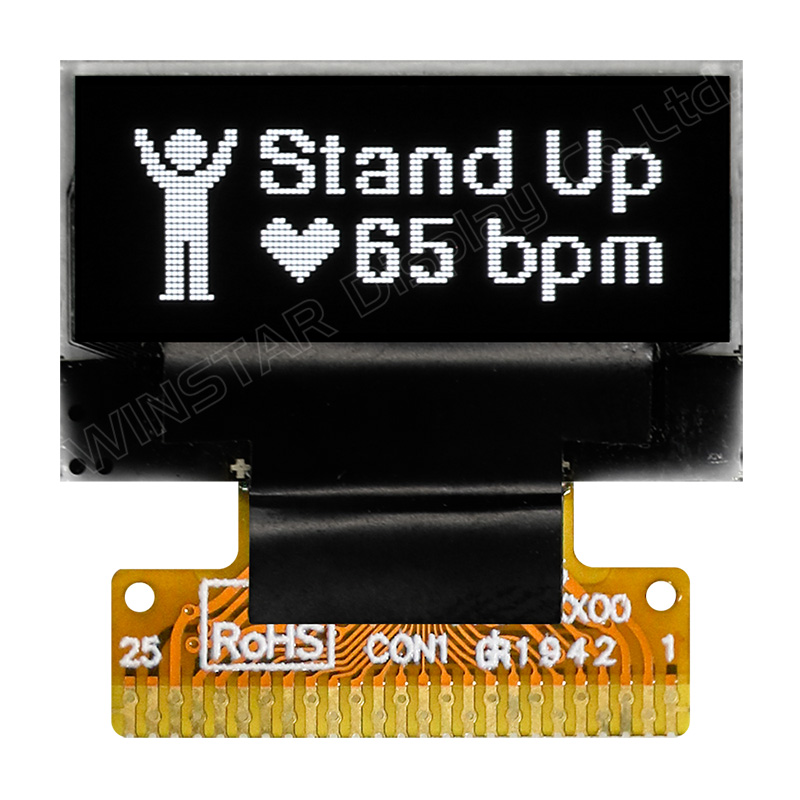

WEO9632W#B02-FC

PMOLED 0.68'' 96x32, White color, COG, 3V, Interface 6800,8080,SPI,I2C (FPC per Soldering)

DESCRIPTION



Mini OLED display which is made of 96x32 resolution, diagonal size 0.68 inch. Hotbar built in with SSD1305 driver IC; it supports 6800/8080 8-bit parallel, I2C and 4-wire SPI interface. The supply voltage for logic is 3V, 1/32 driving duty; display with 50% check board current is 6mA@12Vcc (typical value).

This OLED display which is ultra thin and no need of backlight; it’s lightweight and low power consumption. It is suitable for portable device, personal care appliance, health device, meter device, etc. This module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

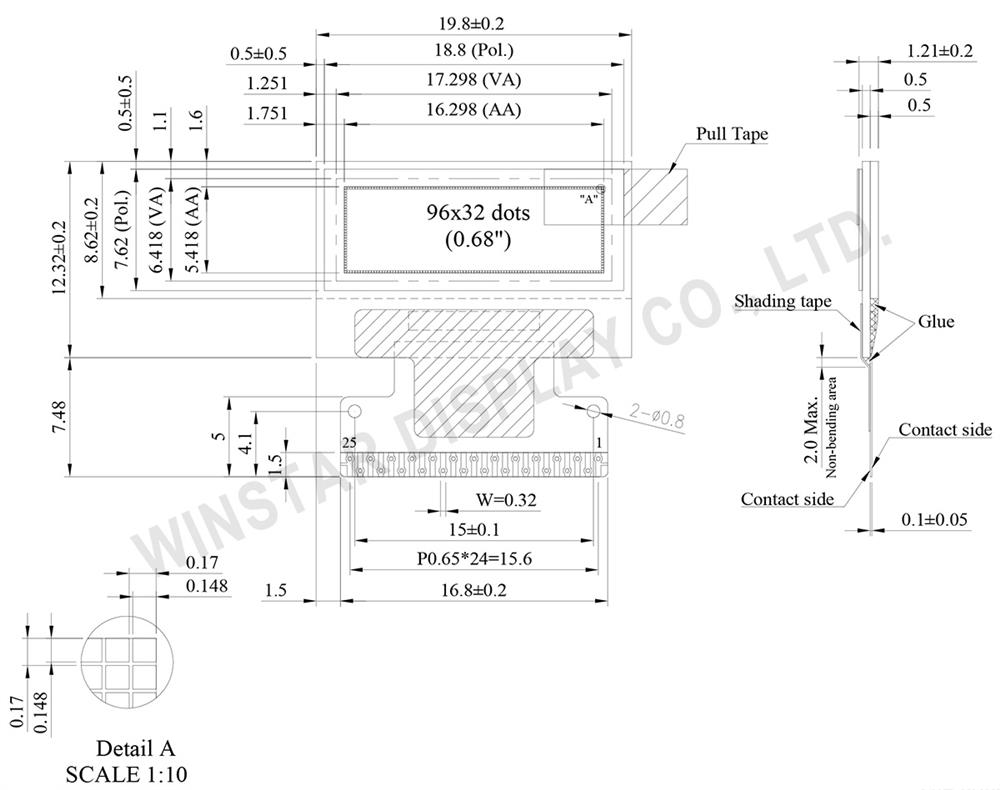

DRAWING

0.68 inch COG Graphic Display with Hotbar FPC - Winstar Display





SPECIFICATIONS

Interface Pin Function

Pin NumberSymbolI/OFunction
1 N.C. - Reserved Pin(Supporting Pin)
The supporting pins can reduce the influences from stresses on the function pins. These pins must be connected to external ground.
2,23 VSS P Ground of Logic Circuit
This is a ground pin. It also acts as a reference for the logic pins. It must be connected to external ground.
3,24 VCC P Power Supply for OLED Panel
This is the most positive voltage supply pin of the chip. It must be supplied externally.
4 VCOMH O Voltage Output High Level for COM Signal
This pin is the input pin for the voltage output high level for COM signals. A capacitor should be connected between this pin and VSS.
5 IREF I Current Reference for Brightness Adjustment
This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current lower than 10μA.
6 D0~D7 I/O Host Data In put/ Output Bus
These pins are 8-bit bi-directional data bus to be connected to the microprocessor’s data bus. When serial mode is selected, D1 will be the serial data input SDIN and D0 will be the serial clock input SCLK. When I2Cmode is selected, D2 & D1 should be tired together and serve as SDAout & SDAin in application and D0 is the serial clock input SCL.
7
8
9
10
11
12
13
14 E(RD#) I Read/Write Enable or Read
This pin is MCU interface input. When interfacing to a68XX-series microprocessor, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled high and the CS# is pulled low.
When connecting to an 80XX-microprocessor, this pin receives the Read (RD#) signal. Data read operation is initiated when this pin is pulled low and CS# is pulled low.
15 R/W#
(WR#)
I Read/ Write Selector Write
This pin is MCU interface input. When interfacing to a68XX-series microprocessor, this pin will be used as Read/Write (R/W#) selection input. Pull this pin to “High” for read mode and pull it to “Low” for write mode.
When 80XXinterface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled low and the CS# is pulled low.
16 D/C# I Data/ Command Control
This pin is Data/Command control pin. When the pin is pulled high, the input at D7~D0 is treated as display data. When the pin is pulled low, the input at D7~D0 will be transferred to the command register. For detail relationship to MCU interface signals, please refer to the Timing Characteristics Diagrams.
When the pin is pulled high and serial interface mode is selected, the data at SDIN is treated as data. When it is pulled low, the data at SDIN will be transferred to the command register. In I2C mode, this pin acts as SA0 for slave address selection.
17 RES# I Power Reset for Controller and Driver
This pin is reset signal input. When the pin is low, initialization of the chip is executed.
18 CS# I Chip Select
This pin is the chip select input. The chip is enabled for MCU communication only when CS# is pulled low.
19 BS2 I Communicating Protocol Select
These pins are MCU interface selection input. See the following table:
 68XX-parallel80XX-parallelSerialI2C
BS1 0 1 0 1
BS2 1 1 0 0
Note
(1) 0 is connected to VSS
(2) 1 is connected to VDDIO
20 BS1 I
21 VDDIO P Power supply for interface logic level.
It should be match with MCU interface voltage level. VDDIO must always be equal or lower than VDD.
22 VDD P Power Supply for Logic Circuit
This is a voltage supply pin. It must be connected to external source.
25 N.C. - Reserved Pin(Supporting Pin)
The supporting pins can reduce the influences from stresses on the function pins. These pins must be connected to external ground.



Mechanical Data

ItemDimensionUnit
Dot Matrix 96 × 32 Dots
Module dimension 19.80 × 12.32 × 1.21 (mm) mm
Active Area 16.298 × 5.418 (mm) mm
Pixel Size 0.148 × 0.148 (mm) mm
Pixel Pitch 0.17 × 0.17 (mm) mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/32 Duty
IC SSD1305
Interface 6800, 8080, SPI, I2C
Size 0.68 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 4 V
Supply Voltage for Display VCC 0 16 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

DC Characteristics

     ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD 2.8 3.0 3.3 V
Supply Voltage for Display VCC 11.5 12 12.5 V
High Level Input VIH 0.8×VDD VDD V
Low Level Input VIL 0 0.2×VDD V
High Level Output VOH Iout = 100uA 0.9×VDD VDD V
Low Level Output VOL Iout = 100uA 0 0.1×VDD V

SymbolParameterMin.Typ.Max.UnitCondition
ICC VCC Supply Current - 6 9 mA VDD =3.0V , Display 100% ON



FPC options

DrawingFPC LengthPINpitchZIF FPC or HOTBAR FPCInterfaceFPC No.Create Date
FPC2050002811XXXXX01_WEO009632BWAP3N00000 30 28 0.5 ZIF FPC 6800, 8080,4-Wire SPI, I2C FPC2050002811XXXXX01 20180131
FPC2065002501XXXXX00_WEO009632BWPP3N00H00 8.479 25 0.65 HOTBAR FPC 6800, 8080,4-Wire SPI, I2C FPC2065002501XXXXX00 20190906


SKU: WEO9632W#B02-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€3.80
€2.80
€2.70
€2.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€3.80 excl tax

DESCRIPTION



Mini OLED display which is made of 96x32 resolution, diagonal size 0.68 inch. Hotbar built in with SSD1305 driver IC; it supports 6800/8080 8-bit parallel, I2C and 4-wire SPI interface. The supply voltage for logic is 3V, 1/32 driving duty; display with 50% check board current is 6mA@12Vcc (typical value).

This OLED display which is ultra thin and no need of backlight; it’s lightweight and low power consumption. It is suitable for portable device, personal care appliance, health device, meter device, etc. This module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.



DRAWING

0.68 inch COG Graphic Display with Hotbar FPC - Winstar Display





SPECIFICATIONS

Interface Pin Function

Pin NumberSymbolI/OFunction
1 N.C. - Reserved Pin(Supporting Pin)
The supporting pins can reduce the influences from stresses on the function pins. These pins must be connected to external ground.
2,23 VSS P Ground of Logic Circuit
This is a ground pin. It also acts as a reference for the logic pins. It must be connected to external ground.
3,24 VCC P Power Supply for OLED Panel
This is the most positive voltage supply pin of the chip. It must be supplied externally.
4 VCOMH O Voltage Output High Level for COM Signal
This pin is the input pin for the voltage output high level for COM signals. A capacitor should be connected between this pin and VSS.
5 IREF I Current Reference for Brightness Adjustment
This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current lower than 10μA.
6 D0~D7 I/O Host Data In put/ Output Bus
These pins are 8-bit bi-directional data bus to be connected to the microprocessor’s data bus. When serial mode is selected, D1 will be the serial data input SDIN and D0 will be the serial clock input SCLK. When I2Cmode is selected, D2 & D1 should be tired together and serve as SDAout & SDAin in application and D0 is the serial clock input SCL.
7
8
9
10
11
12
13
14 E(RD#) I Read/Write Enable or Read
This pin is MCU interface input. When interfacing to a68XX-series microprocessor, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled high and the CS# is pulled low.
When connecting to an 80XX-microprocessor, this pin receives the Read (RD#) signal. Data read operation is initiated when this pin is pulled low and CS# is pulled low.
15 R/W#
(WR#)
I Read/ Write Selector Write
This pin is MCU interface input. When interfacing to a68XX-series microprocessor, this pin will be used as Read/Write (R/W#) selection input. Pull this pin to “High” for read mode and pull it to “Low” for write mode.
When 80XXinterface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled low and the CS# is pulled low.
16 D/C# I Data/ Command Control
This pin is Data/Command control pin. When the pin is pulled high, the input at D7~D0 is treated as display data. When the pin is pulled low, the input at D7~D0 will be transferred to the command register. For detail relationship to MCU interface signals, please refer to the Timing Characteristics Diagrams.
When the pin is pulled high and serial interface mode is selected, the data at SDIN is treated as data. When it is pulled low, the data at SDIN will be transferred to the command register. In I2C mode, this pin acts as SA0 for slave address selection.
17 RES# I Power Reset for Controller and Driver
This pin is reset signal input. When the pin is low, initialization of the chip is executed.
18 CS# I Chip Select
This pin is the chip select input. The chip is enabled for MCU communication only when CS# is pulled low.
19 BS2 I Communicating Protocol Select
These pins are MCU interface selection input. See the following table:
 68XX-parallel80XX-parallelSerialI2C
BS1 0 1 0 1
BS2 1 1 0 0
Note
(1) 0 is connected to VSS
(2) 1 is connected to VDDIO
20 BS1 I
21 VDDIO P Power supply for interface logic level.
It should be match with MCU interface voltage level. VDDIO must always be equal or lower than VDD.
22 VDD P Power Supply for Logic Circuit
This is a voltage supply pin. It must be connected to external source.
25 N.C. - Reserved Pin(Supporting Pin)
The supporting pins can reduce the influences from stresses on the function pins. These pins must be connected to external ground.



Mechanical Data

ItemDimensionUnit
Dot Matrix 96 × 32 Dots
Module dimension 19.80 × 12.32 × 1.21 (mm) mm
Active Area 16.298 × 5.418 (mm) mm
Pixel Size 0.148 × 0.148 (mm) mm
Pixel Pitch 0.17 × 0.17 (mm) mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/32 Duty
IC SSD1305
Interface 6800, 8080, SPI, I2C
Size 0.68 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 4 V
Supply Voltage for Display VCC 0 16 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

DC Characteristics

     ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD 2.8 3.0 3.3 V
Supply Voltage for Display VCC 11.5 12 12.5 V
High Level Input VIH 0.8×VDD VDD V
Low Level Input VIL 0 0.2×VDD V
High Level Output VOH Iout = 100uA 0.9×VDD VDD V
Low Level Output VOL Iout = 100uA 0 0.1×VDD V

SymbolParameterMin.Typ.Max.UnitCondition
ICC VCC Supply Current - 6 9 mA VDD =3.0V , Display 100% ON



FPC options

DrawingFPC LengthPINpitchZIF FPC or HOTBAR FPCInterfaceFPC No.Create Date
FPC2050002811XXXXX01_WEO009632BWAP3N00000 30 28 0.5 ZIF FPC 6800, 8080,4-Wire SPI, I2C FPC2050002811XXXXX01 20180131
FPC2065002501XXXXX00_WEO009632BWPP3N00H00 8.479 25 0.65 HOTBAR FPC 6800, 8080,4-Wire SPI, I2C FPC2065002501XXXXX00 20190906


Products specifications
Brand Winstar
Size 0.68"
Resolution 96x32
Active Area (mm) 16.29x5.41
Dot Size 0.14x0.14
Polarizer Glare
Color White
Power supply 3V
Interface 6800/8080/SPI/I2C
Built-in Controller SSD1305
Structure COG
Frame No
Touch Panel No touch
Display Connection FPC per Soldering
Pin Nr. 25
Pin Pitch 0.65mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 0.68"
Resolution 96x32
Active Area (mm) 16.29x5.41
Dot Size 0.14x0.14
Polarizer Glare
Color White
Power supply 3V
Interface 6800/8080/SPI/I2C
Built-in Controller SSD1305
Structure COG
Frame No
Touch Panel No touch
Display Connection FPC per Soldering
Pin Nr. 25
Pin Pitch 0.65mm
Preferred - Not Preferred Not Preferred
