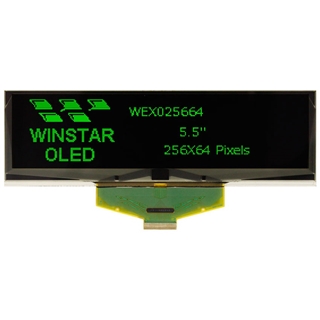

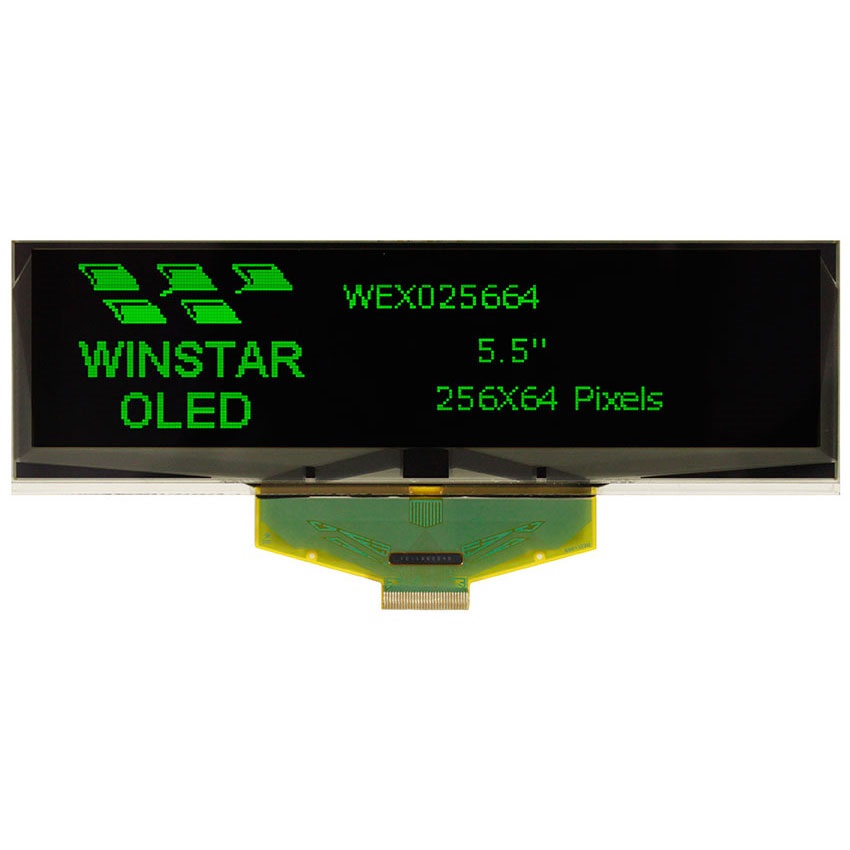

WEX25664G#D00-FC

PMOLED 5.5'' Graphic 256x64, Green color, COF, 3V, Interface 6800,8080,SPI, Glare

DESCRIPTION

Winstar 5.5 inch COF OLED 256x64 module is built-in SSD1322 IC; it supports 6800, 8080 and SPI interface. This display is having the module dimension of 146.0 x 45.0 mm and AA size of 135.65 x 33.89 mm. This module is the largest passive-matrix OLED we have launched so far in our OLED product line which is very suitable for POS system application. This OLED module can be operating at temperatures from -40℃ to +80℃. Winstar COF Series are suitable for wall / meter devices, home applications, POS system, Cloud/IoT system, handheld instruments, intelligent technology devices, energy systems, automotive, communication systems, medical instrument, etc. Customers can upgrade your current applications from traditional STN displays to OLED displays since Winstar provides a very wide range of dot pixel formats OLED solutions.

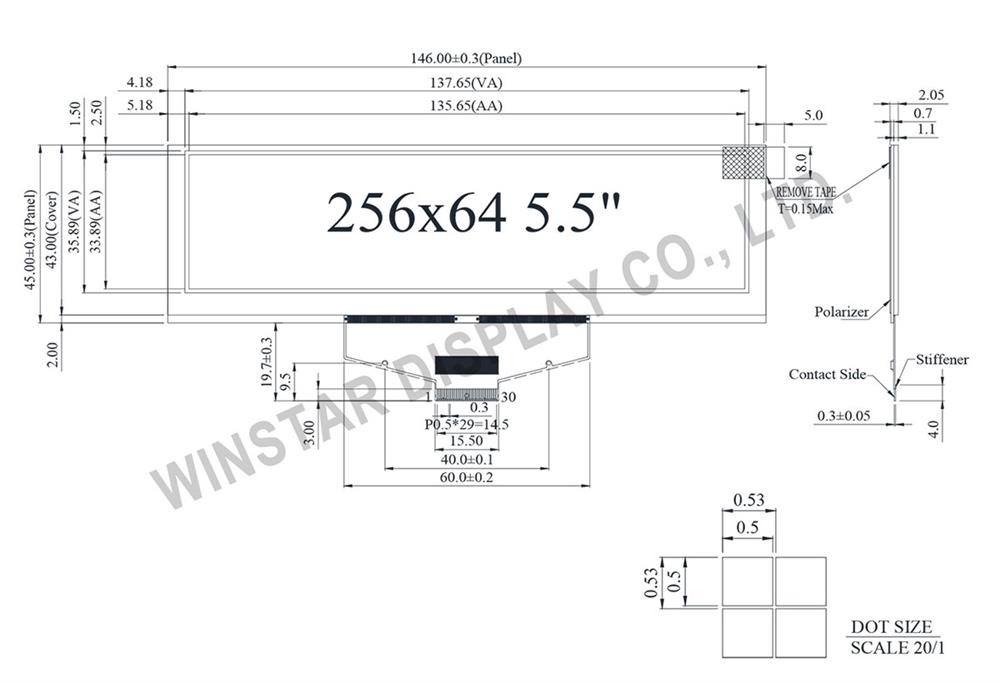

DRAWING

5.5 inch OLED, 5.5 OLED Display - WEX025664D

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 NC No Connection
2 VSS Ground Pin
3 VCC Panel driving voltage
4 VCOMH COM deselected level
5 VLSS Analog system ground pin
6~13 D7~D0 Data Bus
14 E/RD# Chip Enable Signal
15 R/W# Read/Write Control
16~17 BS0~BS1 Interface selection
18 D/C# Data/Command Control Pin
19 CS# Chip Select Pin
20 RES# Reset Signal Pin
21 FR Not Connected
22 IREF SEG output current refer pin
23 NC No Connection
24 VDDIO Voltage for interface logic
25 VDD Voltage for logic
26 VCI Low voltage power supply
27 VSL SEG voltage refer Pin
28 VLSS Analog system ground pin
29 VCC Panel driving voltage
30 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 146.0 × 45.0 mm
Viewing area 137.65 × 35.89 mm
Active area 135.65 × 33.89 mm
Dot pitch 0.53 × 0.53 mm
Dot size 0.50 × 0.50 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VCI --- 2.8 3.0 3.3 V



SKU: WEX25664G#D00-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€60.20
€53.20
€50.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€60.20 excl tax

DESCRIPTION

Winstar 5.5 inch COF OLED 256x64 module is built-in SSD1322 IC; it supports 6800, 8080 and SPI interface. This display is having the module dimension of 146.0 x 45.0 mm and AA size of 135.65 x 33.89 mm. This module is the largest passive-matrix OLED we have launched so far in our OLED product line which is very suitable for POS system application. This OLED module can be operating at temperatures from -40℃ to +80℃. Winstar COF Series are suitable for wall / meter devices, home applications, POS system, Cloud/IoT system, handheld instruments, intelligent technology devices, energy systems, automotive, communication systems, medical instrument, etc. Customers can upgrade your current applications from traditional STN displays to OLED displays since Winstar provides a very wide range of dot pixel formats OLED solutions.



DRAWING

5.5 inch OLED, 5.5 OLED Display - WEX025664D

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 NC No Connection
2 VSS Ground Pin
3 VCC Panel driving voltage
4 VCOMH COM deselected level
5 VLSS Analog system ground pin
6~13 D7~D0 Data Bus
14 E/RD# Chip Enable Signal
15 R/W# Read/Write Control
16~17 BS0~BS1 Interface selection
18 D/C# Data/Command Control Pin
19 CS# Chip Select Pin
20 RES# Reset Signal Pin
21 FR Not Connected
22 IREF SEG output current refer pin
23 NC No Connection
24 VDDIO Voltage for interface logic
25 VDD Voltage for logic
26 VCI Low voltage power supply
27 VSL SEG voltage refer Pin
28 VLSS Analog system ground pin
29 VCC Panel driving voltage
30 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 146.0 × 45.0 mm
Viewing area 137.65 × 35.89 mm
Active area 135.65 × 33.89 mm
Dot pitch 0.53 × 0.53 mm
Dot size 0.50 × 0.50 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VCI --- 2.8 3.0 3.3 V



Products specifications
Brand Winstar
Size 5.5"
Resolution 256x64
Active Area (mm) 135.65x33.89
Dot Size 0.50x0.50
Polarizer Glare
Color Green
Power supply 3V
Display Interface 6800/8080/SPI
Display IC SSD1322UR1
Constructive Structure COF
Frame No
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection FPC per ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 5.5"
Resolution 256x64
Active Area (mm) 135.65x33.89
Dot Size 0.50x0.50
Polarizer Glare
Color Green
Power supply 3V
Display Interface 6800/8080/SPI
Display IC SSD1322UR1
Constructive Structure COF
Frame No
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection FPC per ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
