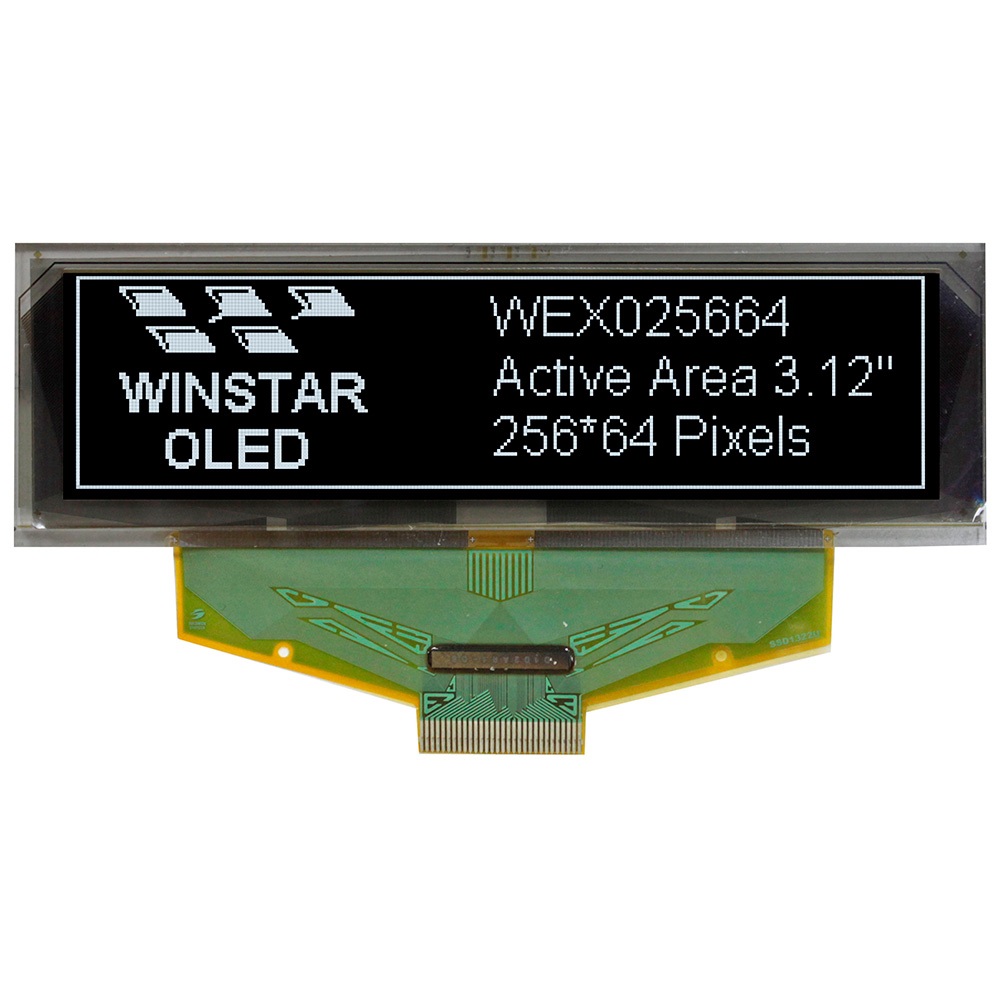

WEX25664W#B09-FC

Picture of WEX25664W#B09-FC Picture of WEX25664W#B09-FC
PMOLED 3.12'' Graphic 256x64, White color, COF, 3V, Interface 6800,8080,SPI, Bi-adhesive rear tape (Semi-custom)

MOQ

After sample PO, MP MOQ 500 because of bi-adhesive rear tape for fixing (semi-custom)



DESCRIPTION

Winstar COF 3.12 inch of standard OLED graphic display with Bi-adhesive rear tape. This 256x64 OLED display is built-in SSD1322 driver IC which the outline dimension of  88 x 27.8 mm, AA size 76.778 x 19.178 mm. Winstar COF Series are suitable for wall / meter devices, home applications, POS system, Cloud/IoT system, handheld instruments, intelligent technology devices, energy systems, automotive, communication systems, medical instrument, etc. Customers can upgrade your current applications from traditional STN displays to OLED displays since Winstar provides a very wide range of dot pixel formats OLED solutions.

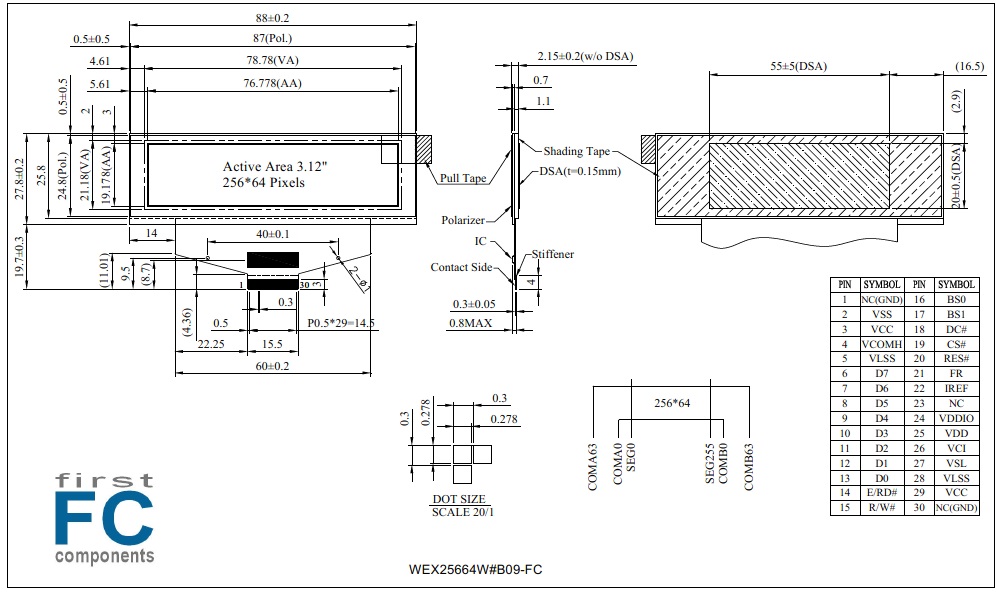

DRAWING

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 NC No Connection
2 VSS Ground Pin
3 VCC Panel driving voltage
4 VCOMH COM deselected level
5 VLSS Analog system ground pin
6~13 D7~D0 Data Bus
14 E/RD# Chip Enable Signal
15 R/W# Read/Write Control
16~17 BS0~BS1 Interface selection
18 D/C# Data/Command Control Pin
19 CS# Chip Select Pin
20 RES# Reset Signal Pin
21 FR Not Connected
22 IREF SEG output current refer pin
23 NC No Connection
24 VDDIO Voltage for interface logic
25 VDD Voltage for logic
26 VCI Low voltage power supply
27 VSL SEG voltage refer Pin
28 VLSS Analog system ground pin
29 VCC Panel driving voltage
30 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 88.0 × 27.8 mm
View area 78.78 × 21.18 mm
Active area 76.778 × 19.178  mm
Dot pitch 0.278 × 0.278 mm
Dot size 0.30 × 0.30  mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD --- 2.8 3.0 3.3 V

SKU: WEX25664W#B09-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€27.50
€22.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€27.50 excl tax

MOQ

After sample PO, MP MOQ 500 because of bi-adhesive rear tape for fixing (semi-custom)



DESCRIPTION

Winstar COF 3.12 inch of standard OLED graphic display with Bi-adhesive rear tape. This 256x64 OLED display is built-in SSD1322 driver IC which the outline dimension of  88 x 27.8 mm, AA size 76.778 x 19.178 mm. Winstar COF Series are suitable for wall / meter devices, home applications, POS system, Cloud/IoT system, handheld instruments, intelligent technology devices, energy systems, automotive, communication systems, medical instrument, etc. Customers can upgrade your current applications from traditional STN displays to OLED displays since Winstar provides a very wide range of dot pixel formats OLED solutions.



DRAWING

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 NC No Connection
2 VSS Ground Pin
3 VCC Panel driving voltage
4 VCOMH COM deselected level
5 VLSS Analog system ground pin
6~13 D7~D0 Data Bus
14 E/RD# Chip Enable Signal
15 R/W# Read/Write Control
16~17 BS0~BS1 Interface selection
18 D/C# Data/Command Control Pin
19 CS# Chip Select Pin
20 RES# Reset Signal Pin
21 FR Not Connected
22 IREF SEG output current refer pin
23 NC No Connection
24 VDDIO Voltage for interface logic
25 VDD Voltage for logic
26 VCI Low voltage power supply
27 VSL SEG voltage refer Pin
28 VLSS Analog system ground pin
29 VCC Panel driving voltage
30 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 88.0 × 27.8 mm
View area 78.78 × 21.18 mm
Active area 76.778 × 19.178  mm
Dot pitch 0.278 × 0.278 mm
Dot size 0.30 × 0.30  mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD --- 2.8 3.0 3.3 V

Products specifications
Brand Winstar
Size 3.12"
Resolution 256x64
Active Area (mm) 76.77x19.17
Dot Size 0.27x0.27
Polarizer Glare
Color White
Power supply 3V
Display Interface 6800/8080/SPI
Display IC Controller SSD1322UR1
Constructive Structure COF
Frame Tape
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection FPC per ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.12"
Resolution 256x64
Active Area (mm) 76.77x19.17
Dot Size 0.27x0.27
Polarizer Glare
Color White
Power supply 3V
Display Interface 6800/8080/SPI
Display IC Controller SSD1322UR1
Constructive Structure COF
Frame Tape
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection FPC per ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
