WEX25664W#DA3N00000-FC

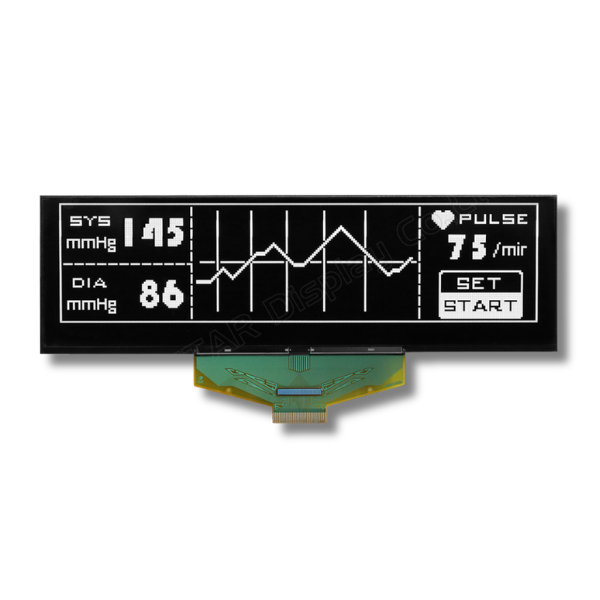

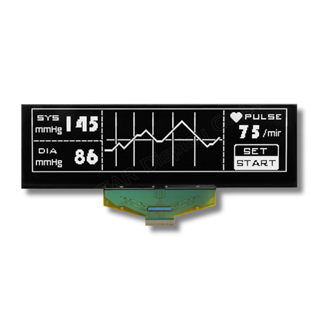

Picture of WEX25664W#DA3N00000-FC Picture of WEX25664W#DA3N00000-FC
PMOLED 5.5" Graphic 256x64, White color, COF, 3V, Interface 6800,8080,SPI, Anti-Glare

DESCRIPTION

Unleash a new era of visual excellence with Winstar's 5.5-inch COF OLED Display Module (WEX25664W#DA3N00000-FC). Boasting a resolution of 256x64 dots, this display is equipped with a built-in SSD1322 IC and supports 6800/8080 8-bit and 3/4-line SPI interfaces.

Operable on a 3V power supply and utilizing a 1/64 duty driving method, this 5.5-inch OLED module provides an outstanding contrast ratio of 10000:1 and supports 4-bit grayscale, ensuring vibrant and detailed visuals. Its operational temperature range of -40℃ to +80℃, coupled with a storage temperature range of -40℃ to +85℃, makes it versatile for various environments.

WINSTAR's COF Series 5.5-inch Display is a perfect fit for a multitude of applications, including wall/meter devices, home automation, POS systems, Cloud/IoT setups, handheld instruments, intelligent technology devices, energy systems, automotive displays, communication systems, and medical instruments. Upgrade seamlessly from traditional STN displays to OLED displays, thanks to Winstar's extensive range of dot pixel formats and cutting-edge technology.

Transform your applications with WINSTAR's 5.5-inch OLED Display, a pinnacle of visual innovation. Upgrade to the future of display technology effortlessly.

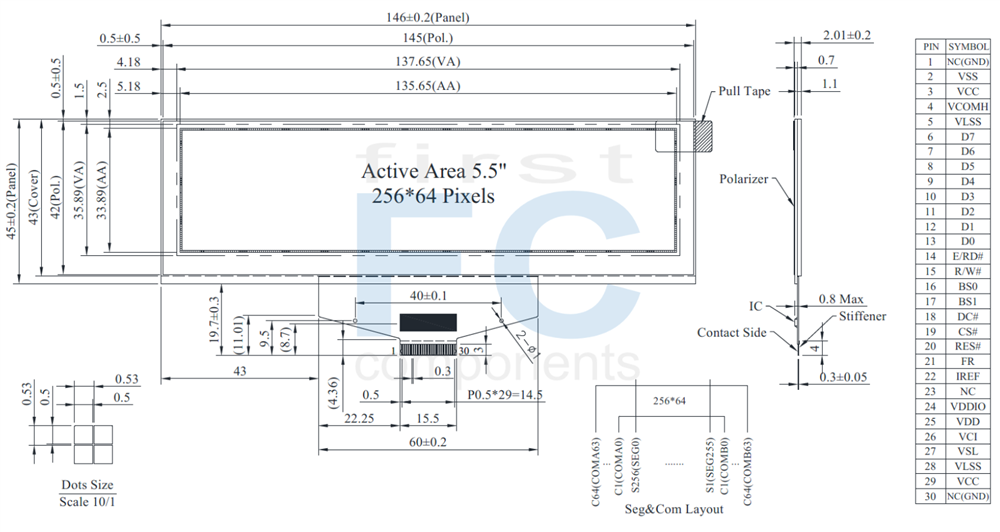

DRAWING

SPECIFICATIONS

Mechanical Data

ItemDimensionUnit
Dot Matrix 256 x 64 Dots －
Module dimension 146.0 × 45.0 × 2.01 mm
Active Area 135.65 × 33.89 mm
Pixel Size 0.50 × 0.50 mm
Pixel Pitch 0.53 × 0.53 mm
Display Mode Passive Matrix
Display Color White
Drive Duty 1/64 Duty
Gray Scale 4 bits
IC SSD1322
Interface 6800, 8080, SPI
Size 5.5 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.5 2.75 V
Low voltage power supply VCI -0.3 4.0 V
Power supply for I/O pins VDDIO -0.5 VCI V
Supply Voltage for Display VCC -0.5 21.0 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electrical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD － 2.4 2.5 2.6 V
Power Supply for I/O pins VDDIO － 1.65 3.0 VCI V
Low voltage power supply VCI － 2.4 3.0 3.5 V
Supply Voltage for Display VCC － 10.0 18.0 18.5 V
High Level Input VIH － 0.8×VDDIO － VDDIO V
Low Level Input VIL － 0 － 0.2×VDDIO V
High Level Output VOH － 0.9×VDDIO － VDDIO V
Low Level Output VOL － 0 － 0.1×VDDIO V
Display 30% Pixel on ICC VCC =18V － 40 60 mA



Interface Pin Function

No.SymbolFunction
1 N.C. The N.C. pin between function pins are reserved for compatible and flexible design.
2 VSS Ground.
3 VCC Power supply for panel driving voltage.
This is also the most positive power voltage supply pin.
4 VCOMH COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.
5 VLSS Analog system ground pin.
6~13 D7~D0 These pins are bi-directional data bus connecting to the MCU data bus.
Unused pins are recommended to tie LOW. (Except for D2 pin in SPI mode)
14 E/RD# This pin is MCU interface input.
When interfacing to a 6800-series microprocessor, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH and the chip is selected.
When connecting to an 8080-microprocessor, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected.
When serial interface is selected, this pin E(RD#) must be connected to VSS.
15 R/W# This pin is read / write control input pin connecting to the MCU interface.
When interfacing to a 6800-series microprocessor, this pin will be used as
Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW.
When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected.
When serial interface is selected, this pin R/W (WR#) must be connected to VSS.
16 BS0 MCU bus interface selection pins. Select appropriate logic setting as described in the following table.
BS[1:0]Bus Interface Selection
00 4 line SPI
01 3 line SPI
10 8-bit 8080 parallel
11 8-bit 6800 parallel
Note
(1) 0 is connected to VSS
(2) 1 is connected to VDDIO
17 BS1
18 D/C# This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the content at D[7:0] will be interpreted as data.
When the pin is pulled LOW, the content at D[7:0] will be interpreted as command.
19 CS# This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW.
20 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
21 FR This pin is No Connection pins. Nothing should be connected to this pin. This pin should be left open individually.
22 IREF This pin is the segment output current reference pin.
A resistor should be connected between this pin and VSS to maintain the current around 10uA.
23 N.C. The N.C. pin between function pins are reserved for compatible and flexible design.
24 VDDIO Power supply for interface logic level. It should be matched with the MCU interface voltage level.
25 VDD Power supply pin for core logic operation. A capacitor is required to connect between this pin and VSS.
26 VCI Low voltage power supply.
VCI must always be equal to or higher than VDD and VDDIO.
27 VSL This is segment voltage reference pin.
When external VSL is used, connect with resistor and diode to ground.
28 VLSS Analog system ground pin.
29 VCC Power supply for panel driving voltage.
This is also the most positive power voltage supply pin.
30 N.C. The N.C. pin between function pins are reserved for compatible and flexible design.
SKU: WEX25664W#DA3N00000-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€58.70
€52.90
€49.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€58.70 excl tax

DESCRIPTION

Unleash a new era of visual excellence with Winstar's 5.5-inch COF OLED Display Module (WEX25664W#DA3N00000-FC). Boasting a resolution of 256x64 dots, this display is equipped with a built-in SSD1322 IC and supports 6800/8080 8-bit and 3/4-line SPI interfaces.

Operable on a 3V power supply and utilizing a 1/64 duty driving method, this 5.5-inch OLED module provides an outstanding contrast ratio of 10000:1 and supports 4-bit grayscale, ensuring vibrant and detailed visuals. Its operational temperature range of -40℃ to +80℃, coupled with a storage temperature range of -40℃ to +85℃, makes it versatile for various environments.

WINSTAR's COF Series 5.5-inch Display is a perfect fit for a multitude of applications, including wall/meter devices, home automation, POS systems, Cloud/IoT setups, handheld instruments, intelligent technology devices, energy systems, automotive displays, communication systems, and medical instruments. Upgrade seamlessly from traditional STN displays to OLED displays, thanks to Winstar's extensive range of dot pixel formats and cutting-edge technology.

Transform your applications with WINSTAR's 5.5-inch OLED Display, a pinnacle of visual innovation. Upgrade to the future of display technology effortlessly.



DRAWING

SPECIFICATIONS

Mechanical Data

ItemDimensionUnit
Dot Matrix 256 x 64 Dots －
Module dimension 146.0 × 45.0 × 2.01 mm
Active Area 135.65 × 33.89 mm
Pixel Size 0.50 × 0.50 mm
Pixel Pitch 0.53 × 0.53 mm
Display Mode Passive Matrix
Display Color White
Drive Duty 1/64 Duty
Gray Scale 4 bits
IC SSD1322
Interface 6800, 8080, SPI
Size 5.5 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.5 2.75 V
Low voltage power supply VCI -0.3 4.0 V
Power supply for I/O pins VDDIO -0.5 VCI V
Supply Voltage for Display VCC -0.5 21.0 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electrical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD － 2.4 2.5 2.6 V
Power Supply for I/O pins VDDIO － 1.65 3.0 VCI V
Low voltage power supply VCI － 2.4 3.0 3.5 V
Supply Voltage for Display VCC － 10.0 18.0 18.5 V
High Level Input VIH － 0.8×VDDIO － VDDIO V
Low Level Input VIL － 0 － 0.2×VDDIO V
High Level Output VOH － 0.9×VDDIO － VDDIO V
Low Level Output VOL － 0 － 0.1×VDDIO V
Display 30% Pixel on ICC VCC =18V － 40 60 mA



Interface Pin Function

No.SymbolFunction
1 N.C. The N.C. pin between function pins are reserved for compatible and flexible design.
2 VSS Ground.
3 VCC Power supply for panel driving voltage.
This is also the most positive power voltage supply pin.
4 VCOMH COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.
5 VLSS Analog system ground pin.
6~13 D7~D0 These pins are bi-directional data bus connecting to the MCU data bus.
Unused pins are recommended to tie LOW. (Except for D2 pin in SPI mode)
14 E/RD# This pin is MCU interface input.
When interfacing to a 6800-series microprocessor, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH and the chip is selected.
When connecting to an 8080-microprocessor, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected.
When serial interface is selected, this pin E(RD#) must be connected to VSS.
15 R/W# This pin is read / write control input pin connecting to the MCU interface.
When interfacing to a 6800-series microprocessor, this pin will be used as
Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW.
When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected.
When serial interface is selected, this pin R/W (WR#) must be connected to VSS.
16 BS0 MCU bus interface selection pins. Select appropriate logic setting as described in the following table.
BS[1:0]Bus Interface Selection
00 4 line SPI
01 3 line SPI
10 8-bit 8080 parallel
11 8-bit 6800 parallel
Note
(1) 0 is connected to VSS
(2) 1 is connected to VDDIO
17 BS1
18 D/C# This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the content at D[7:0] will be interpreted as data.
When the pin is pulled LOW, the content at D[7:0] will be interpreted as command.
19 CS# This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW.
20 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
21 FR This pin is No Connection pins. Nothing should be connected to this pin. This pin should be left open individually.
22 IREF This pin is the segment output current reference pin.
A resistor should be connected between this pin and VSS to maintain the current around 10uA.
23 N.C. The N.C. pin between function pins are reserved for compatible and flexible design.
24 VDDIO Power supply for interface logic level. It should be matched with the MCU interface voltage level.
25 VDD Power supply pin for core logic operation. A capacitor is required to connect between this pin and VSS.
26 VCI Low voltage power supply.
VCI must always be equal to or higher than VDD and VDDIO.
27 VSL This is segment voltage reference pin.
When external VSL is used, connect with resistor and diode to ground.
28 VLSS Analog system ground pin.
29 VCC Power supply for panel driving voltage.
This is also the most positive power voltage supply pin.
30 N.C. The N.C. pin between function pins are reserved for compatible and flexible design.
Products specifications
Brand Winstar
Size 5.5"
Resolution 256x64
Active Area (mm) 135.65x33.89
Dot Size 0.50x0.50
Polarizer Anti-glare
Color White
Power supply 3V
Display Interface 6800/8080/SPI
Display IC SSD1322
Constructive Structure COF
Frame No
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection FPC for ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5.5"
Resolution 256x64
Active Area (mm) 135.65x33.89
Dot Size 0.50x0.50
Polarizer Anti-glare
Color White
Power supply 3V
Display Interface 6800/8080/SPI
Display IC SSD1322
Constructive Structure COF
Frame No
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection FPC for ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
