WF101-1024600JM#0P0-FC

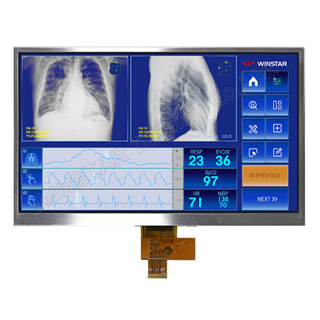

Picture of WF101-1024600JM#0P0-FC Picture of WF101-1024600JM#0P0-FC
TFT 10.1" 1024x600 LCD Panel, Interface MIPI,(EK79007AD3 + EK73217BCGA), 500cd/m², Wide View Angle (IPS), No touch

Specifications



Interface

TFT LCD MODULE

Pin No.

Symbol

Description

1

VLED+

LEDAnode

2

VLED+

LEDAnode

3

VGH

Positivepower forTFT

4

VGL

Negativepower forTFT





5





UPDN

Gateup ordownscan control.

UPDN = ”L”, STV2 output vertical start pulse and UD pin outputlogical“L”toGatedriver.(default)

UPDN = ”H”,STV1outputvertical startpulseandUDpinoutput

logical“H”to Gatedriver





6





SHLR

Sourceright orleft sequence control.

SHLR= ”L“, shiftleft:last data= S1←S2←S3........................................................................................... ←S1536=first

SHLR = ”H“,shiftright:firstdata=S1→S2→S3........................................................................................... →S1536 =last

data.(default)

7

VLED-

LED Cathode

8

VLED-

LED Cathode

9

AVDD

Analogpower

10

GND

Digitalground

11

D3P

MIPI datainput.

12

D3N

MIPI datainput.

13

GND

Digitalground

14

D2P

MIPI datainput.

15

D2N

MIPI datainput.

16

GND

Digitalground

17

CLKP

MIPIclockinput

18

CLKN

MIPIclockinput

19

GND

Digitalground

20

D1P

MIPI datainput.

21

D1N

MIPI datainput.

22

GND

Digitalground

23

D0P

MIPI datainput.

24

D0N

MIPI datainput.

25

GND

Digitalground

26

STBYB

Standbymode.





STBYB=”H“,normaloperation(default)

STBYB = ”L”, timing controller, source driver will turn off, all outputareGND.

27

RESET

Globalresetpin.Active Lowtoenter ResetState.Normallypull

high. ConnectingwithanRC resetcircuitforstability.

28

VDD(1.8V)

Digitalpower

29

VDD(1.8V)

Digitalpower

30

VCOMI

Commonvoltage



General Specifications

Item

Dimension

Unit

Size

10.1

inch

Dot Matrix

1024 RGB X 600

dots

Module dimension

235(W) x143(H) x 5.05(D)

mm

Active area

222.72 (H) x 125.28(V)

mm

Pixel pitch

0.2175(W) x 0.2088(H)

mm

LCD type

TFT, Normally Black, Transmissive

TFT Interface

4-Lanes MIPI

Driver IC

EK79007AD3 + EK73217BCGA or equivalent

Viewing Angle

85/85/85/85

Aspect Ratio

16:9

Backlight Type

LED,Normally White

With /Without TP

Without TP

Surface

Anti-Glare



Absolute Maximum Ratings

Item

Symbol

Min

Typ

Max

Unit

OperatingTemperature

TOP

-20

－

+70

℃

StorageTemperature

TST

-30

－

+80

℃

Note: Device is subject to be damaged permanently if stresses beyond those absolutemaximumratingslistedabove

  1. Temp.≦60℃,90%RHMAX.Temp.＞60℃,Absolutehumidityshallbelessthan90%RHat60℃



Electrical Characteristics

Typical Operation Conditions (At Ta=25°C)

Item

Symbol



Unit

Note

DigitalPower SupplyVoltageForLCD

VDD

1.71

1.8

1.89

V

Note1

AnalogPowerSupplyVoltage

AVDD

9.89

10.2

10.5

V

-

Gate OnPowerSupplyVoltage

VGH

19.4

20.0

20.6

V

-

Gate OffPowerSupplyVoltage

VGL

-10.3

-10.0

-9.7

V

-

CommonPower SupplyVoltage

VCOMI

4.0

4.3

4.6

V

Note2

Note1:VDD settingshouldmatchthesignalsoutputvoltage(refer toNote3)ofcustomer’ssystemboard.

Note 2.Please adjust VCOMI to make the flicker level be minimum.Note3:RESET,STBYB,U/D,L/R,SELB

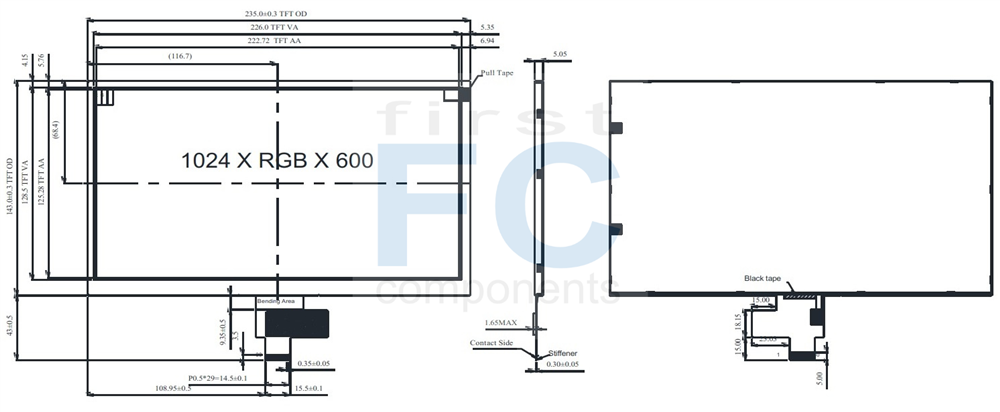

Drawing

SKU: WF101-1024600JM#0P0-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€56.20
€50.60
€45.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€56.20 excl tax

Specifications



Interface

TFT LCD MODULE

Pin No.

Symbol

Description

1

VLED+

LEDAnode

2

VLED+

LEDAnode

3

VGH

Positivepower forTFT

4

VGL

Negativepower forTFT





5





UPDN

Gateup ordownscan control.

UPDN = ”L”, STV2 output vertical start pulse and UD pin outputlogical“L”toGatedriver.(default)

UPDN = ”H”,STV1outputvertical startpulseandUDpinoutput

logical“H”to Gatedriver





6





SHLR

Sourceright orleft sequence control.

SHLR= ”L“, shiftleft:last data= S1←S2←S3........................................................................................... ←S1536=first

SHLR = ”H“,shiftright:firstdata=S1→S2→S3........................................................................................... →S1536 =last

data.(default)

7

VLED-

LED Cathode

8

VLED-

LED Cathode

9

AVDD

Analogpower

10

GND

Digitalground

11

D3P

MIPI datainput.

12

D3N

MIPI datainput.

13

GND

Digitalground

14

D2P

MIPI datainput.

15

D2N

MIPI datainput.

16

GND

Digitalground

17

CLKP

MIPIclockinput

18

CLKN

MIPIclockinput

19

GND

Digitalground

20

D1P

MIPI datainput.

21

D1N

MIPI datainput.

22

GND

Digitalground

23

D0P

MIPI datainput.

24

D0N

MIPI datainput.

25

GND

Digitalground

26

STBYB

Standbymode.





STBYB=”H“,normaloperation(default)

STBYB = ”L”, timing controller, source driver will turn off, all outputareGND.

27

RESET

Globalresetpin.Active Lowtoenter ResetState.Normallypull

high. ConnectingwithanRC resetcircuitforstability.

28

VDD(1.8V)

Digitalpower

29

VDD(1.8V)

Digitalpower

30

VCOMI

Commonvoltage



General Specifications

Item

Dimension

Unit

Size

10.1

inch

Dot Matrix

1024 RGB X 600

dots

Module dimension

235(W) x143(H) x 5.05(D)

mm

Active area

222.72 (H) x 125.28(V)

mm

Pixel pitch

0.2175(W) x 0.2088(H)

mm

LCD type

TFT, Normally Black, Transmissive

TFT Interface

4-Lanes MIPI

Driver IC

EK79007AD3 + EK73217BCGA or equivalent

Viewing Angle

85/85/85/85

Aspect Ratio

16:9

Backlight Type

LED,Normally White

With /Without TP

Without TP

Surface

Anti-Glare



Absolute Maximum Ratings

Item

Symbol

Min

Typ

Max

Unit

OperatingTemperature

TOP

-20

－

+70

℃

StorageTemperature

TST

-30

－

+80

℃

Note: Device is subject to be damaged permanently if stresses beyond those absolutemaximumratingslistedabove

  1. Temp.≦60℃,90%RHMAX.Temp.＞60℃,Absolutehumidityshallbelessthan90%RHat60℃



Electrical Characteristics

Typical Operation Conditions (At Ta=25°C)

Item

Symbol



Unit

Note

DigitalPower SupplyVoltageForLCD

VDD

1.71

1.8

1.89

V

Note1

AnalogPowerSupplyVoltage

AVDD

9.89

10.2

10.5

V

-

Gate OnPowerSupplyVoltage

VGH

19.4

20.0

20.6

V

-

Gate OffPowerSupplyVoltage

VGL

-10.3

-10.0

-9.7

V

-

CommonPower SupplyVoltage

VCOMI

4.0

4.3

4.6

V

Note2

Note1:VDD settingshouldmatchthesignalsoutputvoltage(refer toNote3)ofcustomer’ssystemboard.

Note 2.Please adjust VCOMI to make the flicker level be minimum.Note3:RESET,STBYB,U/D,L/R,SELB



Drawing

Products specifications
Brand Winstar
Size 10.1"
Resolution 1024x600
Active Area (mm) 222.72x125.28
Color Full Color
Display Interface MIPI
Display IC EK79007AD3 + EK73217BCGA
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 10.1"
Resolution 1024x600
Active Area (mm) 222.72x125.28
Color Full Color
Display Interface MIPI
Display IC EK79007AD3 + EK73217BCGA
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
