WF101-1024600JM#0SP8-FC

TFT 10.1'' 1024x600, LCD Module, Interface MIPI (EK79007AD3+EK73217BCGA), High Brightness 900cd/m², Wide View Angle (IPS), Capacitive touch panel USB/I2C interface (GG, ILI2511 IC)

MOQ

After sample PO, MP MOQ 500pcs



DESCRIPTION

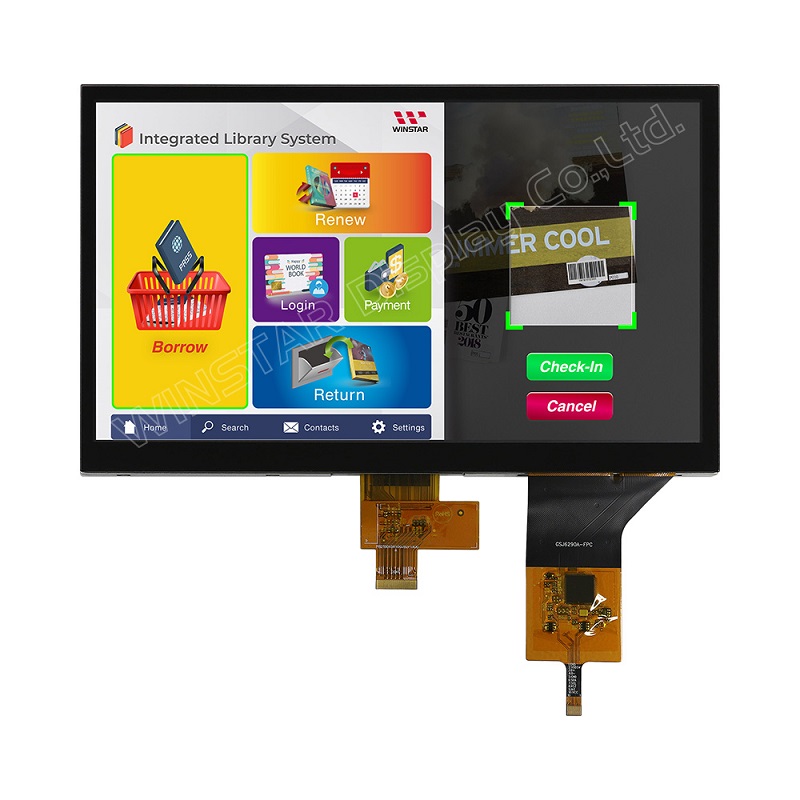

10.1 inch MIPI DSI interface High Brightness 1024 x 600 IPS TFT-LCD module with projected capacitive touch panel (PCAP). This TFT module is featured with IPS technology which is having the advantages of wider viewing angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical) and high brightness of 900 nits (typical value). This MIPI model is also available in resistive touch screen options.

This module is built-in with EK79007AD3 and EK73217BCGA driver ICs; it supports 4-Lanes MIPI (Mobile Industry Processor Interface) DSI (Display Serial Interface), as to the capacitive touch panel is built-in with ILI2511 IC which supports USB and I2C interface. The MIPI DSI interface becomes more popular because of the characteristics of High Speed Data Transmission and High Speed Clock Transmission. This TFT display module featured with glare surface panel; aspect ratio 16:9, it can be operated at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

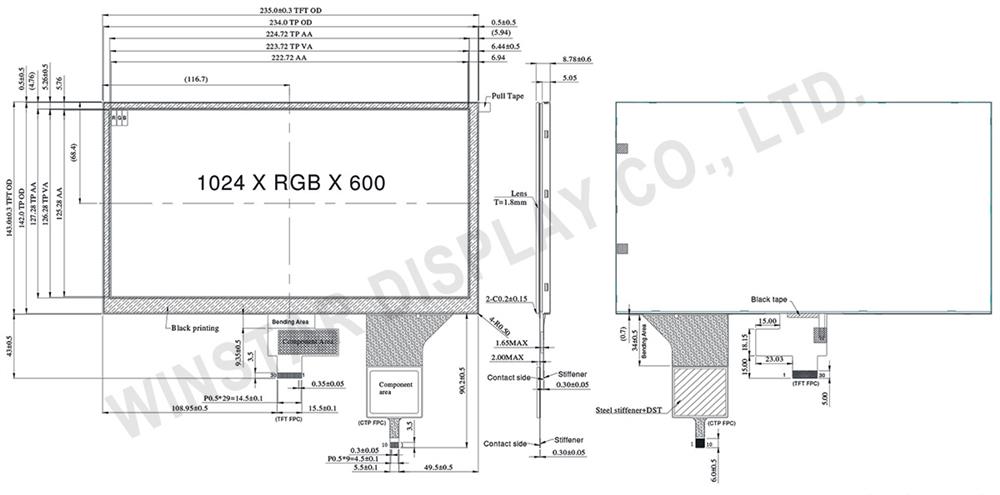

DRAWING

SPECIFICATIONS



Interface

TFT LCD Module

Pin No.SymbolDescription
1 VLED+ LED Anode
2 VLED+ LED Anode
3 VGH Positive power for TFT
4 VGL Negative power for TFT
5 UPDN Gate up or down scan control.
UPDN = ”L”, STV2 output vertical start pulse and UD pin output logical “L” to Gate driver. (default)
UPDN = ”H”, STV1 output vertical start pulse and UD pin output logical “H” to Gate driver
6 SHLR Source right or left sequence control.
SHLR = ”L“, shift left: last data = S1←S2←S3….......←S1536 = first data.
SHLR = ”H“, shift right: first data = S1→S2→S3….....→S1536 = last data.(default)
7 VLED- LED Cathode
8 VLED- LED Cathode
9 AVDD Analog power
10 GND Digital ground
11 D3P MIPI data input.
12 D3N MIPI data input.
13 GND Digital ground
14 D2P MIPI data input.
15 D2N MIPI data input.
16 GND Digital ground
17 CLKP MIPI clock input
18 CLKN MIPI clock input
19 GND Digital ground
20 D1P MIPI data input.
21 D1N MIPI data input.
22 GND Digital ground
23 D0P MIPI data input.
24 D0N MIPI data input.
25 GND Digital ground
26 STBYB Standby mode.
STBYB = ”H“,normal operation(default)
STBYB = ”L”, timing controller, source driver will turn off, all output are GND.
27 RESET Global reset pin. Active Low to enter Reset State. Normally pull high. Connecting with an RC reset circuit for stability.
28 VDD (1.8V) Digital power
29 VDD (1.8V) Digital power
30 VCOMI Common voltage




PCAP PIN Definition

PinSymbolFunction
1 USB_VSS System ground
2 USB_VDD 5V Power supply
3 USB_D+ Data +
4 USB_D- Data -
5 VSS System ground
6 SDA I2C data input and output
7 SCL I2C clock input
8 RST External Reset, Low is active
9 INT External interrupt to the host
10 VDDT 3.3 Power supply



General Specifications

ItemDimensionUnit
Size 10.1 inch
Dot Matrix 1024 RGB x 600 dots
Module dimension 235(W) x 143(H) x 8.78(D) mm
Active area 222.72 (H) x 125.28(V) mm
Pixel pitch 0.2175(W) x 0.2088(H) mm
LCD type TFT, Normally Black, Transmissive
Interface 4-Lanes MIPI
Driver IC EK79007AD3 + EK73217BCGA or equivalent
Viewing Angle 85/85/85/85
Aspect Ratio 16:9
Backlight Type LED, Normally White
PCAP IC ILI2511 or equivalent
PCAP Interface USB (I2C available)
PCAP FW Version: V6.0.0.0.62.90.1.2
Touch Panel Projected Capacitive Touch Screen, PCAP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

Typical Operation Conditions (At Ta = 25 °C,)

ItemSymbolMin.Typ.Max.Unit
Digital Power Supply Voltage For LCD VDD 1.71 1.8 1.89 V
Analog Power Supply Voltage AVDD 9.89 10.2 10.5 V
Gate On Power Supply Voltage VGH 19.4 20.0 20.6 V
Gate Off Power Supply Voltage VGL -10.3 -10.0 -9.7 V
Common Power Supply Voltage VCOMI 4.0 4.3 4.6 V
Supply PCAP VDDT 3.0 3.3 3.6 V
IVDDT   90.5 115 mA
USB_VDD 5V 4.4 5.0 5.5 V
I VDD 5V 97.8 120 mA


SKU: WF101-1024600JM#0SP8-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
Price
€118.10
€116.10
€99.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€118.10 excl tax

MOQ

After sample PO, MP MOQ 500pcs



DESCRIPTION

10.1 inch MIPI DSI interface High Brightness 1024 x 600 IPS TFT-LCD module with projected capacitive touch panel (PCAP). This TFT module is featured with IPS technology which is having the advantages of wider viewing angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical) and high brightness of 900 nits (typical value). This MIPI model is also available in resistive touch screen options.

This module is built-in with EK79007AD3 and EK73217BCGA driver ICs; it supports 4-Lanes MIPI (Mobile Industry Processor Interface) DSI (Display Serial Interface), as to the capacitive touch panel is built-in with ILI2511 IC which supports USB and I2C interface. The MIPI DSI interface becomes more popular because of the characteristics of High Speed Data Transmission and High Speed Clock Transmission. This TFT display module featured with glare surface panel; aspect ratio 16:9, it can be operated at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.



DRAWING

SPECIFICATIONS



Interface

TFT LCD Module

Pin No.SymbolDescription
1 VLED+ LED Anode
2 VLED+ LED Anode
3 VGH Positive power for TFT
4 VGL Negative power for TFT
5 UPDN Gate up or down scan control.
UPDN = ”L”, STV2 output vertical start pulse and UD pin output logical “L” to Gate driver. (default)
UPDN = ”H”, STV1 output vertical start pulse and UD pin output logical “H” to Gate driver
6 SHLR Source right or left sequence control.
SHLR = ”L“, shift left: last data = S1←S2←S3….......←S1536 = first data.
SHLR = ”H“, shift right: first data = S1→S2→S3….....→S1536 = last data.(default)
7 VLED- LED Cathode
8 VLED- LED Cathode
9 AVDD Analog power
10 GND Digital ground
11 D3P MIPI data input.
12 D3N MIPI data input.
13 GND Digital ground
14 D2P MIPI data input.
15 D2N MIPI data input.
16 GND Digital ground
17 CLKP MIPI clock input
18 CLKN MIPI clock input
19 GND Digital ground
20 D1P MIPI data input.
21 D1N MIPI data input.
22 GND Digital ground
23 D0P MIPI data input.
24 D0N MIPI data input.
25 GND Digital ground
26 STBYB Standby mode.
STBYB = ”H“,normal operation(default)
STBYB = ”L”, timing controller, source driver will turn off, all output are GND.
27 RESET Global reset pin. Active Low to enter Reset State. Normally pull high. Connecting with an RC reset circuit for stability.
28 VDD (1.8V) Digital power
29 VDD (1.8V) Digital power
30 VCOMI Common voltage




PCAP PIN Definition

PinSymbolFunction
1 USB_VSS System ground
2 USB_VDD 5V Power supply
3 USB_D+ Data +
4 USB_D- Data -
5 VSS System ground
6 SDA I2C data input and output
7 SCL I2C clock input
8 RST External Reset, Low is active
9 INT External interrupt to the host
10 VDDT 3.3 Power supply



General Specifications

ItemDimensionUnit
Size 10.1 inch
Dot Matrix 1024 RGB x 600 dots
Module dimension 235(W) x 143(H) x 8.78(D) mm
Active area 222.72 (H) x 125.28(V) mm
Pixel pitch 0.2175(W) x 0.2088(H) mm
LCD type TFT, Normally Black, Transmissive
Interface 4-Lanes MIPI
Driver IC EK79007AD3 + EK73217BCGA or equivalent
Viewing Angle 85/85/85/85
Aspect Ratio 16:9
Backlight Type LED, Normally White
PCAP IC ILI2511 or equivalent
PCAP Interface USB (I2C available)
PCAP FW Version: V6.0.0.0.62.90.1.2
Touch Panel Projected Capacitive Touch Screen, PCAP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

Typical Operation Conditions (At Ta = 25 °C,)

ItemSymbolMin.Typ.Max.Unit
Digital Power Supply Voltage For LCD VDD 1.71 1.8 1.89 V
Analog Power Supply Voltage AVDD 9.89 10.2 10.5 V
Gate On Power Supply Voltage VGH 19.4 20.0 20.6 V
Gate Off Power Supply Voltage VGL -10.3 -10.0 -9.7 V
Common Power Supply Voltage VCOMI 4.0 4.3 4.6 V
Supply PCAP VDDT 3.0 3.3 3.6 V
IVDDT   90.5 115 mA
USB_VDD 5V 4.4 5.0 5.5 V
I VDD 5V 97.8 120 mA


Products specifications
Brand Winstar
Size 10.1"
Resolution 1024x600
Active Area (mm) 222.72x125.28
Color Full Color
Display Interface MIPI
Display IC No
View Angle IPS
Brightness Range High 601~1200cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2511
Preferred - Not Preferred Preferred
