WF101-1024600JPL#0SP0-FC

TFT 10.1'' 1024x600, LCD Module, Interface LVDS, High Brightness 1100cd/m², Wide View Angle (IPS), No touch, Single voltage 12V (power board)

MOQ

After sample PO, MP MOQ 500pcs



DESCRIPTION

Landscape mode 10.1 inch high brightness IPS TFT LCD module, it featured with resolution 1024x600 pixels. It is built in with EK79001HN and EK73215BCGA driver ICs, it supports LVDS interface, contrast ratio 800 (typical value), brightness 1100 nits (typical value), aspect ratio 16:9, anti-glare surface glass, normally black, transmissive LCD type. This 10.1" IPS TFT has a wider viewing angle than TN TFT, it's view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value).

Power board 12V. Operating temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃. Standard brightness version available.

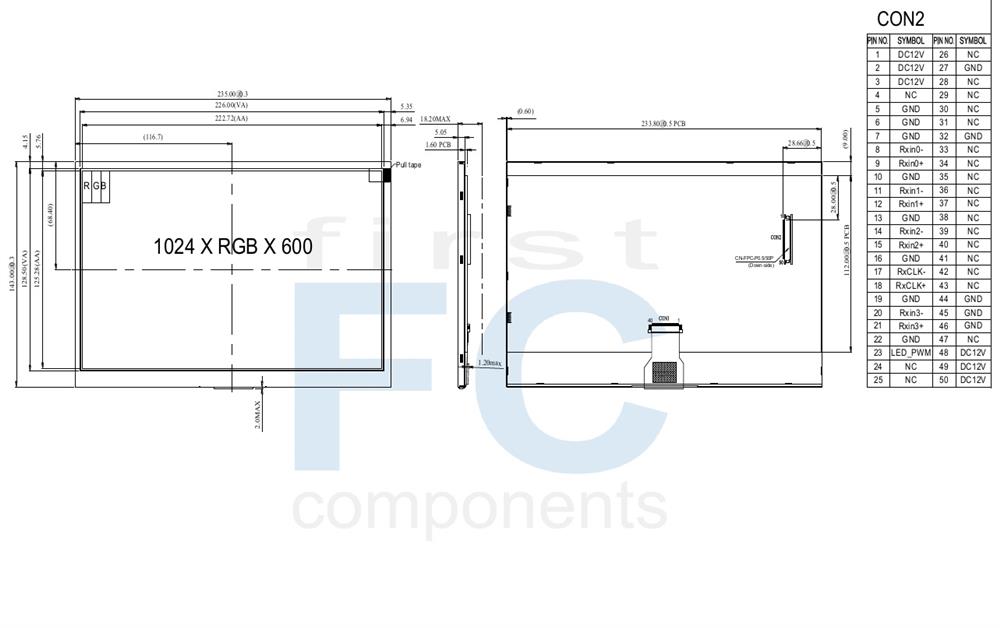

DRAWING

SKU: WF101-1024600JPL#0SP0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€95.20
€85.70
€69.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€95.20 excl tax

MOQ

After sample PO, MP MOQ 500pcs



DESCRIPTION

Landscape mode 10.1 inch high brightness IPS TFT LCD module, it featured with resolution 1024x600 pixels. It is built in with EK79001HN and EK73215BCGA driver ICs, it supports LVDS interface, contrast ratio 800 (typical value), brightness 1100 nits (typical value), aspect ratio 16:9, anti-glare surface glass, normally black, transmissive LCD type. This 10.1" IPS TFT has a wider viewing angle than TN TFT, it's view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value).

Power board 12V. Operating temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃. Standard brightness version available.

DRAWING

Products specifications
Brand Winstar
Size 10.1"
Resolution 1024x600
Active Area (mm) 222.72x125.28
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 10.1"
Resolution 1024x600
Active Area (mm) 222.72x125.28
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
