WF102-800480QD#001-FC

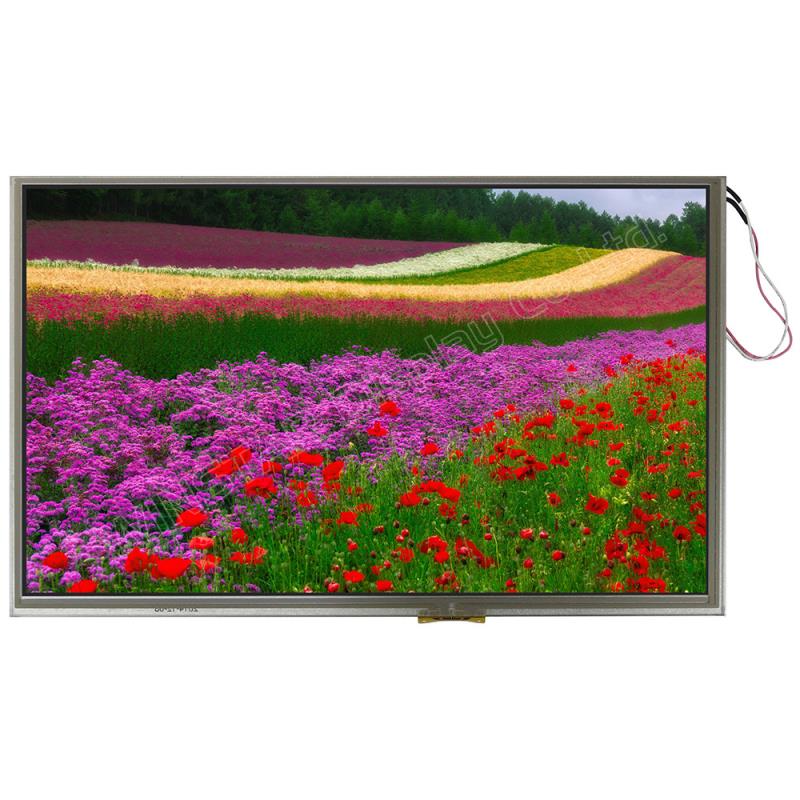

Picture of WF102-800480QD#001-FC Picture of WF102-800480QD#001-FC
TFT 10.2" 800x480, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), 250cd/m², Resistive touch panel

DESCRIPTION



This 10.2 inch TFT is built in with SSD1963 controller board plus a 36 pin-out connector on board. This model is available in 8080 family MPU 8bit/16bit options and already defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit. This display is having TFT Resistive Touch Screen on module.

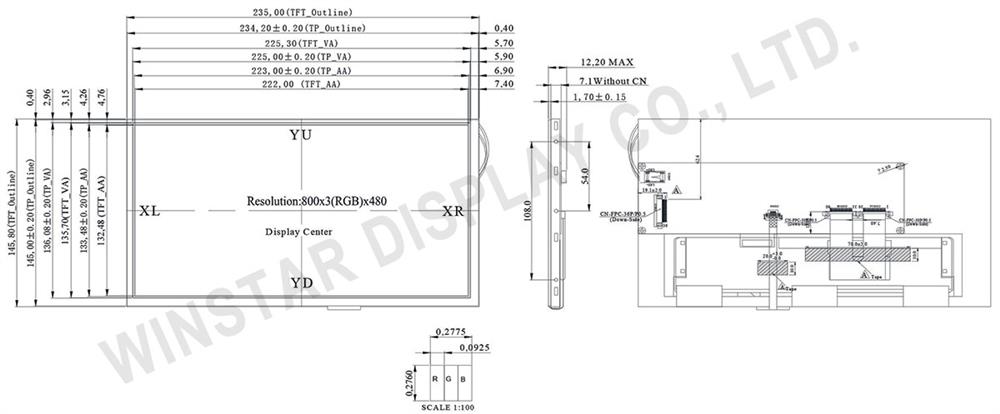

DRAWING







SPECIFICATIONS



Interface

PinSymbolFunction
1 GND System ground pin of the IC . Connect to system ground.
2 VDD Power Supply : +3.3V
3 BLE Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~14 DB0~DB7 Data bus
15~22 DB8~DB15 Data bus (When select 8bits Mode, this pin is NC)
23~24 NC No connect
25 CS Chip select
26 RST Hardware reset
27 L/R Left / right selection; Default L/R=H
28 U/D Up/down selection; ; Default U/D=L
29 XL Left electrode
30 YU Top electrode
31 XR Right electrode
32 YD Bottom electrode
33~34 VLED- Power for LED Driver IC(GND)
35~36 VLED+ Power for LED Driver IC(+5V)



General Specifications

ItemDimensionUnit
Size 10.2 inch
Dot Matrix 800 × RGB × 480 dots
Module dimension 235.0(H) × 145.8(V) × 12.4(D) mm
Active area 222.0(W) × 132.48(H) mm
Dot pitch 0.0925(W) × 0.276(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Backlight Type LED, Normally White
Controller IC SSD1963
Interface Digital 8080 family MPU 8bit/16bit
Touch Screen Resistive touch screen (RTP)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD － 3.0 3.1 3.3 V
Supply Current For LCM IDD － － 160 225 mA


SKU: WF102-800480QD#001-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€125.40
€119.20
€99.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€125.40 excl tax

DESCRIPTION



This 10.2 inch TFT is built in with SSD1963 controller board plus a 36 pin-out connector on board. This model is available in 8080 family MPU 8bit/16bit options and already defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit. This display is having TFT Resistive Touch Screen on module.



DRAWING







SPECIFICATIONS



Interface

PinSymbolFunction
1 GND System ground pin of the IC . Connect to system ground.
2 VDD Power Supply : +3.3V
3 BLE Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~14 DB0~DB7 Data bus
15~22 DB8~DB15 Data bus (When select 8bits Mode, this pin is NC)
23~24 NC No connect
25 CS Chip select
26 RST Hardware reset
27 L/R Left / right selection; Default L/R=H
28 U/D Up/down selection; ; Default U/D=L
29 XL Left electrode
30 YU Top electrode
31 XR Right electrode
32 YD Bottom electrode
33~34 VLED- Power for LED Driver IC(GND)
35~36 VLED+ Power for LED Driver IC(+5V)



General Specifications

ItemDimensionUnit
Size 10.2 inch
Dot Matrix 800 × RGB × 480 dots
Module dimension 235.0(H) × 145.8(V) × 12.4(D) mm
Active area 222.0(W) × 132.48(H) mm
Dot pitch 0.0925(W) × 0.276(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Backlight Type LED, Normally White
Controller IC SSD1963
Interface Digital 8080 family MPU 8bit/16bit
Touch Screen Resistive touch screen (RTP)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD － 3.0 3.1 3.3 V
Supply Current For LCM IDD － － 160 225 mA


Products specifications
Brand Winstar
Size 10.2"
Resolution 800x480
Active Area (mm) 222.00x132.48
Color Full Color
Display Interface MCU (Parallel)
Display IC SSD1963
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 36
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 10.2"
Resolution 800x480
Active Area (mm) 222.00x132.48
Color Full Color
Display Interface MCU (Parallel)
Display IC SSD1963
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 36
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Related products
Picture of SML2CD36X92BDX6BL-P0.5-S4

SML2CD36X92BDX6BL-P0.5-S4

FFC Cable 36 pins, 0.5mm pitch, 100mm length, Same side
From €3.40 excl tax
Picture of MOLEX_54104-3633

MOLEX_54104-3633

ZIF Connector 36 pins, 0.5mm pitch, Top contact
From €1.90 excl tax
Picture of MOLEX_54132-3633

MOLEX_54132-3633

ZIF Connector 36 pins, 0.5mm pitch, Bottom contact
From €1.80 excl tax

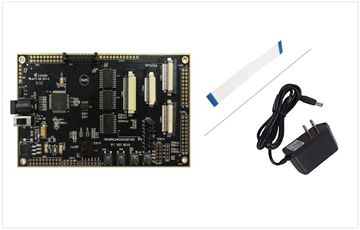

Picture of WWPIC24F-A-00#102Q-RTP
