WF18-128160HD#0S0-FC

TFT 1.77" 128x160, Portrait, LCD + IC Controller, Interface MCU (Parallel/SPI), High Brightness 900cd/m², No touch



DESCRIPTION



WF18­128160HD#0S0­FC is a color active matrix thin film transistor (TFT) liquid crystal display with polarizer. This model is composed of amorphous silicon TFT as a switching device. It is a transmissive type display operating in the normally white mode. This TFT LCD has a 1.77-inch diagonally measured active display area with 384 x 160 dot (128 vertical by 160 horizontal pixel) resolution. Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripes.

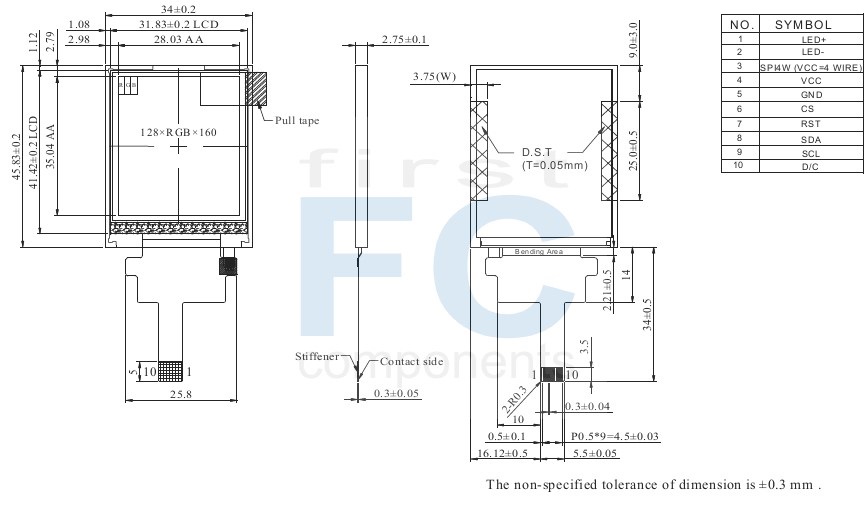

DRAWING



SPECIFICATIONS



Interface

LCM PIN Definition

Pin

Symbol

I/O

Function

Remark

1

LED+

P

Back light anode



2

LED-

P

Back light cathode



3

SPI4W

(VCC=4 WIRE)

I

- SPI4W=’0’, 3-line SPI Enable.
- SPI4W=’1’, 4-line SPI Enable.



4

VCC

P

Power Supply.



5

GND

P

Ground



6

CS

I

Chip enable (CSX)



7

RST

I

Reset signal (RESX)



8

SDA

I/O

Serial input/output signal in serial interface mode.



9

SCL

I

In Serial Interface, this is used as SCL.



10

D/C

I

Data/ command selection. (D/CX)





General Specifications

Item

Dimension

Unit

Size

1.77

inch

Dot Matrix

128 x RGB x 160(TFT)

dots

Module dimension

34.0(W) x 45.83(H) x 2.75(D)

mm

Active area

28.03 x 35.04

mm

Dot pitch

0.073 x 0.219

mm

LCD type

TFT, Normally White, Transmissive

View Direction

6 o’clock

Gray Scale Inversion Direction

12 o’clock

Aspect Ratio

Portrait

TFT IC

ST7735S or Equivalent

TFT Interface

SPI

Backlight Type

LED,Normally White

With /Without TP

Without TP

Surface

Anti-Glare



Electrical Characteristics

Operating conditions

Item

Symbol

Condition

Min

Typ

Max

Unit

Supply Voltage For Analog

VCC

-

2.5

2.75

3.7

V

Supply LCM current

ICC

-

-

0.9

2

mA



LED driving conditions

Parameter

Symbol



Unit

Remark

LED current

-

-

40

-

mA

-

Power Consumption

-

-

124

-

mW

-

LED voltage

VBL+

2.9

3.1

3.4

V

Note 1

LED Life Time

-

-

50,000

-

Hr

Note 2,3,4



Optical Characteristics

Item

Symbol



Min



Unit

Remark

Response time

Tr

8=0°、Φ=0°

-

2

4

.ms

Note 3,5

Tf



6

12

.ms

Contrast ratio

CR

At optimized viewing angle

400

500

-

-

Note 4,5

Color

Chromaticity

White

Wx

8=0°、Φ=0

0.26

0.31

0.36



Note

2,6,7

Wy

0.28

0.33

0.38

Viewing angle (Gray Scale Inversion Direction)



ΘR

CR≧10

35

45





Note 1

ΘL

35

45





ΦT

35

45



ΦB

10

20



Brightness

-

-

800

900

-

cd/m2

Center of
display

Uniformity

(U)

-

75

-

-

%

Note 5

SKU: WF18-128160HD#0S0-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€8.90
€6.50
€5.40
€5.20

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€8.90 excl tax



DESCRIPTION



WF18­128160HD#0S0­FC is a color active matrix thin film transistor (TFT) liquid crystal display with polarizer. This model is composed of amorphous silicon TFT as a switching device. It is a transmissive type display operating in the normally white mode. This TFT LCD has a 1.77-inch diagonally measured active display area with 384 x 160 dot (128 vertical by 160 horizontal pixel) resolution. Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripes.



DRAWING



SPECIFICATIONS



Interface

LCM PIN Definition

Pin

Symbol

I/O

Function

Remark

1

LED+

P

Back light anode



2

LED-

P

Back light cathode



3

SPI4W

(VCC=4 WIRE)

I

- SPI4W=’0’, 3-line SPI Enable.
- SPI4W=’1’, 4-line SPI Enable.



4

VCC

P

Power Supply.



5

GND

P

Ground



6

CS

I

Chip enable (CSX)



7

RST

I

Reset signal (RESX)



8

SDA

I/O

Serial input/output signal in serial interface mode.



9

SCL

I

In Serial Interface, this is used as SCL.



10

D/C

I

Data/ command selection. (D/CX)





General Specifications

Item

Dimension

Unit

Size

1.77

inch

Dot Matrix

128 x RGB x 160(TFT)

dots

Module dimension

34.0(W) x 45.83(H) x 2.75(D)

mm

Active area

28.03 x 35.04

mm

Dot pitch

0.073 x 0.219

mm

LCD type

TFT, Normally White, Transmissive

View Direction

6 o’clock

Gray Scale Inversion Direction

12 o’clock

Aspect Ratio

Portrait

TFT IC

ST7735S or Equivalent

TFT Interface

SPI

Backlight Type

LED,Normally White

With /Without TP

Without TP

Surface

Anti-Glare



Electrical Characteristics

Operating conditions

Item

Symbol

Condition

Min

Typ

Max

Unit

Supply Voltage For Analog

VCC

-

2.5

2.75

3.7

V

Supply LCM current

ICC

-

-

0.9

2

mA



LED driving conditions

Parameter

Symbol



Unit

Remark

LED current

-

-

40

-

mA

-

Power Consumption

-

-

124

-

mW

-

LED voltage

VBL+

2.9

3.1

3.4

V

Note 1

LED Life Time

-

-

50,000

-

Hr

Note 2,3,4



Optical Characteristics

Item

Symbol



Min



Unit

Remark

Response time

Tr

8=0°、Φ=0°

-

2

4

.ms

Note 3,5

Tf



6

12

.ms

Contrast ratio

CR

At optimized viewing angle

400

500

-

-

Note 4,5

Color

Chromaticity

White

Wx

8=0°、Φ=0

0.26

0.31

0.36



Note

2,6,7

Wy

0.28

0.33

0.38

Viewing angle (Gray Scale Inversion Direction)



ΘR

CR≧10

35

45





Note 1

ΘL

35

45





ΦT

35

45



ΦB

10

20



Brightness

-

-

800

900

-

cd/m2

Center of
display

Uniformity

(U)

-

75

-

-

%

Note 5

Products specifications
Brand Winstar
Size 1.77"
Resolution 128x160
Active Area (mm) 28.03x35.04
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC ST7735S
View Angle TN
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 10
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 1.77"
Resolution 128x160
Active Area (mm) 28.03x35.04
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC ST7735S
View Angle TN
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 10
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
