WF20-240320BD#0P15-FC

Picture of WF20-240320BD#0P15-FC Picture of WF20-240320BD#0P15-FC
TFT 2" 240x320, Portrait, LCD + IC Controller, Interface MCU (Parallel/SPI) IC ST7789VI, 400cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GG with optical air bonding OCA)

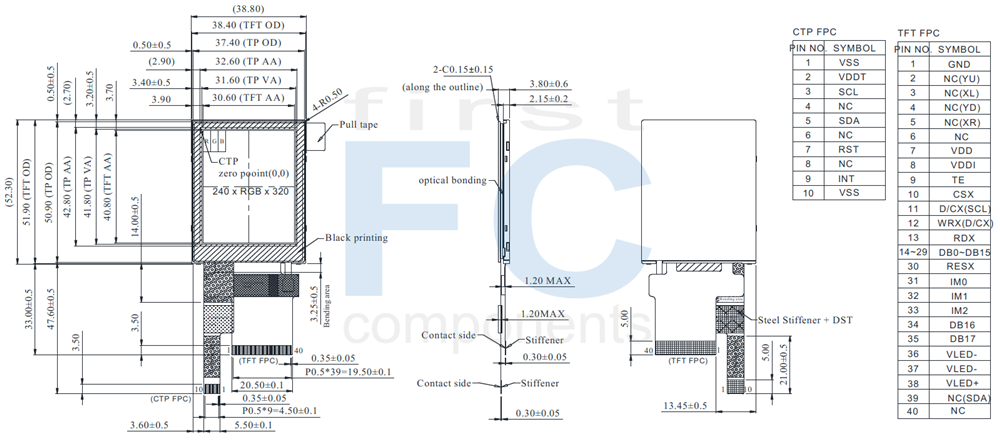

DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

NOSymbolFunction
1 GND Ground
2 NC(YU) No connection
3 NC(XL) No connection
4 NC(YD) No connection
5 NC(XR) No connection
6 NC No connection
7 VDD Power supply
8 VDDI Power Supply for I/O System.
9 TE Tearing effect signal is used to synchronize MCU to frame memory
writing.
If not used, please let this pin open
10 CSX Chip selection pin
Low enable.
High disable.
11 DCX(SCL) (D/CX): This pin is used to select “Data or Command” in the parallel interface.
DCX=’1’: display data or parameter.
DCX=’0’: command data.
(SCL): When SPI mode,This pin is used to be serial interface clock.
12 WRX(D/CX) Display data/command selection
Second Data lane in 2 data lane serial interface.
(WRX): Write enable in MCU parallel interface.
(D/CX): When 4-SPI mode,This pin in 4-line serial interface
If not used, please fix this pin at VDDI or GND.
13 RDX -Read enable in 8080 MCU parallel interface.
-If not used, please fix this pin at VDDI or GND.
14~29 DB0~DB15 Data bus line
30 RESX System reset pin.
signal is active low
31 IM0 The MCU interface mode select.
IM2IM1IM0MPU Interface ModeData pin
0 0 0 80-8bit parallel I/F DB[7:0]
0 0 1 80-16bit parallel I/F DB[15:0]
0 1 0 80-9bit parallel I/F DB[8:0]
0 1 1 80-18bit parallel I/F DB[17:0]
1 0 1 3-line 9bit serial I/F SDA: in/out
1 1 0 4-line 8bit serial I/F SDA: in/out
32 IM1
33 IM2
34~35 DB16~DB17 Data bus line
36 VLED- Cathode of LED backlight.
37 VLED- Cathode of LED backlight.
38 VLED+ Anode of LED backlight.
39 NC(SDA) When SPI mode, This pin is SPI interface input/output pin.
The data is latched on the rising edge of the SCL signal.
If not used(NC), please fix this pin at VDDI or GND level.
40 NC No connection




PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply :
3 SCL I2C clock inputI2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 2 inch
Dot Matrix 240 x RGB x 320(TFT) dots
Module dimension 38.8(W) x 52.3(H) x3.8(D) mm
Active area 30.60 x 40.80 mm
Pixel Pitch 0.1275 x 0.1275 mm
LCD type TFT, Normally Black, Transmissive
TFT Interface MCU / SPI
TFT Driver IC ST7789VI or Equivalent
Viewing angle 80/80/80/80 (IPS)
Aspect Ratio 3:4
Backlight Type LED, Normally White
PCAP Driver IC GT911 or equivalent
PCAP Interface I2C
PCAP FW V92
PCAP  Resolution 240 * 320
Touch Panel With PCAP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － 70 ℃
Storage Temperature TST -30 － 80 ℃



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Analog VDD － 2.4 3.3 3.6 V
Interface Operation Voltage VDDI － 1.65 1.8 3.6 V
Supply Current For LCM IDD VDD = VDDI
= VCC=3.0V		 － 6.0 9.0 mA
Supply PCAP VPCAP － 2.8 － 3.3 V
IPCAP － － 8.0 12.0 mA


SKU: WF20-240320BD#0P15-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€34.60
€27.70
€22.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€34.60 excl tax

DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

NOSymbolFunction
1 GND Ground
2 NC(YU) No connection
3 NC(XL) No connection
4 NC(YD) No connection
5 NC(XR) No connection
6 NC No connection
7 VDD Power supply
8 VDDI Power Supply for I/O System.
9 TE Tearing effect signal is used to synchronize MCU to frame memory
writing.
If not used, please let this pin open
10 CSX Chip selection pin
Low enable.
High disable.
11 DCX(SCL) (D/CX): This pin is used to select “Data or Command” in the parallel interface.
DCX=’1’: display data or parameter.
DCX=’0’: command data.
(SCL): When SPI mode,This pin is used to be serial interface clock.
12 WRX(D/CX) Display data/command selection
Second Data lane in 2 data lane serial interface.
(WRX): Write enable in MCU parallel interface.
(D/CX): When 4-SPI mode,This pin in 4-line serial interface
If not used, please fix this pin at VDDI or GND.
13 RDX -Read enable in 8080 MCU parallel interface.
-If not used, please fix this pin at VDDI or GND.
14~29 DB0~DB15 Data bus line
30 RESX System reset pin.
signal is active low
31 IM0 The MCU interface mode select.
IM2IM1IM0MPU Interface ModeData pin
0 0 0 80-8bit parallel I/F DB[7:0]
0 0 1 80-16bit parallel I/F DB[15:0]
0 1 0 80-9bit parallel I/F DB[8:0]
0 1 1 80-18bit parallel I/F DB[17:0]
1 0 1 3-line 9bit serial I/F SDA: in/out
1 1 0 4-line 8bit serial I/F SDA: in/out
32 IM1
33 IM2
34~35 DB16~DB17 Data bus line
36 VLED- Cathode of LED backlight.
37 VLED- Cathode of LED backlight.
38 VLED+ Anode of LED backlight.
39 NC(SDA) When SPI mode, This pin is SPI interface input/output pin.
The data is latched on the rising edge of the SCL signal.
If not used(NC), please fix this pin at VDDI or GND level.
40 NC No connection




PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply :
3 SCL I2C clock inputI2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 2 inch
Dot Matrix 240 x RGB x 320(TFT) dots
Module dimension 38.8(W) x 52.3(H) x3.8(D) mm
Active area 30.60 x 40.80 mm
Pixel Pitch 0.1275 x 0.1275 mm
LCD type TFT, Normally Black, Transmissive
TFT Interface MCU / SPI
TFT Driver IC ST7789VI or Equivalent
Viewing angle 80/80/80/80 (IPS)
Aspect Ratio 3:4
Backlight Type LED, Normally White
PCAP Driver IC GT911 or equivalent
PCAP Interface I2C
PCAP FW V92
PCAP  Resolution 240 * 320
Touch Panel With PCAP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － 70 ℃
Storage Temperature TST -30 － 80 ℃



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Analog VDD － 2.4 3.3 3.6 V
Interface Operation Voltage VDDI － 1.65 1.8 3.6 V
Supply Current For LCM IDD VDD = VDDI
= VCC=3.0V		 － 6.0 9.0 mA
Supply PCAP VPCAP － 2.8 － 3.3 V
IPCAP － － 8.0 12.0 mA


Products specifications
Brand Winstar
Size 2"
Resolution 240x320
Active Area (mm) 30.60x40.80
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC ST7789VI
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2"
Resolution 240x320
Active Area (mm) 30.60x40.80
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC ST7789VI
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
