WF24-240320LS#0P0B-FC

Picture of WF24-240320LS#0P0B-FC Picture of WF24-240320LS#0P0B-FC
TFT 2.4'' 240x320, Circular, LCD + IC Controller, Interface MCU (RGB/SPI) IC ST7701S, 300cd/m², Wide View Angle (IPS), No touch, Anti-Glare surface

DESCRIPTION

2.4 inch IPS TFT-LCD display module; made of resolution 240 x 320 pixels. This module is built in with ILI9341V controller IC, it supports MCU8080 and SPI interface, it featured with IPS panel which is having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800 (typical value), brightness 500 nits (typical value), Anti-Glare surface panel.

This 2.4 inch TFT- LCD display is portrait mode; it integrated controller IC ILI9341V on module, Supply Voltage for Analog (VCI) from 2.5V to 3.3V. Operating temperatures from -20℃ to +70℃; storage temperatures from -30 to +80 ℃.



DRAWING



SPECIFICATIONS



Interface Pin Function

NOSymbolFunctionI/O
1 GND Ground P
2-6 NC No connection -
7 VCI High voltage power supply for analog circuit blocks
(2.5 ~ 3.3 V)		 P
8 IOVCC Low voltage power supply for interface logic circuits
(1.65 ~ 3.3 V)		 P
9 TE Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low.
If not used, open this pin.		 O
10 CS Chip select signal. I
11 D/CX(SCL) (D/CX): This pin is used to select “Data or Command” in the parallel interface.
When DCX = 1, data is selected.
When DCX = 0, command is selected.
(SCL): This pin is used as the serial interface clock in 3-wire 9-bit/4-wire 8-bit serial data interface.
If not used, this pin should be connected to VDDI or VSS.		 I
12 WR(SPI_D/C) (WRX) - 8080-Ⅰ/8080-Ⅱ system: Serves as a write signal and writes data at the rising edge.
(D/CX) - 4-line system: Serves as the selector of command or parameter.
Fix to VDDI level when not in use.		 I
13 RD 8080-Ⅰ/8080-Ⅱ system (RDX): Serves as a read signal and MCU read data at the rising edge.
Fix to VDDI level when not in use.		 I
14-29 DB0~DB15 18-bit parallel bi-directional data bus for MCU system and RGB interface mode Fix to VSS level when not in use. I/O
30 RESET This signal will reset the device and must be applied to properly initialize the chip.
Signal is active low.		 I

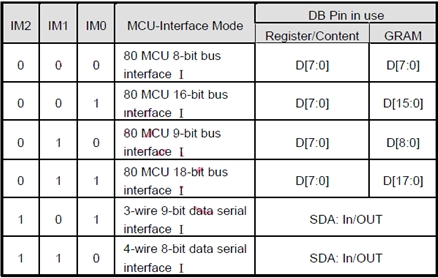

31 IM0 Select the MCU interface mode

MPU Parallel interface bus and serial interface select
If use RGB Interface must select serial interface.
* : Fix this pin at VDDI or VSS.		 I
32 IM1
33 IM2
34 DB16 18-bit parallel bi-directional data bus for MCU system and RGB interface mode Fix to VSS level when not in use. I/O
35 DB17
36 LEDK Cathode of LED backlight. P
37 LEDK Cathode of LED backlight. P
38 LEDA Anode of LED backlight. P
39 SDI(SDA) When IM[3] : Low, Serial in/out signal.
When IM[3] : High, Serial input signal.
The data is applied on the rising edge of the SCL signal.
If not used, fix this pin at VDDI or VSS.		 I/O
40 SDO Serial output signal.
The data is outputted on the falling edge of the SCL signal.
If not used, open this pin		 O



General Specifications

ItemDimensionUnit
Size 2.4 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 42.72(W) × 60.26(H) × 2.8(D) mm
Active area 36.72 × 48.96 mm
Dot pitch 0.153 × 0.153 mm
LCD type TFT, Normally Black, Transmissive
Controller IC ILI9341V or equivalent
Viewing angle 80/80/80/80
Aspect Ratio Portrait
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage For Analog VCI 2.5 — 3.3 V
Supply Voltage For Logic IOVCC 2.5 — 3.3 V
Supply Current For LCM ICI — 6 9 mA
SKU: WF24-240320LS#0P0B-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€14.60
€10.70
€9.20
€8.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€14.60 excl tax

DESCRIPTION

2.4 inch IPS TFT-LCD display module; made of resolution 240 x 320 pixels. This module is built in with ILI9341V controller IC, it supports MCU8080 and SPI interface, it featured with IPS panel which is having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800 (typical value), brightness 500 nits (typical value), Anti-Glare surface panel.

This 2.4 inch TFT- LCD display is portrait mode; it integrated controller IC ILI9341V on module, Supply Voltage for Analog (VCI) from 2.5V to 3.3V. Operating temperatures from -20℃ to +70℃; storage temperatures from -30 to +80 ℃.



DRAWING



SPECIFICATIONS



Interface Pin Function

NOSymbolFunctionI/O
1 GND Ground P
2-6 NC No connection -
7 VCI High voltage power supply for analog circuit blocks
(2.5 ~ 3.3 V)		 P
8 IOVCC Low voltage power supply for interface logic circuits
(1.65 ~ 3.3 V)		 P
9 TE Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low.
If not used, open this pin.		 O
10 CS Chip select signal. I
11 D/CX(SCL) (D/CX): This pin is used to select “Data or Command” in the parallel interface.
When DCX = 1, data is selected.
When DCX = 0, command is selected.
(SCL): This pin is used as the serial interface clock in 3-wire 9-bit/4-wire 8-bit serial data interface.
If not used, this pin should be connected to VDDI or VSS.		 I
12 WR(SPI_D/C) (WRX) - 8080-Ⅰ/8080-Ⅱ system: Serves as a write signal and writes data at the rising edge.
(D/CX) - 4-line system: Serves as the selector of command or parameter.
Fix to VDDI level when not in use.		 I
13 RD 8080-Ⅰ/8080-Ⅱ system (RDX): Serves as a read signal and MCU read data at the rising edge.
Fix to VDDI level when not in use.		 I
14-29 DB0~DB15 18-bit parallel bi-directional data bus for MCU system and RGB interface mode Fix to VSS level when not in use. I/O
30 RESET This signal will reset the device and must be applied to properly initialize the chip.
Signal is active low.		 I
31 IM0 Select the MCU interface mode

MPU Parallel interface bus and serial interface select
If use RGB Interface must select serial interface.
* : Fix this pin at VDDI or VSS.		 I
32 IM1
33 IM2
34 DB16 18-bit parallel bi-directional data bus for MCU system and RGB interface mode Fix to VSS level when not in use. I/O
35 DB17
36 LEDK Cathode of LED backlight. P
37 LEDK Cathode of LED backlight. P
38 LEDA Anode of LED backlight. P
39 SDI(SDA) When IM[3] : Low, Serial in/out signal.
When IM[3] : High, Serial input signal.
The data is applied on the rising edge of the SCL signal.
If not used, fix this pin at VDDI or VSS.		 I/O
40 SDO Serial output signal.
The data is outputted on the falling edge of the SCL signal.
If not used, open this pin		 O



General Specifications

ItemDimensionUnit
Size 2.4 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 42.72(W) × 60.26(H) × 2.8(D) mm
Active area 36.72 × 48.96 mm
Dot pitch 0.153 × 0.153 mm
LCD type TFT, Normally Black, Transmissive
Controller IC ILI9341V or equivalent
Viewing angle 80/80/80/80
Aspect Ratio Portrait
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage For Analog VCI 2.5 — 3.3 V
Supply Voltage For Logic IOVCC 2.5 — 3.3 V
Supply Current For LCM ICI — 6 9 mA
Products specifications
Brand Winstar
Size 2.4"
Resolution 240x320
Active Area (mm) 36.72x48.96
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC ILI9341
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.4"
Resolution 240x320
Active Area (mm) 36.72x48.96
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC ILI9341
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
