WF24-240320LS#0P1-FC

TFT 2.4'' 240x320, Portrait, LCD + IC Controller, Interface MCU-SPI IC ILI9341, 350cd/m², Wide View Angle (IPS), Resistive touch panel

DESCRIPTION



2.4 inch IPS TFT-LCD display module; made of resolution 240 x 320 pixels. Resistive touch panel on board. This module is built in with ILI9341V controller IC, it supports MCU8080 and SPI interface, it featured with IPS panel which is having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800 (typical value), brightness 350 nits (typical value).

This 2.4 inch TFT- LCD display is portrait mode; it integrated controller IC ILI9341V on module, Supply Voltage for Analog (VCI) from 2.5V to 3.3V. Operating temperatures from -20℃ to +70℃; storage temperatures from -30 to +80 ℃.

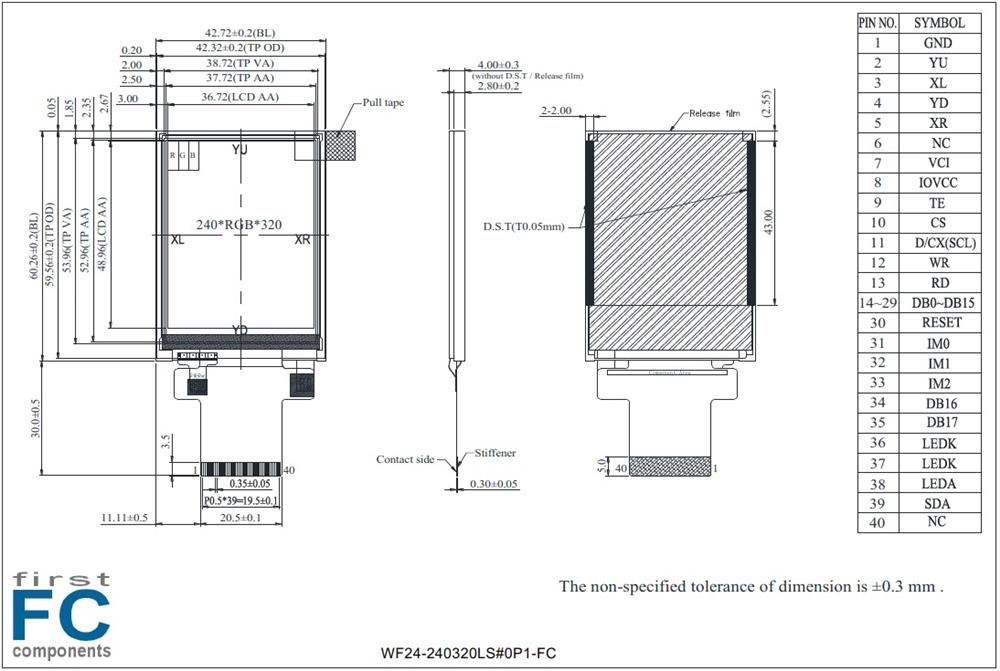

DRAWING

SKU: WF24-240320LS#0P1-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€16.50
€12.10
€10.40
€10.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€16.50 excl tax

DESCRIPTION



2.4 inch IPS TFT-LCD display module; made of resolution 240 x 320 pixels. Resistive touch panel on board. This module is built in with ILI9341V controller IC, it supports MCU8080 and SPI interface, it featured with IPS panel which is having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800 (typical value), brightness 350 nits (typical value).

This 2.4 inch TFT- LCD display is portrait mode; it integrated controller IC ILI9341V on module, Supply Voltage for Analog (VCI) from 2.5V to 3.3V. Operating temperatures from -20℃ to +70℃; storage temperatures from -30 to +80 ℃.



DRAWING

Products specifications
Brand Winstar
Size 2.4"
Resolution 240x320
Active Area (mm) 36.72x48.96
Color Full Color
Interface MCU/SPI
Built-in Controller ILI9341
View Angle IPS
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.4"
Resolution 240x320
Active Area (mm) 36.72x48.96
Color Full Color
Interface MCU/SPI
Built-in Controller ILI9341
View Angle IPS
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
