WF24-240320RD#0P1-FC

Picture of WF24-240320RD#0P1-FC Picture of WF24-240320RD#0P1-FC
TFT 2.4" 240x320 Portrait LCD Panel, Interface MCU (Parallel/SPI), IC ILI9340X, 350cd/m², Wide View Angle (IPS), Resistive touch panel

DESCRIPTION

TFT 2.4" is a IPS transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD module. It is usually designed for industrial application and this module follows RoHs.

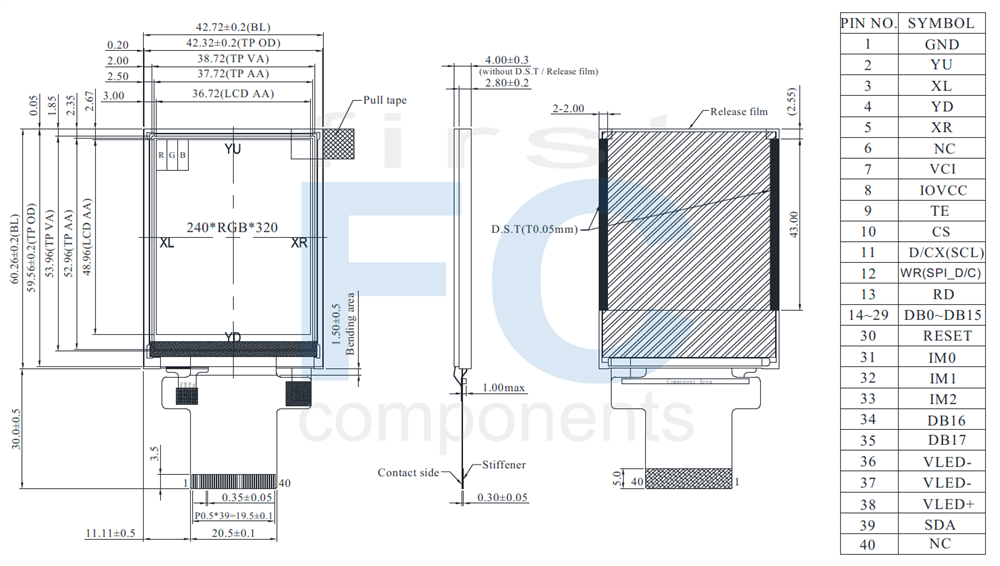

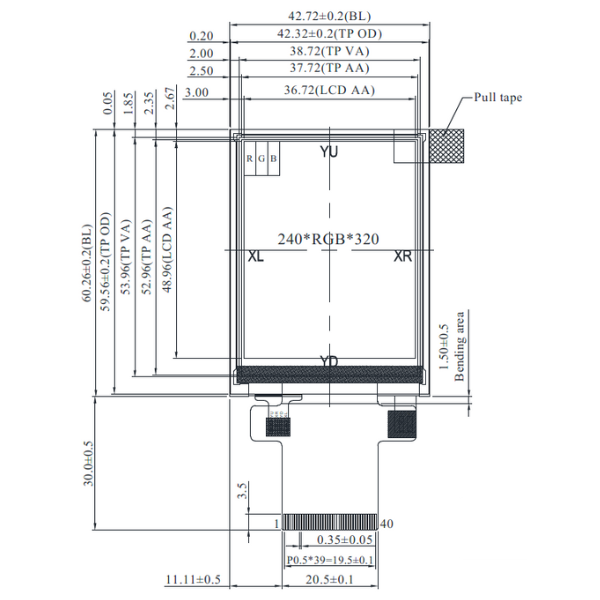

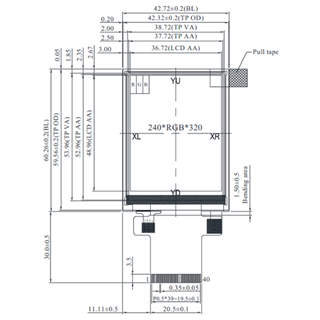

DRAWING



General Specifications

ItemDimensionUnit
Size 2.4 inch
Dot Matrix 240xRGBx320(TFT) dots
Module dimension 42.72x60.26x4.0 mm
Active area 36.72x48.96 mm
Dot pitch 0.153x0.153 mm
LCD type TFT, Normally black, Transmissive
TFT Driver IC ILI9340X or equivalent
TFT Interface MCU/SPI
View angle 80/80/80/80
Aspect Ratio Portrait
Backlight Type LED, Normally White
With/Without TP With RTP
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 - +70 °C
Storage Temperature TST -30 - +80 °C



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage For Analog VCI 2.5 - 3.3 V
Supply Current For Logic IOVCC 2.5 - 3.3 V
Supply Current For LCM ICC IOVCC=VCI
=VCC=3.3V		 23.0 35.0 mA



Interface

PinSymbolFunctionI/O
1 GND Ground P
2 YU Top electrode -
3 XL Left electrode -
4 YD Bottom electrode -
5 XR Right electrode -
6 NC No connection -
7 VCI High voltage power supply for analog circuit blocks (2.5~3.3V) P
8 IOVCC Low voltage power supply for interface logic circuits (2.5~3.3V) P
9 TE Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low.
If not used, open this pin. 		 O
10 CS Chip select signal. I
11 D/CX(SCL) (DCX) This pin is used to select “Data or Command” in the parallel interface.
When DCX = ’1’, data is selected.
When DCX = ’0’, command is selected.
(SCL) This pin is also used as serial interface clock in 3-line 9-bit / 4-line 8-bit serial data interface.
If it's not used, this pin should be connected to IOVCC or Ground.		 I
12 WR(SPI_D/C) - 8080-Ⅰ/8080-Ⅱ system (WRX): Serves as a write signal and writes data at the rising edge.
- 4-line system (D/CX): Serves as Data or Command select.
- In serial interface "2-data-lane data" transfers mode, serves as a second data pin (SDA2)
Fix to IOVCC or GND level when not in use. 		 I
13 RD 8080-Ⅰ/8080-Ⅱ system (RDX): Serves as a read signal and MCU read data at the rising edge.
Fix to IOVCC or GND level when not in use. 		 I
14~29 DB0~DB15 18-bit parallel bi-directional data bus for MCU system.  Fix to GND level when not in use.  I/O
30 RESET This signal will reset the device and must be applied properly to initialize the chip.
Signal is active low. 		 I
31 IM0 Select the MCU interface mode I
32 IM1
33 IM2
IM2 IM! IM0 MCU-Interface Mode
DB Pin in use
Register/Content GRAM
0 0 0   80 MCU 8-bit bus interface I DB[7:0] DB[7:0]
0 0 1   80 MCU 16-bit bus interface I DB[7:0] DB[15:0]
0 1 0   80 MCU 9-bit bus interface I DB[7:0] DB[8:0]
0 1 1   80 MCU 18-bit bus interface I DB[7:0] DB[17:0]
1 0 1   3-line 9-bit data serial interface I SDA: In/Out
1 1 0   4-line 8-bit data serial interface I
SDA: In/Out

MPU Parallel interface bus and serial interface select When the RGB Interface is used, the serial interface is selected for command setting.
* : Fix these pins at IOVCC or GND.
34 DB16 18-bit parallel bi-directional data bus for MCU system and RGB interface mode
Fix to GND level when not to in use.		 I/O
35 DB17
36 VLED- Cathode for LED backlight. P
37 VLED- Cathode for LED backlight. P
38 VLED+ Anode for LED backlight. P
39 SDA SDA: Serial in/out signal.
The data is applied on the rising edge of the SCL signal.
If not used, fix this pin at IOVCC or GND.		 I/O
40 NC Not used, open this pin. N
SKU: WF24-240320RD#0P1-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€13.40
€9.80
€7.70
€7.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€13.40 excl tax

DESCRIPTION

TFT 2.4" is a IPS transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD module. It is usually designed for industrial application and this module follows RoHs.



DRAWING



General Specifications

ItemDimensionUnit
Size 2.4 inch
Dot Matrix 240xRGBx320(TFT) dots
Module dimension 42.72x60.26x4.0 mm
Active area 36.72x48.96 mm
Dot pitch 0.153x0.153 mm
LCD type TFT, Normally black, Transmissive
TFT Driver IC ILI9340X or equivalent
TFT Interface MCU/SPI
View angle 80/80/80/80
Aspect Ratio Portrait
Backlight Type LED, Normally White
With/Without TP With RTP
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 - +70 °C
Storage Temperature TST -30 - +80 °C



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage For Analog VCI 2.5 - 3.3 V
Supply Current For Logic IOVCC 2.5 - 3.3 V
Supply Current For LCM ICC IOVCC=VCI
=VCC=3.3V		 23.0 35.0 mA



Interface

PinSymbolFunctionI/O
1 GND Ground P
2 YU Top electrode -
3 XL Left electrode -
4 YD Bottom electrode -
5 XR Right electrode -
6 NC No connection -
7 VCI High voltage power supply for analog circuit blocks (2.5~3.3V) P
8 IOVCC Low voltage power supply for interface logic circuits (2.5~3.3V) P
9 TE Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low.
If not used, open this pin. 		 O
10 CS Chip select signal. I
11 D/CX(SCL) (DCX) This pin is used to select “Data or Command” in the parallel interface.
When DCX = ’1’, data is selected.
When DCX = ’0’, command is selected.
(SCL) This pin is also used as serial interface clock in 3-line 9-bit / 4-line 8-bit serial data interface.
If it's not used, this pin should be connected to IOVCC or Ground.		 I
12 WR(SPI_D/C) - 8080-Ⅰ/8080-Ⅱ system (WRX): Serves as a write signal and writes data at the rising edge.
- 4-line system (D/CX): Serves as Data or Command select.
- In serial interface "2-data-lane data" transfers mode, serves as a second data pin (SDA2)
Fix to IOVCC or GND level when not in use. 		 I
13 RD 8080-Ⅰ/8080-Ⅱ system (RDX): Serves as a read signal and MCU read data at the rising edge.
Fix to IOVCC or GND level when not in use. 		 I
14~29 DB0~DB15 18-bit parallel bi-directional data bus for MCU system.  Fix to GND level when not in use.  I/O
30 RESET This signal will reset the device and must be applied properly to initialize the chip.
Signal is active low. 		 I
31 IM0 Select the MCU interface mode I
32 IM1
33 IM2
IM2 IM! IM0 MCU-Interface Mode
DB Pin in use
Register/Content GRAM
0 0 0   80 MCU 8-bit bus interface I DB[7:0] DB[7:0]
0 0 1   80 MCU 16-bit bus interface I DB[7:0] DB[15:0]
0 1 0   80 MCU 9-bit bus interface I DB[7:0] DB[8:0]
0 1 1   80 MCU 18-bit bus interface I DB[7:0] DB[17:0]
1 0 1   3-line 9-bit data serial interface I SDA: In/Out
1 1 0   4-line 8-bit data serial interface I
SDA: In/Out

MPU Parallel interface bus and serial interface select When the RGB Interface is used, the serial interface is selected for command setting.
* : Fix these pins at IOVCC or GND.
34 DB16 18-bit parallel bi-directional data bus for MCU system and RGB interface mode
Fix to GND level when not to in use.		 I/O
35 DB17
36 VLED- Cathode for LED backlight. P
37 VLED- Cathode for LED backlight. P
38 VLED+ Anode for LED backlight. P
39 SDA SDA: Serial in/out signal.
The data is applied on the rising edge of the SCL signal.
If not used, fix this pin at IOVCC or GND.		 I/O
40 NC Not used, open this pin. N
Products specifications
Brand Winstar
Size 2.4"
Resolution 240x320
Active Area (mm) 36.72x48.96
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC ILI9340X
View Angle IPS
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.4"
Resolution 240x320
Active Area (mm) 36.72x48.96
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC ILI9340X
View Angle IPS
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
