RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DESCRIPTION

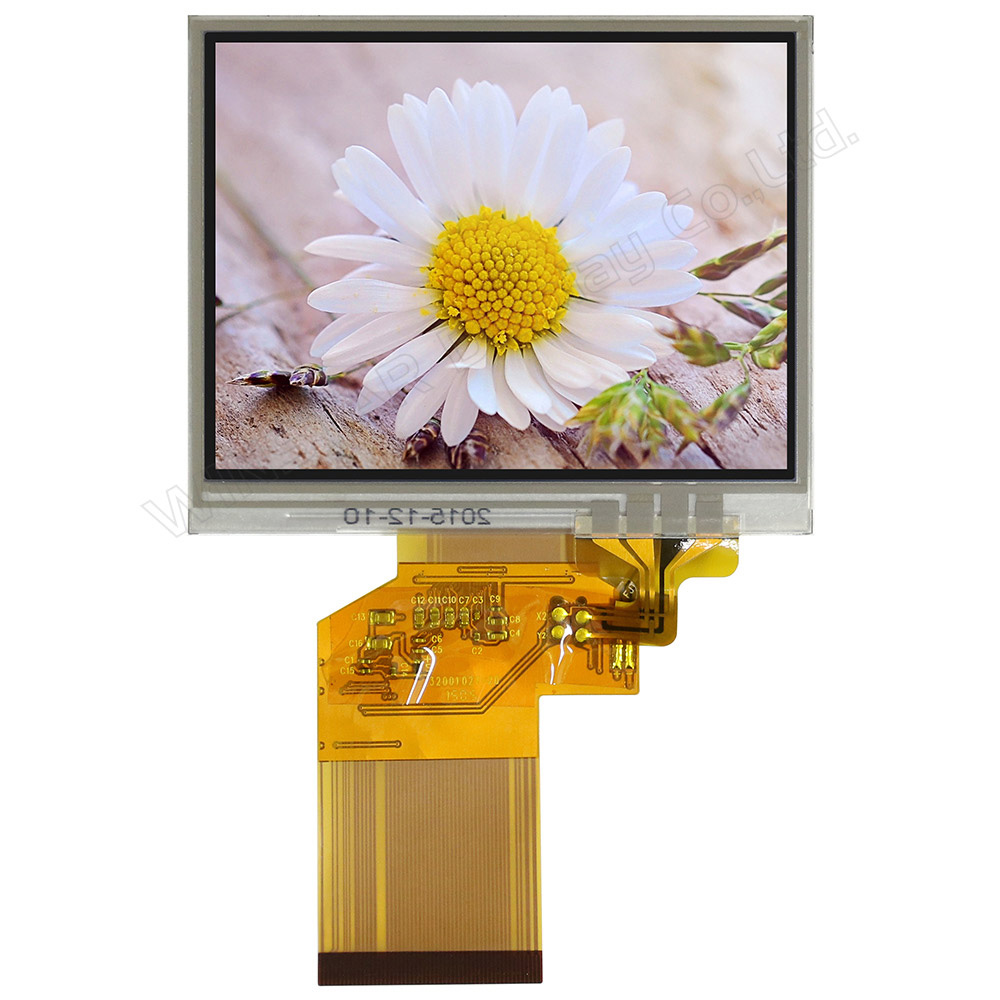

The 3.5-inch TFT LCD Display Module, designated as WF35-320240LD#0S1-FC, epitomizes top-tier display technology with its transmissive-type color active matrix TFT LCD technology, delivering exceptional image performance. Designed to meet a wide range of application needs, this TFT module boasts several outstanding features.

With its 3.5-inch diagonal size and a resolution of 320 x 240 dots, the WF35-320240LD#0S1-FC ensures clear viewing angles, with a view direction at 12 o'clock and grayscale inversion direction at 6 o'clock.

Operating temperature ranges from -20°C to +70°C, with a storage temperature range of -30°C to +80°C, making it suitable for various environmental conditions. The aspect ratio of this display module is 4:3, offering an appropriate width-to-height ratio suitable for industrial control, medical equipment, and consumer electronics applications.

Equipped with the HX8238 TFT driver IC, it provides excellent display performance and stable operation. The TFT interface is 24-bit RGB, ensuring compatibility with high-speed data transmission for image rendering.

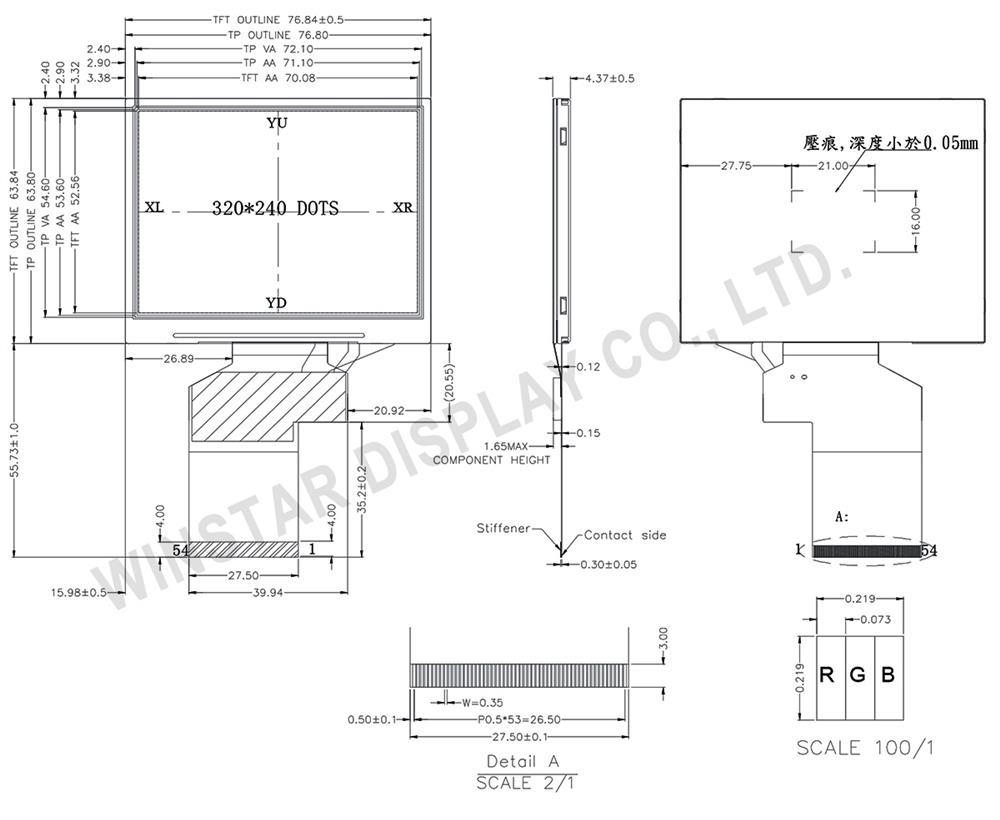

DRAWING
