WF35-320240X8#AP4-FC

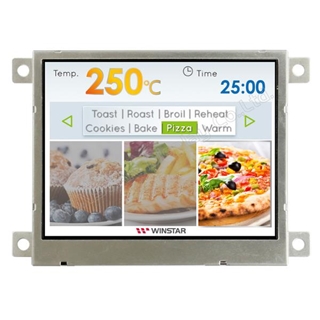

TFT 3.5" 320x240, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8bit), 500cd/m², Wide view angle (IPS), Frame, No touch

DESCRIPTION

TFT 3.5" is a IPS transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD module. It is usually designed for industrial application and this module follows RoHs.

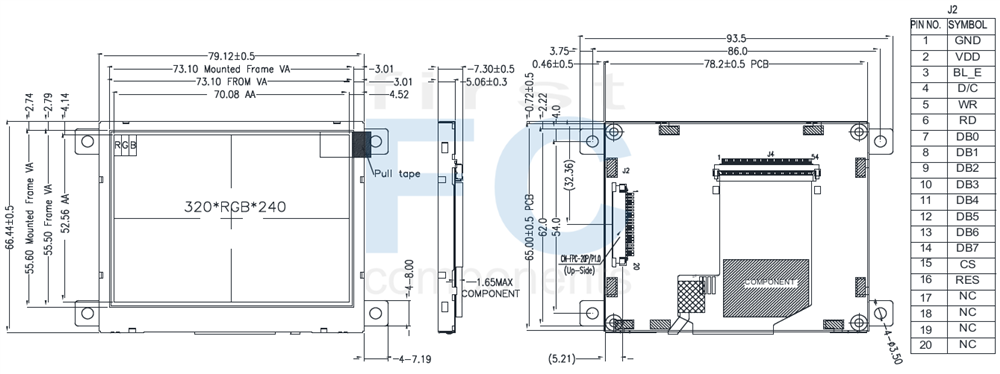

DRAWING

General Specifications

Item	Dimension	Unit
Size	3.5	inch
Dot Matrix	320xRGBx240(TFT)	dots
Module dimension	93.5(W)x66.44(H)x7.3(D)	mm
Active area	70.08x52.56	mm
Dot pitch	0.219x0.219	mm
LCD type	TFT, Normally black, Transmissive
View Direction	80/80/80/80
Aspect Ratio	4:3
Backlight Type	LED, Normally White
Controller IC	SSD1963
Interface	Digital 8080 family MPU 8bit
With/Without TP	Without TP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	-	+70	°C
Storage Temperature	TST	-30	-	+80	°C

Electrical Characteristics

Item	Symbol	Min	Typ	Max	Unit
Supply Voltage For LCM	VDD	3.0	3.3	3.6	V
Supply Current For LCM	IDD	-	170	260	mA

Interface

Pin	Symbol	Function
1	GND	System ground pin of the IC. Connect to system ground.
2	VDD	Power Supply: +3.3V
3	BL_E	Backlight control signal, H:On \ L:Off
4	D/C	Data/Command select
5	WR	Write strobe signal
6	RD	Read strobe signal
7	DB0	Data bus
8	DB1	Data bus
9	DB2	Data bus
10	DB3	Data bus
11	DB4	Data bus
12	DB5	Data bus
13	DB6	Data bus
14	DB7	Data bus
15	CS	Chip select
16	RES	Hardware reset
17	NC	No connect
18	NC	No connect
19	NC	No connect
20	NC	No connect

SKU: WF35-320240X8#AP4-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

FFC Cable
Display Connector

Price Breaks

Quantity

10+

Price

€41.70

€34.80

€29.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€41.70 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

General Specifications

Item	Dimension	Unit
Size	3.5	inch
Dot Matrix	320xRGBx240(TFT)	dots
Module dimension	93.5(W)x66.44(H)x7.3(D)	mm
Active area	70.08x52.56	mm
Dot pitch	0.219x0.219	mm
LCD type	TFT, Normally black, Transmissive
View Direction	80/80/80/80
Aspect Ratio	4:3
Backlight Type	LED, Normally White
Controller IC	SSD1963
Interface	Digital 8080 family MPU 8bit
With/Without TP	Without TP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	-	+70	°C
Storage Temperature	TST	-30	-	+80	°C

Electrical Characteristics

Item	Symbol	Min	Typ	Max	Unit
Supply Voltage For LCM	VDD	3.0	3.3	3.6	V
Supply Current For LCM	IDD	-	170	260	mA

Interface

Pin	Symbol	Function
1	GND	System ground pin of the IC. Connect to system ground.
2	VDD	Power Supply: +3.3V
3	BL_E	Backlight control signal, H:On \ L:Off
4	D/C	Data/Command select
5	WR	Write strobe signal
6	RD	Read strobe signal
7	DB0	Data bus
8	DB1	Data bus
9	DB2	Data bus
10	DB3	Data bus
11	DB4	Data bus
12	DB5	Data bus
13	DB6	Data bus
14	DB7	Data bus
15	CS	Chip select
16	RES	Hardware reset
17	NC	No connect
18	NC	No connect
19	NC	No connect
20	NC	No connect

Products specifications

Brand	Winstar
Size	3.5"
Resolution	320x240
Active Area (mm)	70.08x52.56
Color	Full Color
Display Interface	MCU (Parallel)
Display IC	SSD1963
View Angle	IPS
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	ZIF Connector
Pin Nr.	20
Pin Pitch	1mm
Preferred - Not Preferred	Preferred
