WF35-320240YD#001-FC

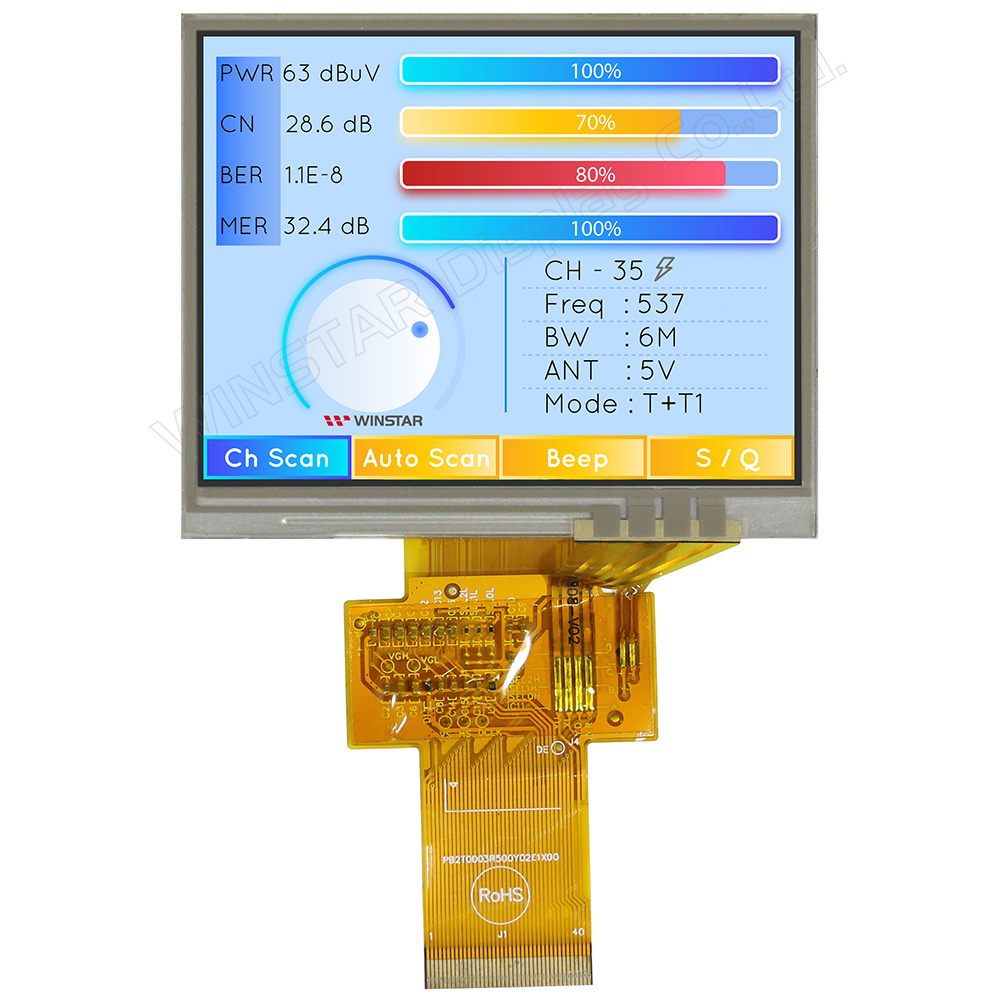

Picture of WF35-320240YD#001-FC Picture of WF35-320240YD#001-FC
TFT 3.5" 320x240 LCD Panel, Interface RGB, Unified cable (40pin), 300cd/m², Resistive touch panel

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



3.5 inch Winstar Y Series TFT LCD Screen Display which is the derivative model from WF35L.  The key feature is that this family size has the same 40-pin pre-defined FPC on TFT LCD modules as the other sizes of Y Series.  The Y Series modules are derivative products from the Winstar existing standard TFTs which uniform the pin assignment into a 40-pin FPC; and the FPC is placed in the central position on the bottom of TFT panel for each module.   This WF35Y model supports DE and SYNC mode. NO touch / Resistive touch / Capacitive touch panel version available.

Key Advantages of Winstar TFT Y Series:
  • All Y Series TFT modules are including a same integrated 40-pin FPC pre-designed on modules, and the FPC is placed in the central position on the bottom of TFT panel for each module. The customers only have to supply the Logic Power, Backlight Power and RGB signal, it becomes easily for customers to design products.
  • All Y Series built in DC-DC multi-output power (VGH, VGL, AVDD, VCOM).
  • Multi-Function Capacitive Touch Panel and Resistive Touch Panel are available for all Y Series.

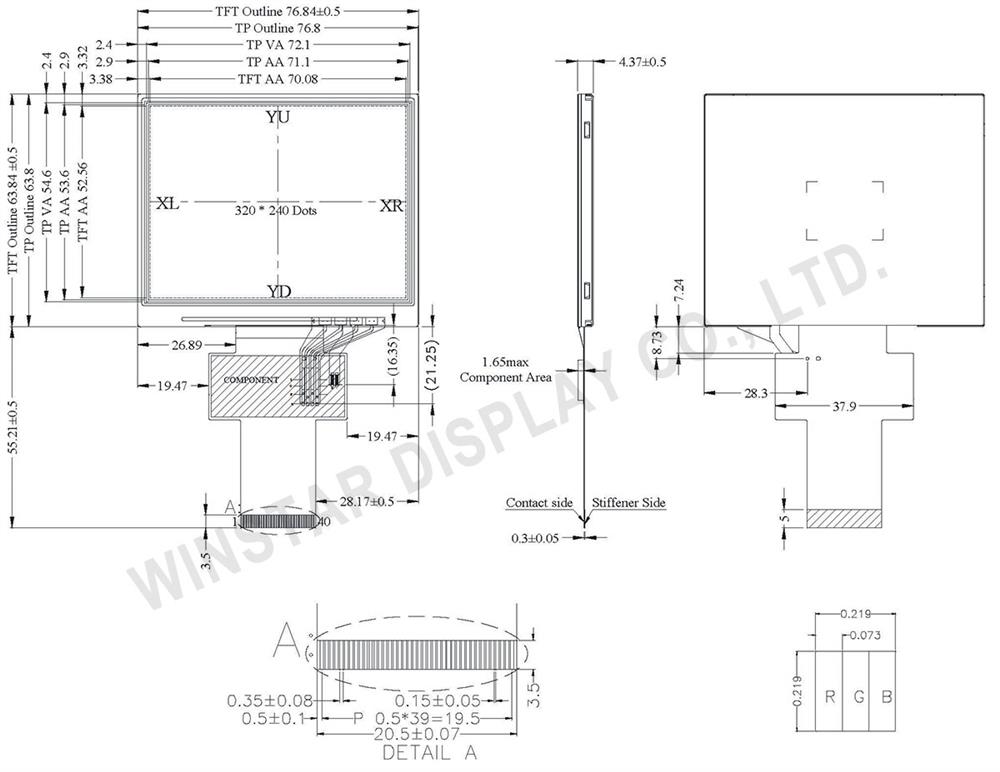

DRAWING

LCD Screen Display - 3.5 inch TFT LCD Display Module

INTERFACE

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 DGND System ground pin of the IC.
Connect to system ground.
4 VCC Power Supply
5 R0 Red Data bit(LSB)
6~11 R1~R6 Red Data bit
12 R7 Red Data bit (MSB)
13 G0 Green Data bit(LSB)
14~19 G1~G6 Green Data bit
20 G7 Green Data bit (MSB)
21 B0 Blue Data bit(LSB)
22~27 B1~B6 Blue Data bit
28 B7 Blue Data bit (MSB)
29 AVSS Grounding for analog circuit
Connect to system ground
30 CLK Dot-clock signal and oscillator source
31 NC No connect
32 HSYNC Horizontal sync signal
33 VSYNC Vertical sync signal
34 DE Data Enable signal
35 NC No connect
36 RESET Hardware reset
37 XR Right electrode
38 YD Bottom electrode
39 XL Left electrode
40 YU Top electrode
SKU: WF35-320240YD#001-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€31.10
€24.90
€21.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€31.10 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



3.5 inch Winstar Y Series TFT LCD Screen Display which is the derivative model from WF35L.  The key feature is that this family size has the same 40-pin pre-defined FPC on TFT LCD modules as the other sizes of Y Series.  The Y Series modules are derivative products from the Winstar existing standard TFTs which uniform the pin assignment into a 40-pin FPC; and the FPC is placed in the central position on the bottom of TFT panel for each module.   This WF35Y model supports DE and SYNC mode. NO touch / Resistive touch / Capacitive touch panel version available.

Key Advantages of Winstar TFT Y Series:
  • All Y Series TFT modules are including a same integrated 40-pin FPC pre-designed on modules, and the FPC is placed in the central position on the bottom of TFT panel for each module. The customers only have to supply the Logic Power, Backlight Power and RGB signal, it becomes easily for customers to design products.
  • All Y Series built in DC-DC multi-output power (VGH, VGL, AVDD, VCOM).
  • Multi-Function Capacitive Touch Panel and Resistive Touch Panel are available for all Y Series.



DRAWING

LCD Screen Display - 3.5 inch TFT LCD Display Module

INTERFACE

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 DGND System ground pin of the IC.
Connect to system ground.
4 VCC Power Supply
5 R0 Red Data bit(LSB)
6~11 R1~R6 Red Data bit
12 R7 Red Data bit (MSB)
13 G0 Green Data bit(LSB)
14~19 G1~G6 Green Data bit
20 G7 Green Data bit (MSB)
21 B0 Blue Data bit(LSB)
22~27 B1~B6 Blue Data bit
28 B7 Blue Data bit (MSB)
29 AVSS Grounding for analog circuit
Connect to system ground
30 CLK Dot-clock signal and oscillator source
31 NC No connect
32 HSYNC Horizontal sync signal
33 VSYNC Vertical sync signal
34 DE Data Enable signal
35 NC No connect
36 RESET Hardware reset
37 XR Right electrode
38 YD Bottom electrode
39 XL Left electrode
40 YU Top electrode
Date Notice Link/Description
2024/08/26 EOL End production of Innolux TN Panel for WF35-320240L/M/P/Q/Y Families



For more details, please contact us @ [email protected]

Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
