WF39-480128BD#003-FC

Picture of WF39-480128BD#003-FC Picture of WF39-480128BD#003-FC
TFT 3.9'' 480x128, Bar Type, Interface RGB, 400cd/m², View direction 6H, Capacitive touch panel I2C interface IC CYTMA568 (GG)

DESCRIPTION

Winstar 3.9” Bar type series TFT display with Capacitive Touch Panel. This model is featured with resolution 480x128 pixels; built in with Driver IC HX8278, it supports RGB interface; 3.3V (typical) power supply; supports SYNC mode or DE mode, default SYNC mode. Its luminance is 400 Nits; Contrast ratio of 500:1, gray scale inversion direction 12 o’clock. Operating temperature from -20℃ to +70℃; storage temperature range from -30℃ to +80℃.

This panorama widescreen 3.9 inch TFT-LCD display offers high quality and colorful image; it is especially suitable for server system, audio system and advertising display, auto/aviation/marine equipment, security equipment, Industrial equipment, outdoor intercom systems and control panels, medical equipment, drone controls.



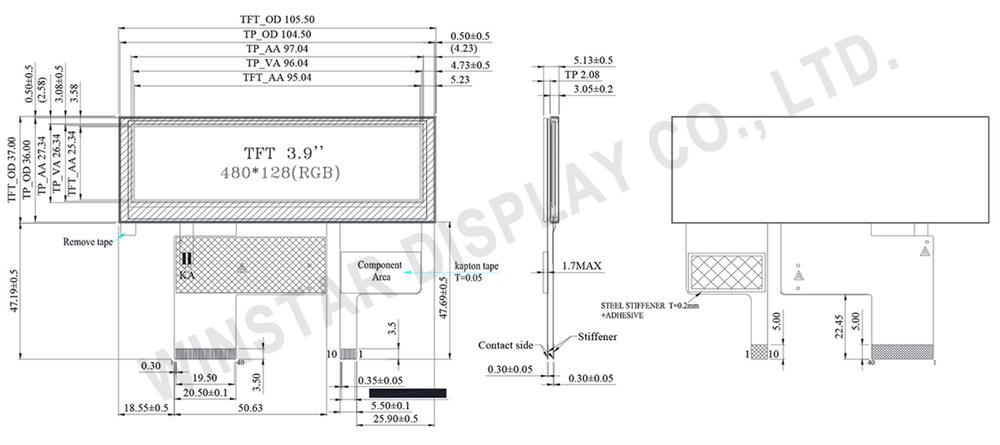

DRAWING

WF39BTLASDNGA - 3.9" Bar Type Color TFT (PCAP) - Winstar Display



SPECIFICATIONS



Interface

LCM PIN Definition

No.SymbolDescription
1 VLED- Backlight LED Cathode
2 VLED+ Backlight LED Anode.
3 GND System Ground
4 VCC Power supply for logic operation
5~12 R0~R7 Data bus
13~20 G0~G7 Data bus
21~28 B0~B7 Data bus
29 GND System Ground
30 DCLK Pixel clock signal
31 DISP Display on/off control
32 HSYNC Horizontal Sync signal
33 VSYNC Vrtical Sync signal
34 NC No connection (Option DE)
35 NC No connection
36 GND System Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection



PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.0V
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 3.9 inch
Dot Matrix 480 × 128 × RGB (TFT) dots
Module dimension 105.5(W) × 37.0(H) × 5.13(D) mm
Active area 95.04 × 25.34 mm
Dot pitch 0.066(W) × 0.198(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Bar Type
Backlight Type LED, Normally White
TFT Driver IC HX8278-A Or Equal
TFT Interface RGB-24BIT (SYNC mode)
PCAP IC CYTMA568 or equivalent
PCAP FW Version
Touch Screen Projected capacitive touch screen (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC － 3.0 3.3 3.6 V
Supply Current For LCM ICC － － 15 25 mA
Supply Voltage For Touch Logic VDDT － 2.8 － 3.3 V


SKU: WF39-480128BD#003-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€58.40
€48.60
€41.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€58.40 excl tax

DESCRIPTION

Winstar 3.9” Bar type series TFT display with Capacitive Touch Panel. This model is featured with resolution 480x128 pixels; built in with Driver IC HX8278, it supports RGB interface; 3.3V (typical) power supply; supports SYNC mode or DE mode, default SYNC mode. Its luminance is 400 Nits; Contrast ratio of 500:1, gray scale inversion direction 12 o’clock. Operating temperature from -20℃ to +70℃; storage temperature range from -30℃ to +80℃.

This panorama widescreen 3.9 inch TFT-LCD display offers high quality and colorful image; it is especially suitable for server system, audio system and advertising display, auto/aviation/marine equipment, security equipment, Industrial equipment, outdoor intercom systems and control panels, medical equipment, drone controls.



DRAWING

WF39BTLASDNGA - 3.9" Bar Type Color TFT (PCAP) - Winstar Display



SPECIFICATIONS



Interface

LCM PIN Definition

No.SymbolDescription
1 VLED- Backlight LED Cathode
2 VLED+ Backlight LED Anode.
3 GND System Ground
4 VCC Power supply for logic operation
5~12 R0~R7 Data bus
13~20 G0~G7 Data bus
21~28 B0~B7 Data bus
29 GND System Ground
30 DCLK Pixel clock signal
31 DISP Display on/off control
32 HSYNC Horizontal Sync signal
33 VSYNC Vrtical Sync signal
34 NC No connection (Option DE)
35 NC No connection
36 GND System Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection



PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.0V
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 3.9 inch
Dot Matrix 480 × 128 × RGB (TFT) dots
Module dimension 105.5(W) × 37.0(H) × 5.13(D) mm
Active area 95.04 × 25.34 mm
Dot pitch 0.066(W) × 0.198(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Bar Type
Backlight Type LED, Normally White
TFT Driver IC HX8278-A Or Equal
TFT Interface RGB-24BIT (SYNC mode)
PCAP IC CYTMA568 or equivalent
PCAP FW Version
Touch Screen Projected capacitive touch screen (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC － 3.0 3.3 3.6 V
Supply Current For LCM ICC － － 15 25 mA
Supply Voltage For Touch Logic VDDT － 2.8 － 3.3 V


Products specifications
Brand Winstar
Size 3.9"
Resolution 480x128
Active Area (mm) 95.04x25.34
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller CYTMA568
Preferred - Not Preferred Preferred
