WF39-480128CD#003-FC

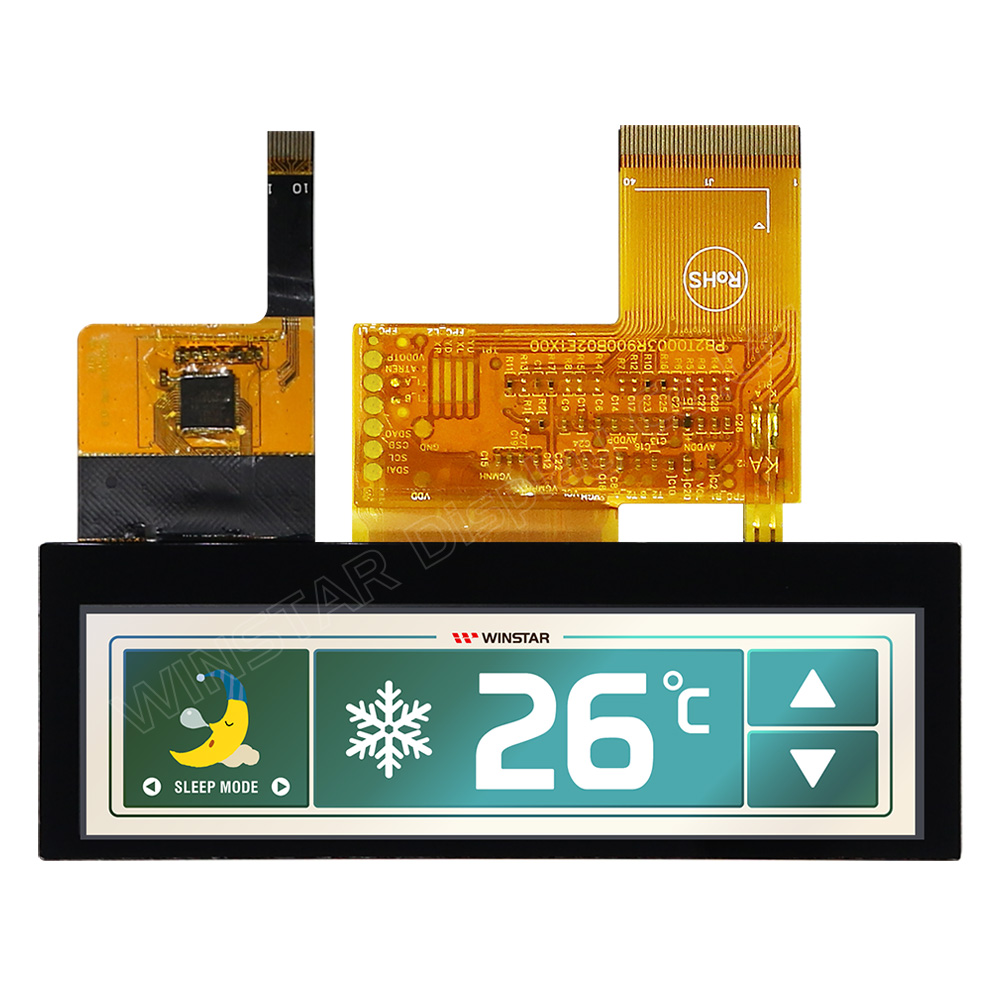

TFT 3.9'' 480x128, Bar Type, Interface RGB, 400cd/m², View direction 12H, Capacitive touch panel I2C interface (GG)

DESCRIPTION

3.9 inch Top View Bar TFT module with Projected Capacitive Touch Panel (PCAP) which featured with 480x128 dots resolution. It is built in with Driver IC HX8278-A, it communicates via 24-bit RGB interface, 3.3V (typical) power supply voltage, supports SYNC mode or DE mode, default SYNC mode. Its brightness is 400 nits; contrast ratio of 500, view direction 12 o'clock (top view direction), gray scale inversion direction 6 o'clock, and glare surface glass. Operating temperatures from -20℃ to +70℃, storage temperatures range from -30℃ to +80℃. We also offer Resistive Touch Panels (RTP) and High Brightness version optional for this model.

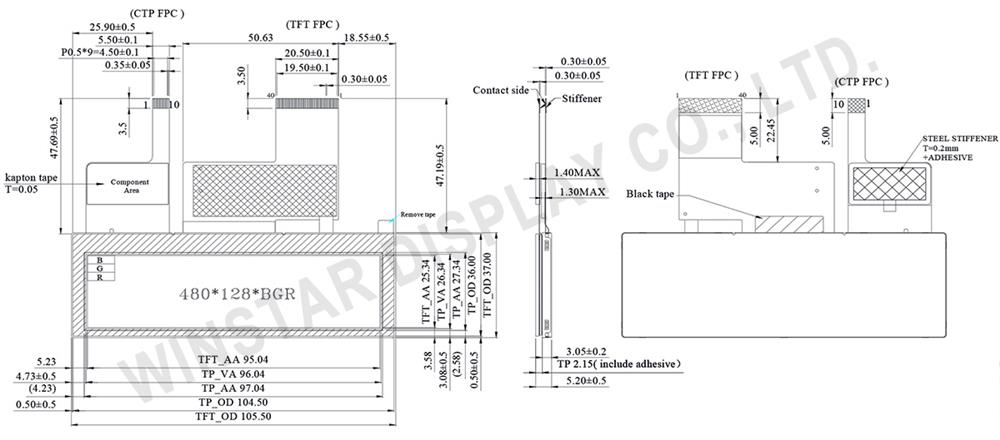

DRAWING

3.9" 480x128 Top View Direction Stretched PCAP TFT LCD Display - WF39CTIASDNG0



SPECIFICATIONS



Interface

LCM PIN Definition

No.SymbolDescription
1 VLED- Backlight LED Cathode
2 VLED+ Backlight LED Anode.
3 GND System Ground
4 VCC Power supply for logic operation
5~12 R0~R7 Data bus
13~20 G0~G7 Data bus
21~28 B0~B7 Data bus
29 GND System Ground
30 DCLK Pixel clock signal
31 DISP Display on/off control
32 HSYNC Horizontal Sync signal
33 VSYNC Vrtical Sync signal
34 NC No connection (Option DE)
35 NC No connection
36 GND System Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection



PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.0V
3 SCL I2C clock input.
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 3.9 inch
Dot Matrix 480 ×128 × RGB (TFT) dots
Module dimension 105.5(W) × 37.0(H) × 5.2(D) mm
Active area 95.04 × 25.34 mm
Dot pitch 0.066(W) × 0.198(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio Bar Type
TFT Driver IC HX8278-A or equivalent
TFT Interface RGB-24BIT
Backlight Type LED, Normally White
CTP IC CYTM568 or equivalent
CTP FW Version 0x0001
Touch Screen Projected capacitive touch panel (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

Operating conditions

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC - 3.0 3.3 3.6 V
Supply Current For LCM ICC - - 15 25 mA
Supply Voltage For Touch Logic VDDT - 2.8   3.5 mA


SKU: WF39-480128CD#003-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€46.90
€39.10
€35.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€46.90 excl tax

DESCRIPTION

3.9 inch Top View Bar TFT module with Projected Capacitive Touch Panel (PCAP) which featured with 480x128 dots resolution. It is built in with Driver IC HX8278-A, it communicates via 24-bit RGB interface, 3.3V (typical) power supply voltage, supports SYNC mode or DE mode, default SYNC mode. Its brightness is 400 nits; contrast ratio of 500, view direction 12 o'clock (top view direction), gray scale inversion direction 6 o'clock, and glare surface glass. Operating temperatures from -20℃ to +70℃, storage temperatures range from -30℃ to +80℃. We also offer Resistive Touch Panels (RTP) and High Brightness version optional for this model.



DRAWING

3.9" 480x128 Top View Direction Stretched PCAP TFT LCD Display - WF39CTIASDNG0



SPECIFICATIONS



Interface

LCM PIN Definition

No.SymbolDescription
1 VLED- Backlight LED Cathode
2 VLED+ Backlight LED Anode.
3 GND System Ground
4 VCC Power supply for logic operation
5~12 R0~R7 Data bus
13~20 G0~G7 Data bus
21~28 B0~B7 Data bus
29 GND System Ground
30 DCLK Pixel clock signal
31 DISP Display on/off control
32 HSYNC Horizontal Sync signal
33 VSYNC Vrtical Sync signal
34 NC No connection (Option DE)
35 NC No connection
36 GND System Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection



PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.0V
3 SCL I2C clock input.
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 3.9 inch
Dot Matrix 480 ×128 × RGB (TFT) dots
Module dimension 105.5(W) × 37.0(H) × 5.2(D) mm
Active area 95.04 × 25.34 mm
Dot pitch 0.066(W) × 0.198(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio Bar Type
TFT Driver IC HX8278-A or equivalent
TFT Interface RGB-24BIT
Backlight Type LED, Normally White
CTP IC CYTM568 or equivalent
CTP FW Version 0x0001
Touch Screen Projected capacitive touch panel (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

Operating conditions

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC - 3.0 3.3 3.6 V
Supply Current For LCM ICC - - 15 25 mA
Supply Voltage For Touch Logic VDDT - 2.8   3.5 mA


Products specifications
Brand Winstar
Size 3.9"
Resolution 480x128
Active Area (mm) 95.04x25.34
Color Full Color
Display Interface RGB
Display IC Controller No
View Angle TN
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller CYTMA568
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.9"
Resolution 480x128
Active Area (mm) 95.04x25.34
Color Full Color
Display Interface RGB
Display IC Controller No
View Angle TN
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller CYTMA568
Preferred - Not Preferred Preferred
