WF39-480128ED#0SPW0-FC

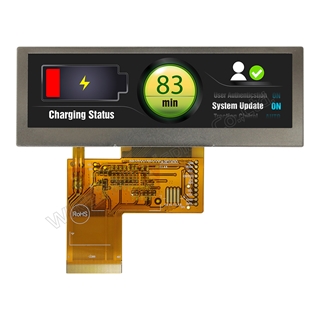

Picture of WF39-480128ED#0SPW0-FC Picture of WF39-480128ED#0SPW0-FC
TFT 3.9'' 480x128, Bar Type, Interface RGB, High Brightness 1000cd/m², Wide view angle (IPS), Super extended Temperature, No touch

DESCRIPTION

High Brightness 3.9-inch Bar Type IPS TFT-LCD display, resolution of 480x128 pixels. This module is built-in with SC7283 driver IC, and it supports 24-bit RGB interface.

IPS panel which is having the advantage of wider view angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800:1 (typical value), high brightness 1000 nits (typical value), the supply voltage for LCM 3V to 3.6V. It is a wide temperature TFT module; it can be operating at temperatures from -30℃ to +85℃; its storage temperatures range from -30℃ to +85℃.

This panorama widescreen 3.9 inch WF39E Bar TFT-LCD display offers high quality and colorful image. It is especially suitable for server systems, audio systems, advertising display, auto/aviation/marine equipment, security equipment, industrial equipment, outdoor intercom systems and control panels, medical equipment, and drone controls.

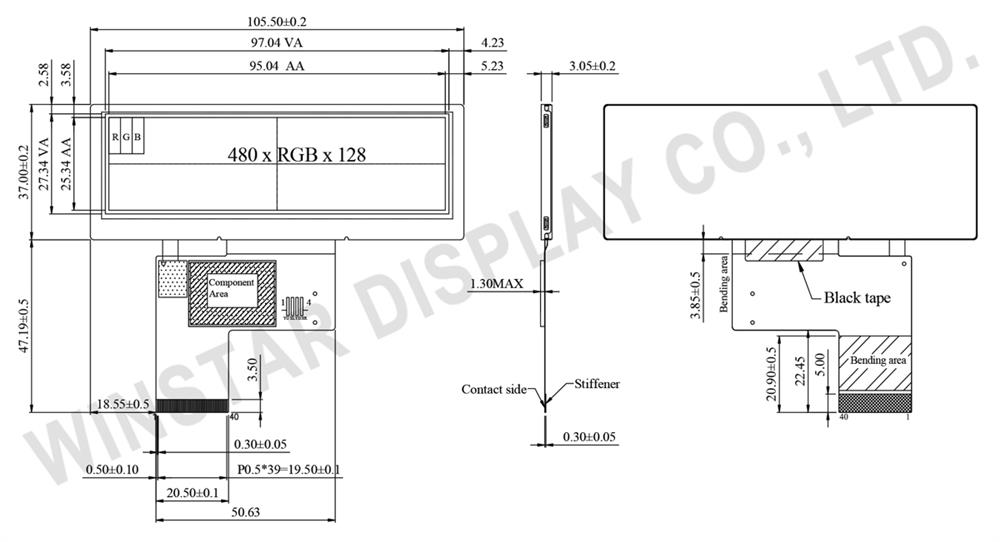

DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data
13 G0 Green data
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data
21 B0 Blue data
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data
29 GND Power ground
30 DCLK Pixel clock input pin
31 DISP DISP sets the display mode.
DISPFunction Description
L Standby mode
H Normal display mode
32 HSYNC Horizontal sync signal, default is negative polarity.
33 VSYNC Vertical sync signal, default is negative polarity.
34 NC No connection
35 NC No connection
36 GND Power ground
37 NC(XR) No connection
38 NC(YD) No connection
39 NC(XL) No connection
40 NC(YU) No connection


General Specifications

ItemDimensionUnit
Size 3.9 inch
Dot Matrix 480 x RGB x 128(TFT) dots
Module dimension 105.5(W) x 37.0(H) x 3.05(D) mm
Active area 95.04 x 25.34 mm
Dot pitch 0.198 x 0.198 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
Aspect Ratio Bar Type
TFT Driver IC SC7283 or equivalent
Interface 24-bit RGB
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Aniti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +85 ℃
Storage Temperature TST -30 － +85 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 - 3.6 V
Supply Current For LCM ICC - 20 30 mA
SKU: WF39-480128ED#0SPW0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€34.80
€27.80
€23.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€34.80 excl tax

DESCRIPTION

High Brightness 3.9-inch Bar Type IPS TFT-LCD display, resolution of 480x128 pixels. This module is built-in with SC7283 driver IC, and it supports 24-bit RGB interface.

IPS panel which is having the advantage of wider view angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800:1 (typical value), high brightness 1000 nits (typical value), the supply voltage for LCM 3V to 3.6V. It is a wide temperature TFT module; it can be operating at temperatures from -30℃ to +85℃; its storage temperatures range from -30℃ to +85℃.

This panorama widescreen 3.9 inch WF39E Bar TFT-LCD display offers high quality and colorful image. It is especially suitable for server systems, audio systems, advertising display, auto/aviation/marine equipment, security equipment, industrial equipment, outdoor intercom systems and control panels, medical equipment, and drone controls.

DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data
13 G0 Green data
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data
21 B0 Blue data
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data
29 GND Power ground
30 DCLK Pixel clock input pin
31 DISP DISP sets the display mode.
DISPFunction Description
L Standby mode
H Normal display mode
32 HSYNC Horizontal sync signal, default is negative polarity.
33 VSYNC Vertical sync signal, default is negative polarity.
34 NC No connection
35 NC No connection
36 GND Power ground
37 NC(XR) No connection
38 NC(YD) No connection
39 NC(XL) No connection
40 NC(YU) No connection


General Specifications

ItemDimensionUnit
Size 3.9 inch
Dot Matrix 480 x RGB x 128(TFT) dots
Module dimension 105.5(W) x 37.0(H) x 3.05(D) mm
Active area 95.04 x 25.34 mm
Dot pitch 0.198 x 0.198 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
Aspect Ratio Bar Type
TFT Driver IC SC7283 or equivalent
Interface 24-bit RGB
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Aniti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +85 ℃
Storage Temperature TST -30 － +85 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 - 3.6 V
Supply Current For LCM ICC - 20 30 mA
Products specifications
Brand Winstar
Size 3.9"
Resolution 480x128
Active Area (mm) 95.04x25.34
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.9"
Resolution 480x128
Active Area (mm) 95.04x25.34
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
