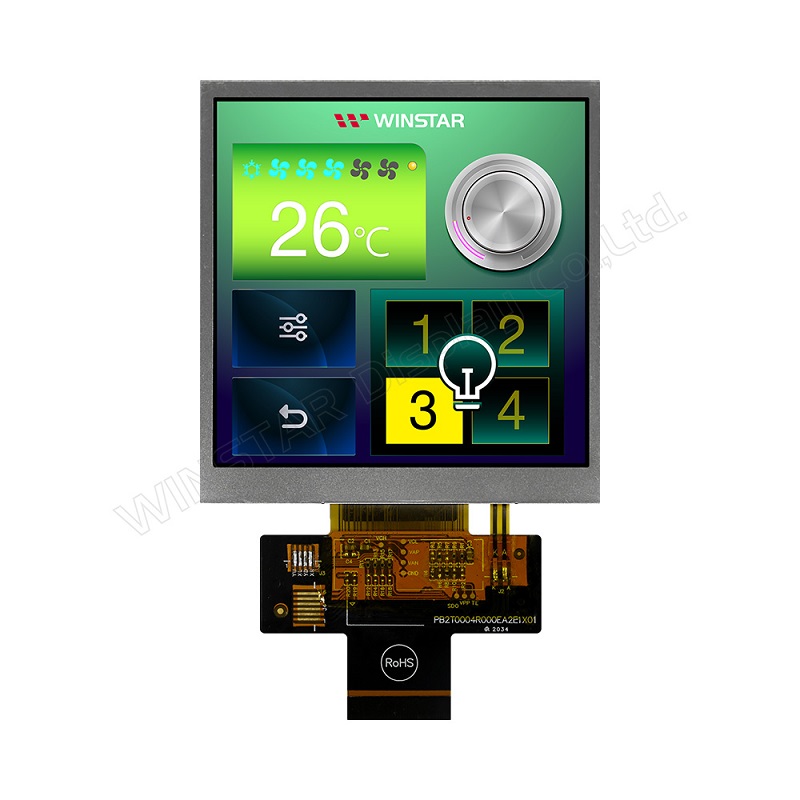

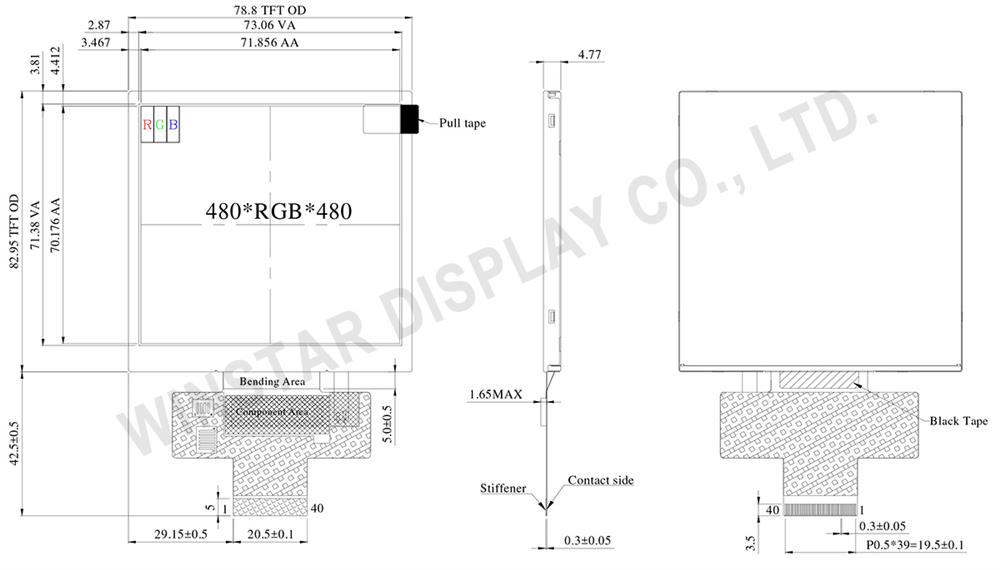

High Brightness 4 inch Square IPS TFT-LCD module; made of resolution 480 x 480 pixels. This module supports 24-bit RGB interface, it featured with IPS panel which is having the advantage of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800:1 (typical value), high brightness 1000 nits (typical value), glare surface panel, aspect Ratio 1:1.This model is also available in projected capacitive touch panel (PCAP) and resistive touch panel option .
It is integrated driver IC ST7701S on module, the interface supply voltage range from 2.5V to 3.6V, typical value 2.8V. Operating temperature from -30℃ to +80℃; storage temperature from -30℃ to +80℃.
For quantities above 25 pcs pls send your enquiry to firstname.lastname@example.org or call +39 0332 1888005
