WF43-480272GD#000-FC

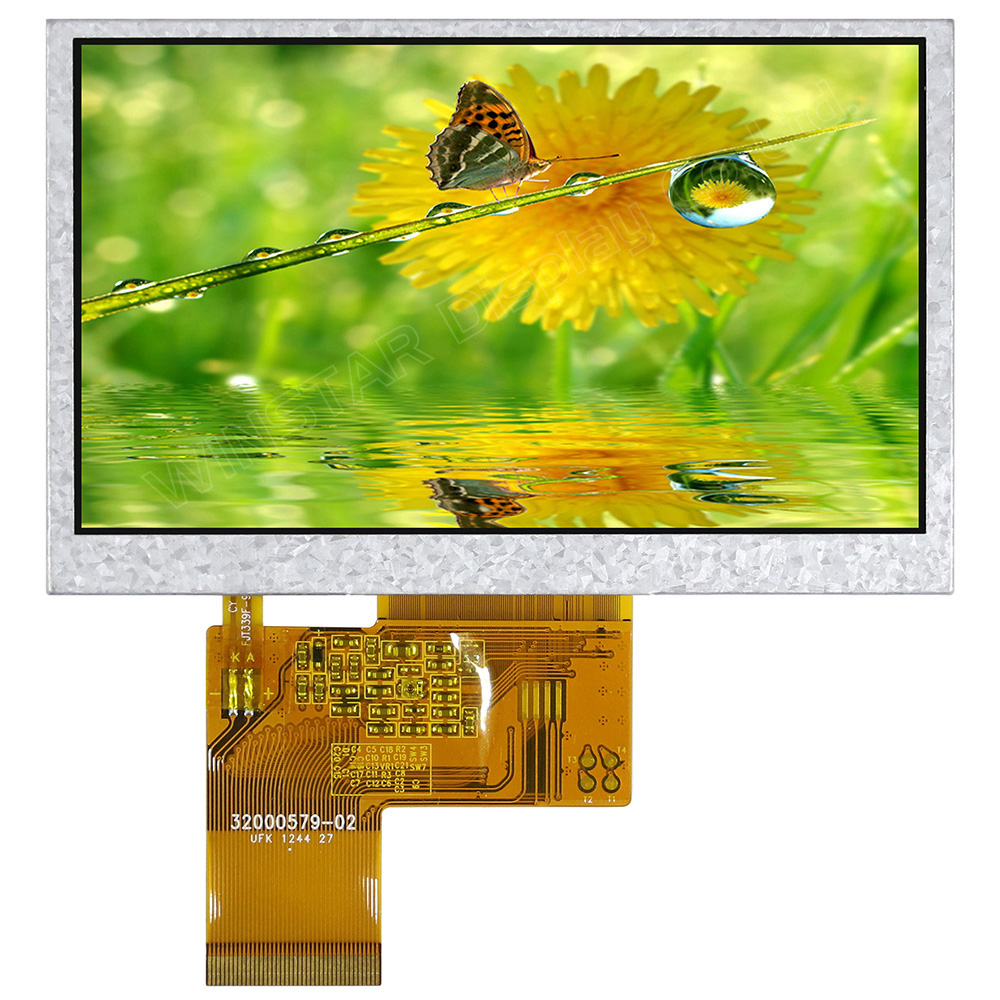

TFT 4.3" 480x272 LCD Panel, Interface RGB, 500cd/m², No touch

DESCRIPTION

This display TFT LCD module is a 4.3 inch diagonal, 480xRGBx272, full color TFT Module, outline dimension 105.5 x 67.2 mm, VA size 97.1x55.9 mm and AA size 95.04x53.856 mm.

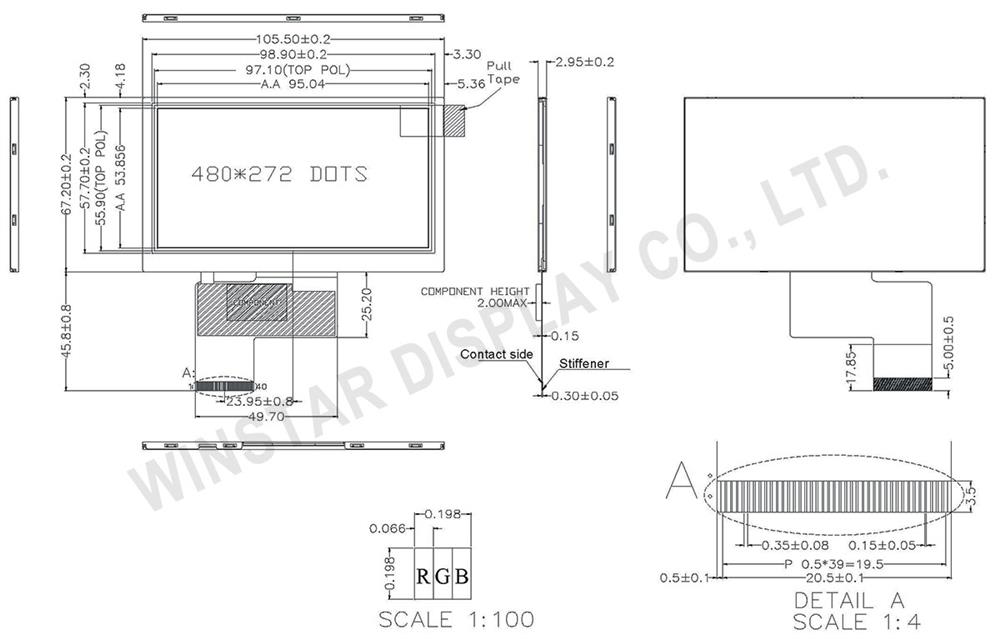

DRAWING

SPECIFICATIONS

Interface

Pin	Symbol	Function
1	VLED-	Power for LED backlight cathode
2	VLED+	Power for LED backlight anode
3	GND	Power ground
4	VCC	Power voltage
5	R0	Red data (LSB)
6~11	R1~R6	Red data
12	R7	Red data (MSB)
13	G0	Green data (LSB)
14~19	G1~G6	Green data
20	G7	Green data (MSB)
21	B0	Blue data (LSB)
22~27	B1~B6	Blue data
28	B7	Blue data (MSB)
29	GND	Power ground
30	CLK	Pixel clock
31	DISP	Display on/off
32~33	NC	No connection
34	DE	Data Enable
35	NC	No connection
36	GND	Power ground
37~40	NC	No connection

General Specifications

Item	Dimension	Unit
Size	4.3	inch
Dot Matrix	480 × RGB × 272 (TFT)	dots
Module dimension	105.5(W) × 67.2(H) × 2.95(D)	mm
Active area	95.04 × 53.86	mm
Dot pitch	0.066 × 0.198	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o'clock
Gray Scale Inversion Direction	6 o'clock
Aspect Ratio	16:9
Backlight Type	LED, Normally White
Touch Screen	Without touch screen
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VCC	－	3.0	3.3	3.5	V
Digital operation current	Icc	－	-	17	25	mA

SKU: WF43-480272GD#000-FC

Brand: Winstar

Available: No

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€24.10

€19.30

€16.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€24.10 excl tax
