WF43-480272PD#D05B-FC

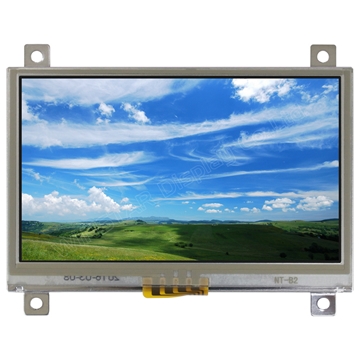

TFT 4.3'' 480x272, LCD + IC Controller, Interface MCU (Parallel) IC RA8875, 350cd/m², Frame, Resistive touch panel

DESCRIPTION

New panel version // Previous versions P/Ns WF43-480272PD#A05-FC & WF43-480272PD#B05-FC in 'Related Product' section on the bottom page

4.3 inch P Series TFT panel which is including a Resistive Touch Screen on module. This 4.3 TFT panel is built in with RA8875 controller board plus a 36 pin-out connector on board. This model is featured with 8 bit or 16 bit options and already defined pin no. 33 ~ 36 as backlight supply on an integrated 36 pin-out connector.

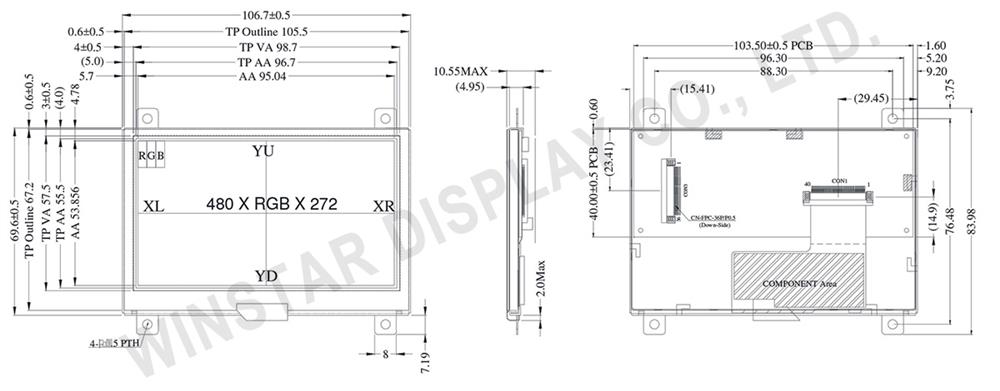

DRAWING

4.3" Resistive Touch TFT Panel with LCD Display Controller Board - WF43PTIBEDBTD

INTERFACE



PinSymbolFunction
1 GND System ground
2 VDD Power Supply : +3.3V
3 NC No connent
4 RS Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~22 DB0~DB15 Data bus
23 WAIT Wait Signal Output(H:active)
24 RTP_INT RTP Interrupt
25 CS Chip select
26 RST Hardware reset
27 DIP ON Display control H: On \ L:Off
28~32 NC No connect
33~34 VLED- Power for LED backlight cathode
35~36 VLED+ Power for LED backlight anode

General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 × RGB × 272(TFT) dots
Module dimension 106.7 × 83.98 × 10.55 mm
Active area 95.04 × 53.856 mm
Dot pitch 0.066 × 0.198 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
Controller IC RA8875
Interface Digital 8080 family MPU
Touch Screen Resistive touch screen (RTP)
Surface Anti-Glare

Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80

Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD 3.0 3.3 3.6 V
Supply Current For LCM IDD 65 100 mA


SKU: WF43-480272PD#D05B-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€56.70
€50.10
€42.50

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€56.70 excl tax

DESCRIPTION

New panel version // Previous versions P/Ns WF43-480272PD#A05-FC & WF43-480272PD#B05-FC in 'Related Product' section on the bottom page

4.3 inch P Series TFT panel which is including a Resistive Touch Screen on module. This 4.3 TFT panel is built in with RA8875 controller board plus a 36 pin-out connector on board. This model is featured with 8 bit or 16 bit options and already defined pin no. 33 ~ 36 as backlight supply on an integrated 36 pin-out connector.


DRAWING

4.3" Resistive Touch TFT Panel with LCD Display Controller Board - WF43PTIBEDBTD

INTERFACE



PinSymbolFunction
1 GND System ground
2 VDD Power Supply : +3.3V
3 NC No connent
4 RS Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~22 DB0~DB15 Data bus
23 WAIT Wait Signal Output(H:active)
24 RTP_INT RTP Interrupt
25 CS Chip select
26 RST Hardware reset
27 DIP ON Display control H: On \ L:Off
28~32 NC No connect
33~34 VLED- Power for LED backlight cathode
35~36 VLED+ Power for LED backlight anode

General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 × RGB × 272(TFT) dots
Module dimension 106.7 × 83.98 × 10.55 mm
Active area 95.04 × 53.856 mm
Dot pitch 0.066 × 0.198 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
Controller IC RA8875
Interface Digital 8080 family MPU
Touch Screen Resistive touch screen (RTP)
Surface Anti-Glare

Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80

Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD 3.0 3.3 3.6 V
Supply Current For LCM IDD 65 100 mA


Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Display Interface MCU (Parallel)
Display IC Controller RA8875
View Angle TN
Brightness Range Standard 100~600cd/m²
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 36
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
