WF43-480272QD#DS5-FC

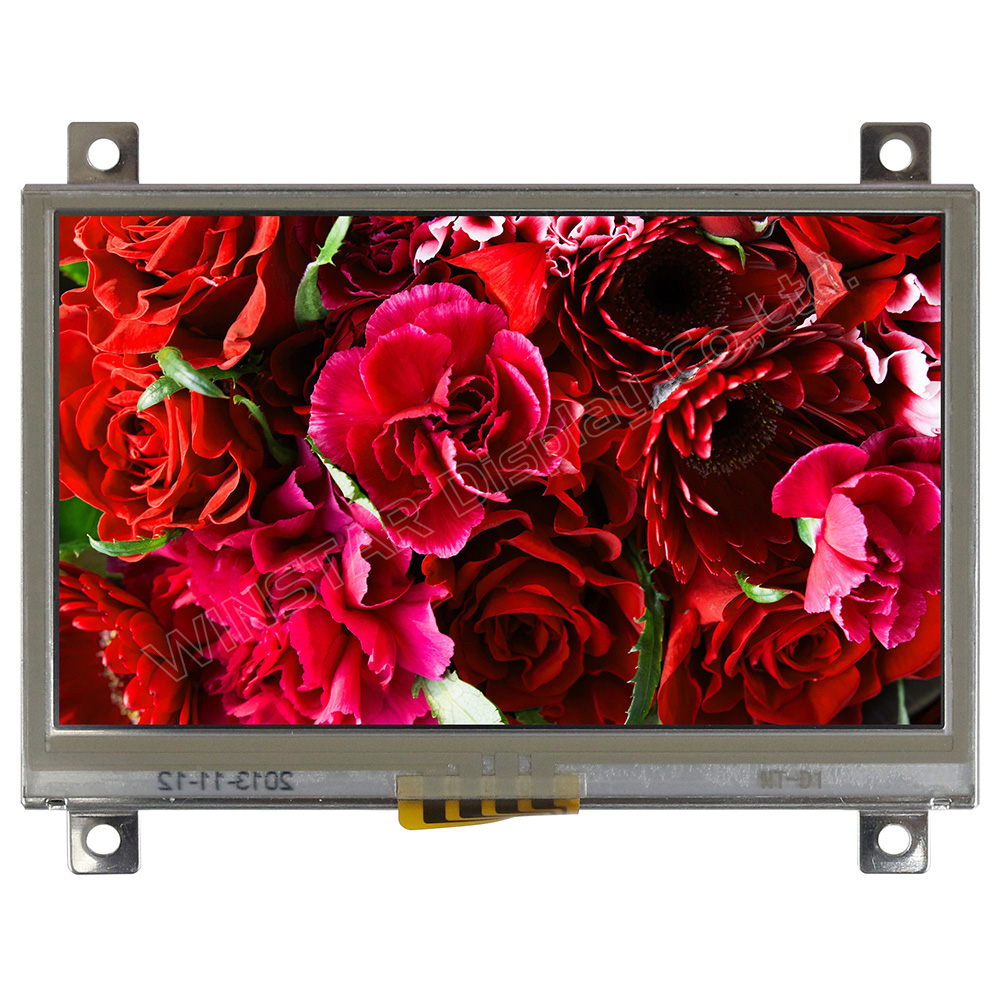

TFT 4.3'' 480x272, LCD + IC Controller, Interface MCU IC SSD1963 (8/16bit), High brightness 700cd/m², Frame, Resistive touch panel

DESCRIPTION



The Winstar TFT Q Series Modules provide the following innovative advantages to offer outstanding performance for colorful displays:

  • Q Series integrated a 36 pin-out connector on SSD1963 controller board and all connectors are the same direction.
  • Q Series modules are available in 8 bit and 16 bit parallel interface options.
  • The pin no. 33 ~ 36 already pre-defined as backlight supply.
  • Built in backlight driver IC, Q series TFT displays can be drive by 5.0V (3.5" and 4.3" also support 3.3V). The customers do not have to change the backlight driver circuits while change the TFT module sizes.
  • The 5.7”, 7.0”, 8.0” and 10.2” Q Series are allowed to design “Sleep Mode” to close BIAS(VGH, VGL, AVDD) low power consumption mode.
  • Resistive Touch Screen options are available for all Q Series display, and 4-Line signal (X1, Y1, X2, Y2) can be input from 36pin connector.
  • Capacitive Touch Screen options are available for all Q Series display, and the I2C read/write protocol can be input from 36pin connector.

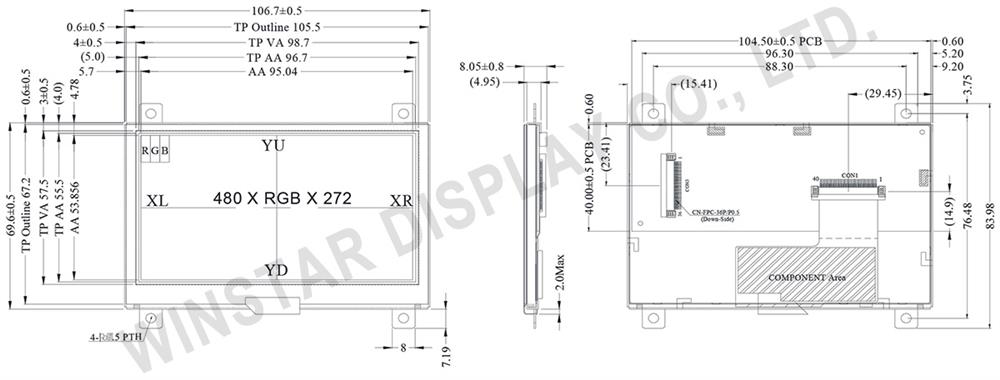

DRAWING

Tesistive Touch Panel TFT with LCD Controller Board 4.3 - WF43QTIBEDBTD

INTERFACE



PinSymbolFunction
1 GND System round pin of the IC. Connect to system ground.
2 VDD Power Supply : +3.3V
3 BL_E Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~14 DB0~DB7 Data bus
15~22 DB8~DB15 Data bus (When select 8bits Mode, this pin is NC)
23~24 NC No connection
25 CS Chip select
26 RESET Hardware reset
27 DIP ON Display control H: On \ L:Off
28 NC No connection
29 XL Left electrode
30 YU Top electrode
31 XR Right electrode
32 YD Bottom electrode
33~34 VLED- VLED- for B/L LED inverter (GND)
35~36 VLED+ VLED+ for B/L LED inverter (+3.3V)
SKU: WF43-480272QD#DS5-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€45.00
€37.50
€33.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€45.00 excl tax

DESCRIPTION



The Winstar TFT Q Series Modules provide the following innovative advantages to offer outstanding performance for colorful displays:

  • Q Series integrated a 36 pin-out connector on SSD1963 controller board and all connectors are the same direction.
  • Q Series modules are available in 8 bit and 16 bit parallel interface options.
  • The pin no. 33 ~ 36 already pre-defined as backlight supply.
  • Built in backlight driver IC, Q series TFT displays can be drive by 5.0V (3.5" and 4.3" also support 3.3V). The customers do not have to change the backlight driver circuits while change the TFT module sizes.
  • The 5.7”, 7.0”, 8.0” and 10.2” Q Series are allowed to design “Sleep Mode” to close BIAS(VGH, VGL, AVDD) low power consumption mode.
  • Resistive Touch Screen options are available for all Q Series display, and 4-Line signal (X1, Y1, X2, Y2) can be input from 36pin connector.
  • Capacitive Touch Screen options are available for all Q Series display, and the I2C read/write protocol can be input from 36pin connector.



DRAWING

Tesistive Touch Panel TFT with LCD Controller Board 4.3 - WF43QTIBEDBTD

INTERFACE



PinSymbolFunction
1 GND System round pin of the IC. Connect to system ground.
2 VDD Power Supply : +3.3V
3 BL_E Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~14 DB0~DB7 Data bus
15~22 DB8~DB15 Data bus (When select 8bits Mode, this pin is NC)
23~24 NC No connection
25 CS Chip select
26 RESET Hardware reset
27 DIP ON Display control H: On \ L:Off
28 NC No connection
29 XL Left electrode
30 YU Top electrode
31 XR Right electrode
32 YD Bottom electrode
33~34 VLED- VLED- for B/L LED inverter (GND)
35~36 VLED+ VLED+ for B/L LED inverter (+3.3V)
Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Interface MCU
Built-in Controller SSD1963
View Angle 12H
Brightness Range High 601~1200cd/m²
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 36
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Interface MCU
Built-in Controller SSD1963
View Angle 12H
Brightness Range High 601~1200cd/m²
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 36
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
