WF43-480272VD#004-FC

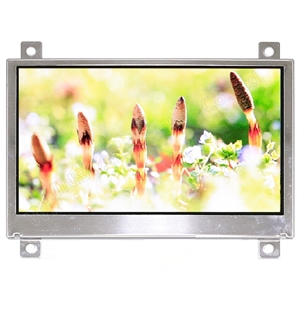

Picture of WF43-480272VD#004-FC Picture of WF43-480272VD#004-FC
TFT 4.3" 480x272 LCD Panel, Interface RGB, 500cd/m², Frame, No touch, Default HSYNC-VSYNC, B/L 50K hours lifetime

DESCRIPTION

New panel version // Previous panel version P/N WF43-480272HD#B04-FC in 'Related Product' section on the bottom page

4.3'' color TFT LCD with WQVGA 480x272 resolution. This TFT model is built in with ST7282-G4-1L driver IC. It supports 24-bit RGB interface; it’s available for Resistive Touch Screen (RTP) and Projected Capacitive Touch Screen (CTP) optional, as well as high brightness option for this model.

The supply voltage for logic (VCC) is from 3.1V to 3.5V, typical value 3.3V. It is featured with Glare surface panel, View Direction 12 o'clock, Gray scale inversion 6 o'clock, and aspect ratio 16:9, brightness 500 nits. Operating temperatures from -20℃ to +70 ℃ and storage temperatures from -30 to +80℃.



DRAWING



INTERFACE

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14~19 G1~G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22~27 B1~B6 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock
31 DISP Display on/off
32 HSYNC Horizontal sync signal; negative polarity
33 VSYNC Vertical sync signal; negative polarity
34 DE Data Enable
35 NC No connection
36 GND Power ground
37~40 NC No connection
