WF50-7201280DM#0P0-FC

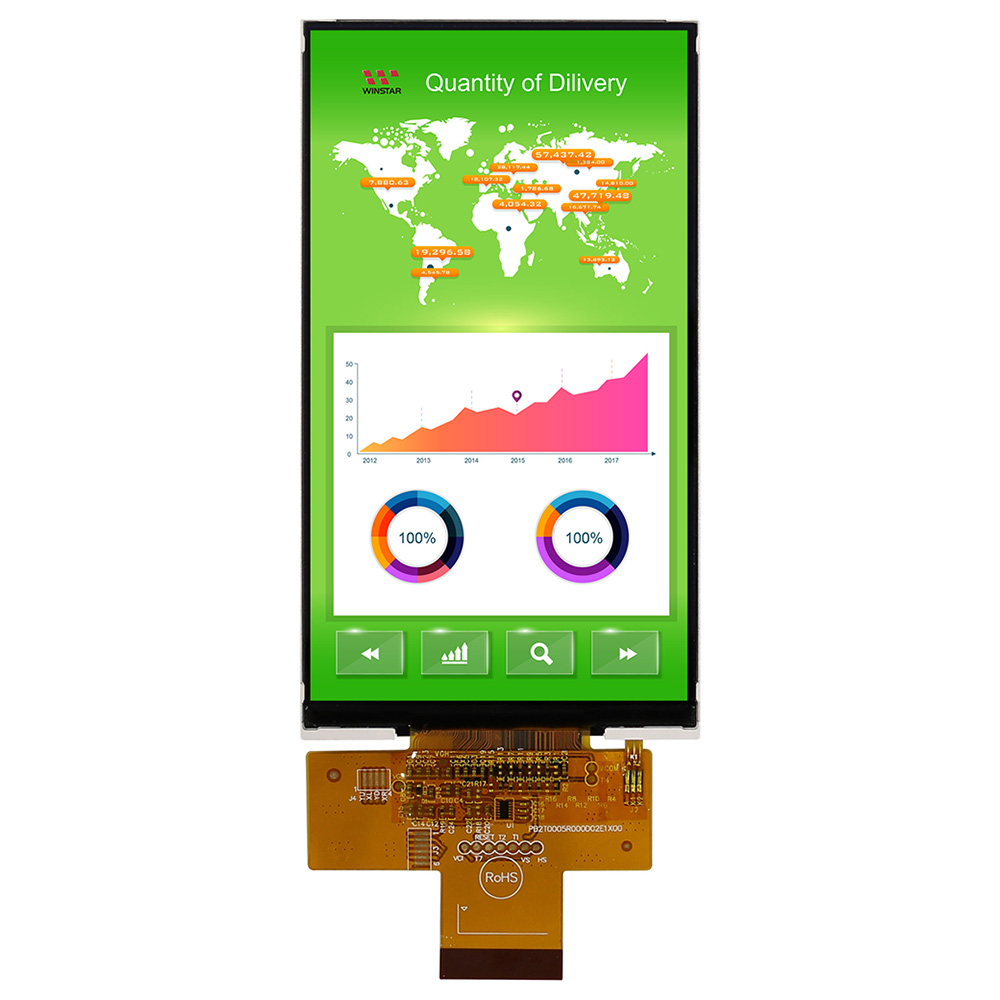

Picture of WF50-7201280DM#0P0-FC Picture of WF50-7201280DM#0P0-FC Picture of WF50-7201280DM#0P0-FC
TFT 5" 720x1280 Portrait LCD Panel, Interface MIPI DSI IC ILI9881C, 300cd/m², Wide View Angle (IPS), No touch

DESCRIPTION



5 inch IPS TFT-LCD display module, resolution 720 x1280 pixels. This 5 inch TFT-LCD module supports MIPI DSI interface and is featured with IPS panel which having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and having HD resolution, contrast ratio 800 (typical value). It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

This 5 inch MIPI LCD Display Panel is having module dimension of 66.10 x 120.4 mm and AA size of 62.1 x 110.4 mm; it integrated driver IC ILI9881C on module, power supply for analog range 2.5v to 3.6v. This TFT module is portrait mode, if you would like to use landscape mode please contact with us for more technical support.

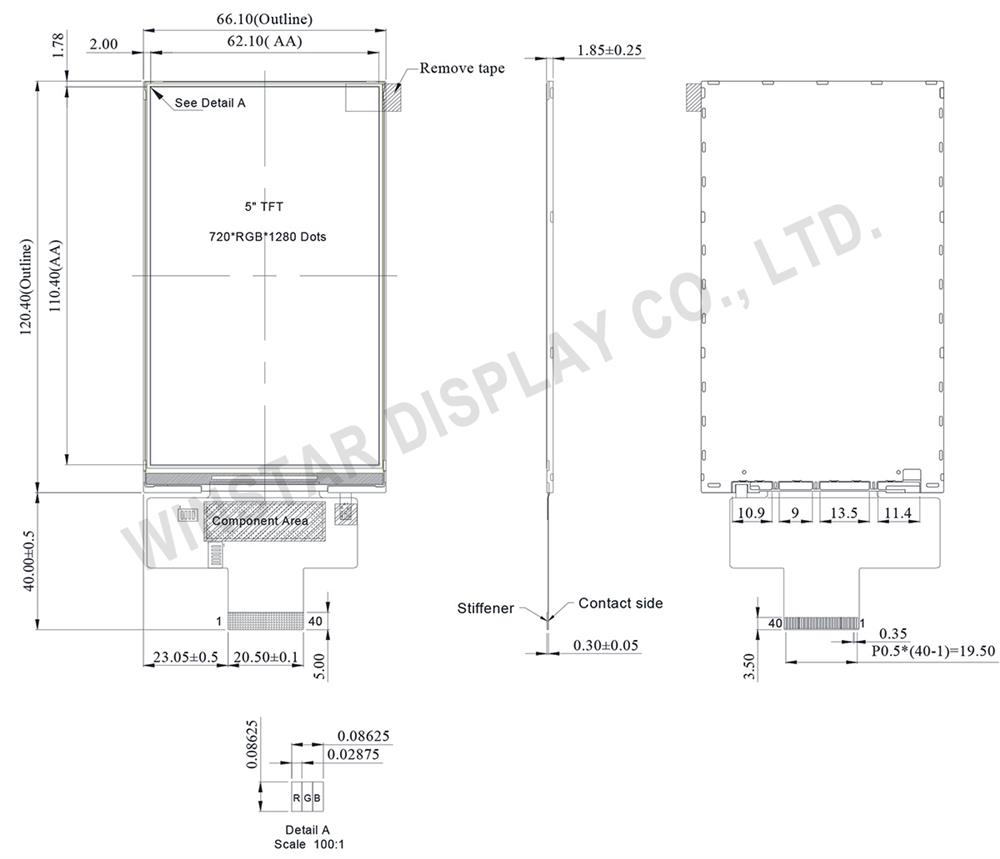

DRAWING




SPECIFICATIONS



Interface

LCM PIN Definition

PinSymbolFunction
1 NC/TP_GND No connection
2 NC/TP_SDA No connection
3 NC/TP_SCL No connection
4 NC/TP_INT No connection
5 NC/TP_RST No connection
6 NC/YU No connection
7 NC/XL No connection
8 NC/YD No connection
9 NC/XR No connection
10-11 VCI Power supply for analog circuits. Connect to an external power supply of 2.5V to 3.6V
12-13 NC No connection
14 RESET The external reset input
Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power.
Fix to VDDI level when not in use.
15 TE  Tearing effect output pin.
Leave the pin open when not in use.
16 NC No connection
17-18 GND Power ground
19-20 IOVCC Power supply for analog circuits. Connect to an external power supply of 1.65V to 3.6V
21 GND Power ground
22 D3P MIPI DSI differential data pair. (Data lane 3)
23 D3N
24 GND Power ground
25 D2P MIPI DSI differential data pair. (Data lane 2)
26 D2N
27 GND Power ground
28 CLKP MIPI DSI differential clock pair
29 CLKN
30 GND Power ground
31 D1P MIPI DSI differential data pair. (Data lane 1)
32 D1N
33 GND Power ground
34 D0P MIPI DSI differential data pair. (Data lane 0)
35 D0N
36-37 GND Power ground
38 LED+ Power for LED backlight anode
39 LED1- Power for LED1 backlight cathode
40 LED2- Power for LED2 backlight cathode



General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 720× 3(RGB) ×1280 dots
Module dimension 66.10 (W) × 120.4 (H) ×1.85 mm
Active area 62.1 (W) × 110.4 (H) mm
Dot pitch 0.08625(W) ×0.08625(H) mm
LCD type TFT, Normally Black, Transmissive
Viewing angle 80/80/80/80
Aspect Ratio 16:9
TFT Drive IC ILI9881C  or Equivalent
TFT Interface MIPI
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

1. Typical Operation Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Power supply for analog circuit VCI 2.5 3.3 3.6 V
Power supply for logic circuit IOVCC 1.65 1.8 3.6 V
Current for Driver IDD - 44   mA



2. Backlight Driving Conditions

ParameterSymbolMin.Typ.Max.Unit
LED current ILED - 40 - mA
LED voltage VLED+ 19.6 - 23.8 V
LED Life Time   30,000 - - Hr


SKU: WF50-7201280DM#0P0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€31.30
€25.00
€22.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€31.30 excl tax

DESCRIPTION



5 inch IPS TFT-LCD display module, resolution 720 x1280 pixels. This 5 inch TFT-LCD module supports MIPI DSI interface and is featured with IPS panel which having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and having HD resolution, contrast ratio 800 (typical value). It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

This 5 inch MIPI LCD Display Panel is having module dimension of 66.10 x 120.4 mm and AA size of 62.1 x 110.4 mm; it integrated driver IC ILI9881C on module, power supply for analog range 2.5v to 3.6v. This TFT module is portrait mode, if you would like to use landscape mode please contact with us for more technical support.



DRAWING




SPECIFICATIONS



Interface

LCM PIN Definition

PinSymbolFunction
1 NC/TP_GND No connection
2 NC/TP_SDA No connection
3 NC/TP_SCL No connection
4 NC/TP_INT No connection
5 NC/TP_RST No connection
6 NC/YU No connection
7 NC/XL No connection
8 NC/YD No connection
9 NC/XR No connection
10-11 VCI Power supply for analog circuits. Connect to an external power supply of 2.5V to 3.6V
12-13 NC No connection
14 RESET The external reset input
Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power.
Fix to VDDI level when not in use.
15 TE  Tearing effect output pin.
Leave the pin open when not in use.
16 NC No connection
17-18 GND Power ground
19-20 IOVCC Power supply for analog circuits. Connect to an external power supply of 1.65V to 3.6V
21 GND Power ground
22 D3P MIPI DSI differential data pair. (Data lane 3)
23 D3N
24 GND Power ground
25 D2P MIPI DSI differential data pair. (Data lane 2)
26 D2N
27 GND Power ground
28 CLKP MIPI DSI differential clock pair
29 CLKN
30 GND Power ground
31 D1P MIPI DSI differential data pair. (Data lane 1)
32 D1N
33 GND Power ground
34 D0P MIPI DSI differential data pair. (Data lane 0)
35 D0N
36-37 GND Power ground
38 LED+ Power for LED backlight anode
39 LED1- Power for LED1 backlight cathode
40 LED2- Power for LED2 backlight cathode



General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 720× 3(RGB) ×1280 dots
Module dimension 66.10 (W) × 120.4 (H) ×1.85 mm
Active area 62.1 (W) × 110.4 (H) mm
Dot pitch 0.08625(W) ×0.08625(H) mm
LCD type TFT, Normally Black, Transmissive
Viewing angle 80/80/80/80
Aspect Ratio 16:9
TFT Drive IC ILI9881C  or Equivalent
TFT Interface MIPI
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

1. Typical Operation Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Power supply for analog circuit VCI 2.5 3.3 3.6 V
Power supply for logic circuit IOVCC 1.65 1.8 3.6 V
Current for Driver IDD - 44   mA



2. Backlight Driving Conditions

ParameterSymbolMin.Typ.Max.Unit
LED current ILED - 40 - mA
LED voltage VLED+ 19.6 - 23.8 V
LED Life Time   30,000 - - Hr


Products specifications
Brand Winstar
Size 5"
Resolution 720x1280
Active Area (mm) 62.10x110.40
Color Full Color
Display Interface MIPI
Display IC ILI9881C
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5"
Resolution 720x1280
Active Area (mm) 62.10x110.40
Color Full Color
Display Interface MIPI
Display IC ILI9881C
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
