WF50-7201280DM#0SP0-FC

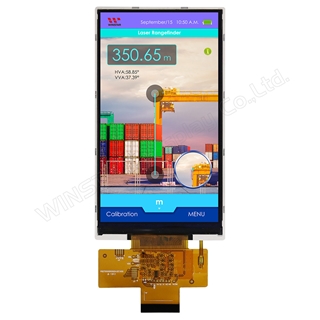

Picture of WF50-7201280DM#0SP0-FC Picture of WF50-7201280DM#0SP0-FC Picture of WF50-7201280DM#0SP0-FC
TFT 5'' 720x1280, Portrait, LCD Module, Interface MIPI DSI IC ILI9881C, High brightness 1100cd/m², Wide View Angle (IPS), No touch

DESCRIPTION



High Brightness 5 inch IPS TFT-LCD module with resolution of 720x1280 pixels. This TFT-LCD is featured with IPS panel which is having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and high brightness 1100 nits (typical value).

This WF50D 5 inch module is a portrait mode IPS TFT-LCD; this module is built in with ILI9881C driver IC; it supports MIPI interface (Mobile Industry Processor Interface) DSI (Display Serial Interface) which is having the characteristics of High Speed Data Transmission and High Speed Clock Transmission. This TFT display featured with Glare surface panel; aspect ratio 16:9, it can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

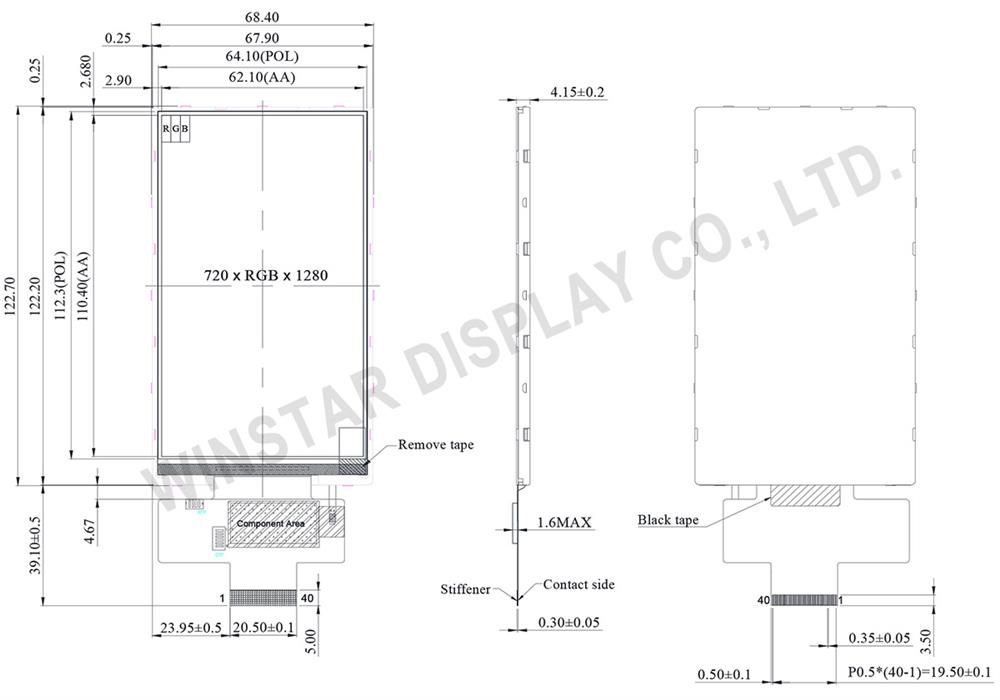

DRAWING

5" 720x1280 IPS, MIPI DSI, High Brightness TFT LCD - Winstar Display

SPECIFICATIONS



Interface

LCM PIN Definition

PinSymbolFunction
1-9 NC No connection
10-11 VCI Power supply for analog circuits. Connect to an external power supply of 2.5V to 3.6V
12-13 NC No connection
14 RESET The external reset input
Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power.
Fix to VDDI level when not in use.
15 TE  Tearing effect output pin.
Leave the pin open when not in use.
16 NC No connection
17-18 GND Power ground
19-20 IOVCC Power supply for analog circuits. Connect to an external power supply of 1.65V to 3.6V
21 GND Power ground
22 D3P MIPI DSI differential data pair. (Data lane 3)
23 D3N
24 GND Power ground
25 D2P MIPI DSI differential data pair. (Data lane 2)
26 D2N
27 GND Power ground
28 CLKP MIPI DSI differential clock pair
29 CLKN
30 GND Power ground
31 D1P MIPI DSI differential data pair. (Data lane 1)
32 D1N
33 GND Power ground
34 D0P MIPI DSI differential data pair. (Data lane 0)
35 D0N
36-37 GND Power ground
38 LED+ Power for LED backlight anode
39 LED- Power for LED backlight cathode
40 NC No connection



General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 720× 3(RGB) ×1280 dots
Module dimension 68.4 (W) × 122.7 (H) ×4.15 mm
Active area 62.1 (W) × 110.4 (H) mm
Dot pitch 0.08625(W) ×0.08625(H) mm
LCD type TFT, Normally Black, Transmissive
Viewing angle 80/80/80/80
TFT Driver IC ILI9881C or Equivalent
TFT Interface MIPI
Aspect Ratio 16:9
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Typical Operation Conditions

ItemSymbolValuesUnit
MinTypMax
Power supply for analog circuit VCI 2.5 3.3 3.6 V
Power supply for logic circuit IOVCC 1.65 1.8 3.6 V
Current for Driver IDD - 44 - mA



Backlight Driving Conditions

ParameterSymbolMin.Typ.Max.Unit
LED current ILED - 150 - mA
LED voltage VLED+ 18.2 21 23.8 V
LED Life Time   50,000 - - Hr


SKU: WF50-7201280DM#0SP0-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€36.00
€28.80
€26.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€36.00 excl tax

DESCRIPTION



High Brightness 5 inch IPS TFT-LCD module with resolution of 720x1280 pixels. This TFT-LCD is featured with IPS panel which is having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and high brightness 1100 nits (typical value).

This WF50D 5 inch module is a portrait mode IPS TFT-LCD; this module is built in with ILI9881C driver IC; it supports MIPI interface (Mobile Industry Processor Interface) DSI (Display Serial Interface) which is having the characteristics of High Speed Data Transmission and High Speed Clock Transmission. This TFT display featured with Glare surface panel; aspect ratio 16:9, it can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.



DRAWING

5" 720x1280 IPS, MIPI DSI, High Brightness TFT LCD - Winstar Display

SPECIFICATIONS



Interface

LCM PIN Definition

PinSymbolFunction
1-9 NC No connection
10-11 VCI Power supply for analog circuits. Connect to an external power supply of 2.5V to 3.6V
12-13 NC No connection
14 RESET The external reset input
Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power.
Fix to VDDI level when not in use.
15 TE  Tearing effect output pin.
Leave the pin open when not in use.
16 NC No connection
17-18 GND Power ground
19-20 IOVCC Power supply for analog circuits. Connect to an external power supply of 1.65V to 3.6V
21 GND Power ground
22 D3P MIPI DSI differential data pair. (Data lane 3)
23 D3N
24 GND Power ground
25 D2P MIPI DSI differential data pair. (Data lane 2)
26 D2N
27 GND Power ground
28 CLKP MIPI DSI differential clock pair
29 CLKN
30 GND Power ground
31 D1P MIPI DSI differential data pair. (Data lane 1)
32 D1N
33 GND Power ground
34 D0P MIPI DSI differential data pair. (Data lane 0)
35 D0N
36-37 GND Power ground
38 LED+ Power for LED backlight anode
39 LED- Power for LED backlight cathode
40 NC No connection



General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 720× 3(RGB) ×1280 dots
Module dimension 68.4 (W) × 122.7 (H) ×4.15 mm
Active area 62.1 (W) × 110.4 (H) mm
Dot pitch 0.08625(W) ×0.08625(H) mm
LCD type TFT, Normally Black, Transmissive
Viewing angle 80/80/80/80
TFT Driver IC ILI9881C or Equivalent
TFT Interface MIPI
Aspect Ratio 16:9
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Typical Operation Conditions

ItemSymbolValuesUnit
MinTypMax
Power supply for analog circuit VCI 2.5 3.3 3.6 V
Power supply for logic circuit IOVCC 1.65 1.8 3.6 V
Current for Driver IDD - 44 - mA



Backlight Driving Conditions

ParameterSymbolMin.Typ.Max.Unit
LED current ILED - 150 - mA
LED voltage VLED+ 18.2 21 23.8 V
LED Life Time   50,000 - - Hr


Products specifications
Brand Winstar
Size 5"
Resolution 720x1280
Active Area (mm) 62.10x110.40
Color Full Color
Interface MIPI
Built-in Controller ILI9881C
View Angle IPS
Brightness Range High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5"
Resolution 720x1280
Active Area (mm) 62.10x110.40
Color Full Color
Interface MIPI
Built-in Controller ILI9881C
View Angle IPS
Brightness Range High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
